Amphibia

IP66 LED moisture-proof luminaires

Amphibia

Video

Amphibia

Built to resist.

  • Mechanically resistant thanks to impact-resistant materials and compact design
  • Can be used at temperatures from -35°C to +50°C
  • PMMAplus, CHEMO or PC provide chemical resistance against chemical substances such as acids, lyes, halogens, solvents, greases and oils
  • Dirt-repellent and easy to clean thanks to the drip-edge effect, an incline over 15°,
    unique InvisiClick connection technology, smooth surfaces and rounded edges

Amphibia

Accurately fulfil visual tasks and are incredibly powerful.

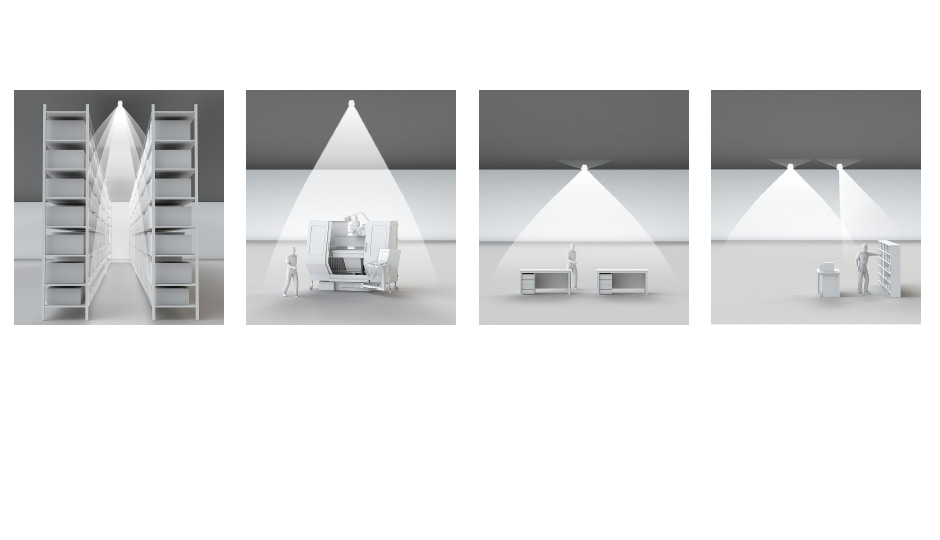

Asymmetric Beam (AB)

High vertical luminous intensity thanks to asymmetrically oriented light for improved visual comfort in rooms up to four metres high
Wide Beam (WB)

A wide-beam light distribution design evenly illuminates production and shelving areas as well as corridors – even when mounted at a low height
Medium Beam (MB)

Medium-beam emission for maximum efficiency – particularly in rooms from four to six metres high in production and logistics facilities
Narrow Beam (NB)

A narrow-beam light distribution design guides high levels of luminous intensity from up to eight metres into each shelving area and even onto the floor

Amphibia

Accurately fulfil visual tasks and are incredibly powerful.

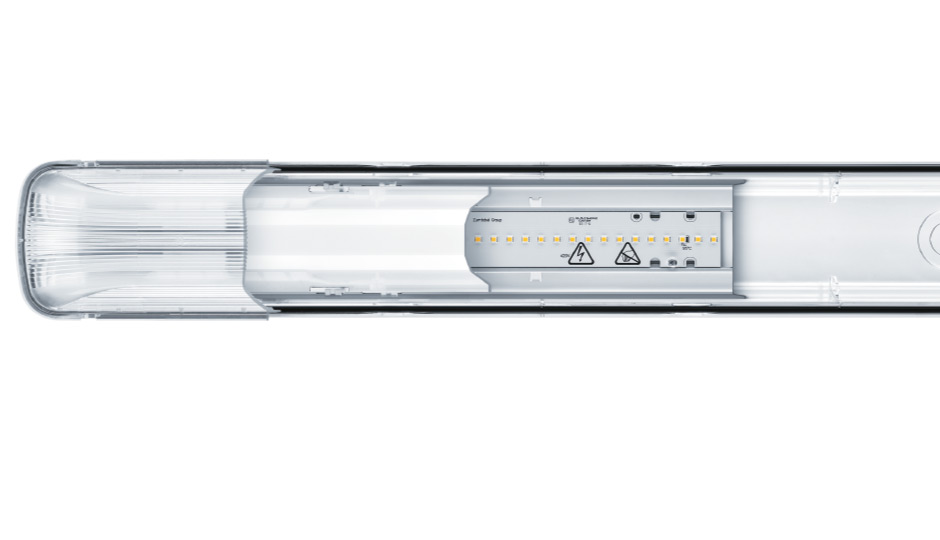

Visually functional coverage

Direct and indirect light

LED modules

Diffused primary optics

Length: 1100 mm | 1600 mm
Materials: PMMAplus | Chemo | PC
Light distribution: Narrow Beam | ­Medium Beam | Wide Beam | Asymmetric Beam
Colour temperature: 3000 K | 4000 K | 6500 ­K
Colour rendering: Ra > 80
Glare limitation: UGR < 22
Luminaire efficiency: Up to 150 lm/W
Degree of protection: IP66

Amphibia

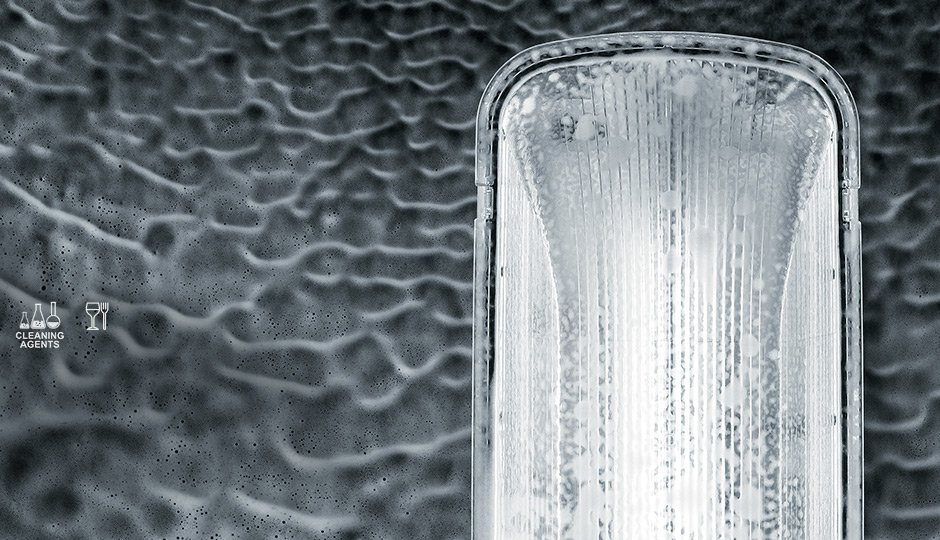

Repel any type of contamination.

Amphibia PM and Amphibia CHEMO are certified for the food industry: easy to clean and high level of chemical resistance

Amphibia

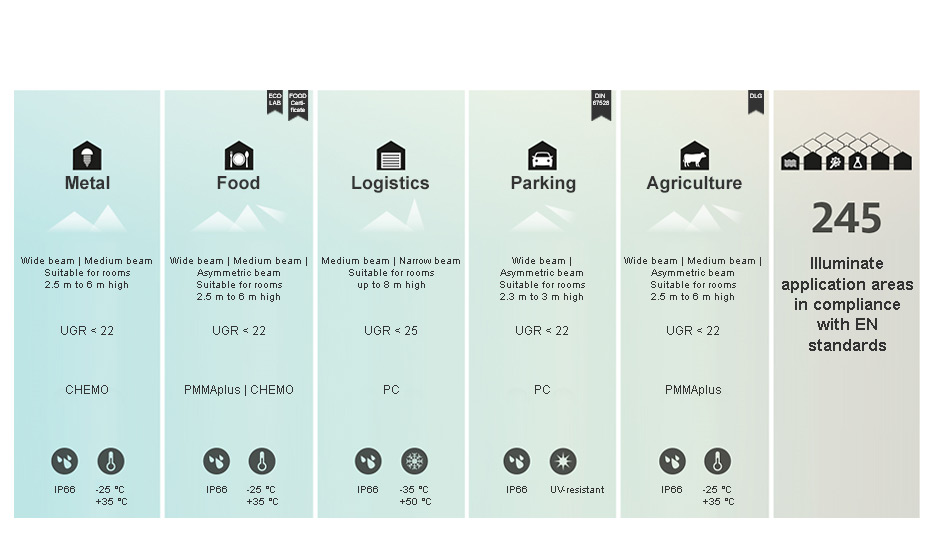

Overview of Amphibia IP66 LED moisture-proof luminaire

Amphibia

Learn more about Amphibia
+
