ONLITE PURESIGN 150

Escape Sign Luminaries

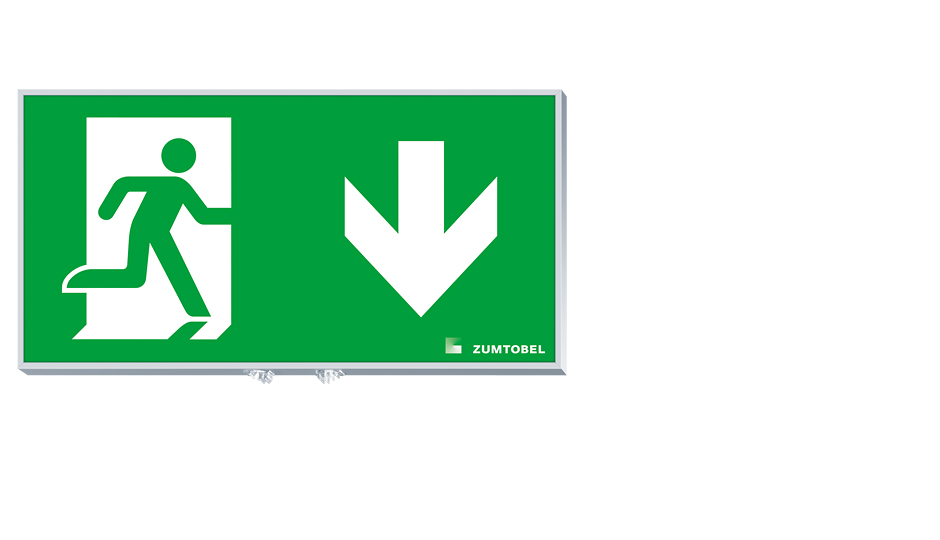

ONLITE PURESIGN 150

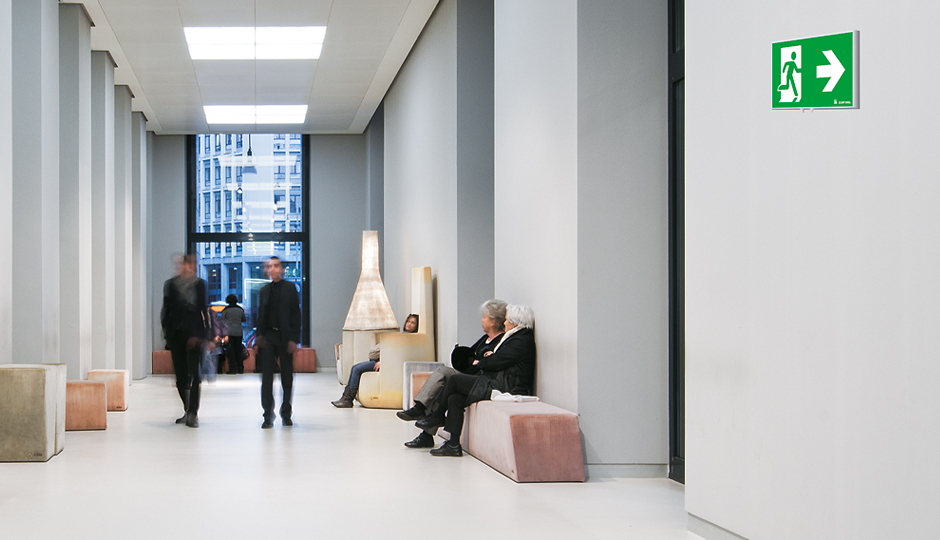

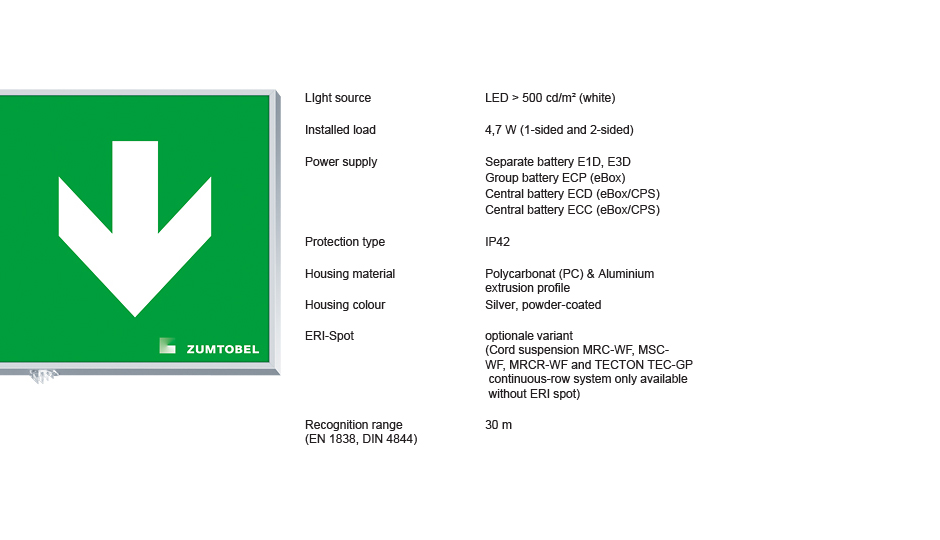

Applications

3.5 mm aluminium frames the PURESIGN 150‘s minimalist housing, thus underlining the high-quality appearance of the escape signluminaire. With a recognition range of 30 metres, modern lighting technology and elegant luminaire design are shown to their best advantage.

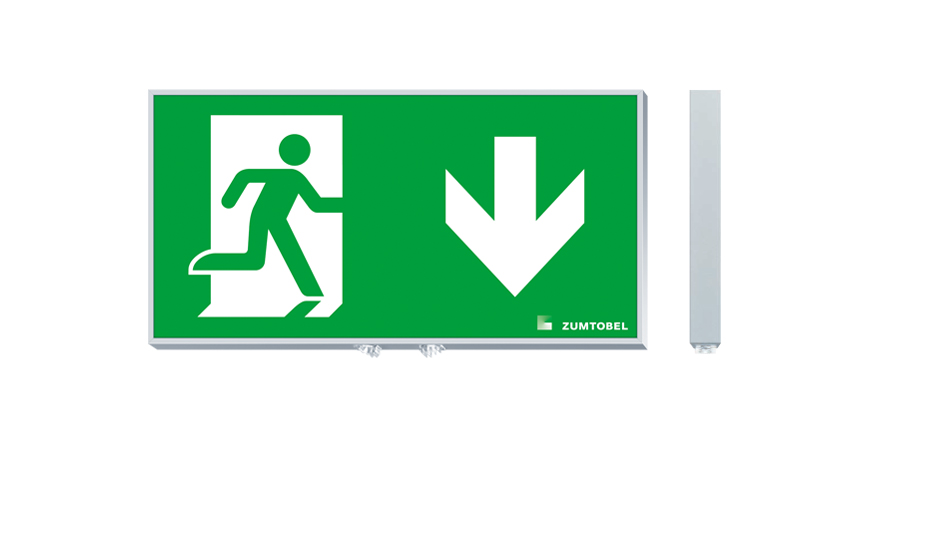

ONLITE PURESIGN 150

Design

“ The innovative interplay of lighting technology and design lies behind the design of a new lens system for escape route illumination: ERI – Escape Route Illumination. The crystalline element complies with technical lighting requirements as well as with ergonomic and aesthetic demands.”

DESIGN | EOOS

ONLITE PURESIGN 150

ONLITE is innovative lighting

ERI – Escape Route Illumination
The ERI spot is an energy-efficient LED spot which is combined with a patented lens. This lens bundles the light from 0.5 W to form incredibly powerful lighting cones which rotate easily to adapt to any building situation. Specially developed for the PURESIGN 150 and the CROSSIGN 110 and 160 luminaires, this lens also guides the light for optimum illumination of the escape route. Therefore escape sign and emergency luminaires become one product.

LED string
With just 3 W power uptake, the pictogram
is illuminated with perfect uniformity at an
average luminance level of 200 cd/m2
(500 cd/m2 for the white range), thanks
to special fibreoptic technologies.

Light guide panel
Thanks to the new optimised laser texture
used for the PURESIGN 150 light guide
panel, perfectly uniform illumination is
ensured, while the luminaire‘s energy
efficiency is increased.

LED spot
With a connected load of just 0.5 W,
the spot illuminates up to 6.5 metres
of escape route. Aligned in opposite
directions, they illuminate distances
of up to 13 metres.

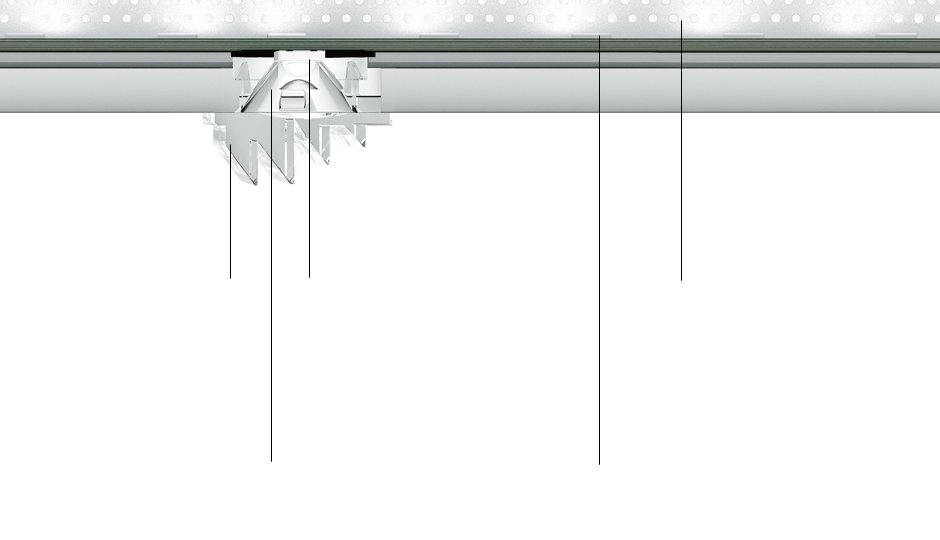

ERI lens
The snap-in fitting method means
that the lens can be securely attached
to the luminaire and manually
adjusted in 90° increments.

ERI spot
Two LED spots attached to the
underside of the CROSSIGN 110
and 160 and the PURESIGN 150
escape sign luminaires act as
emergency lighting.

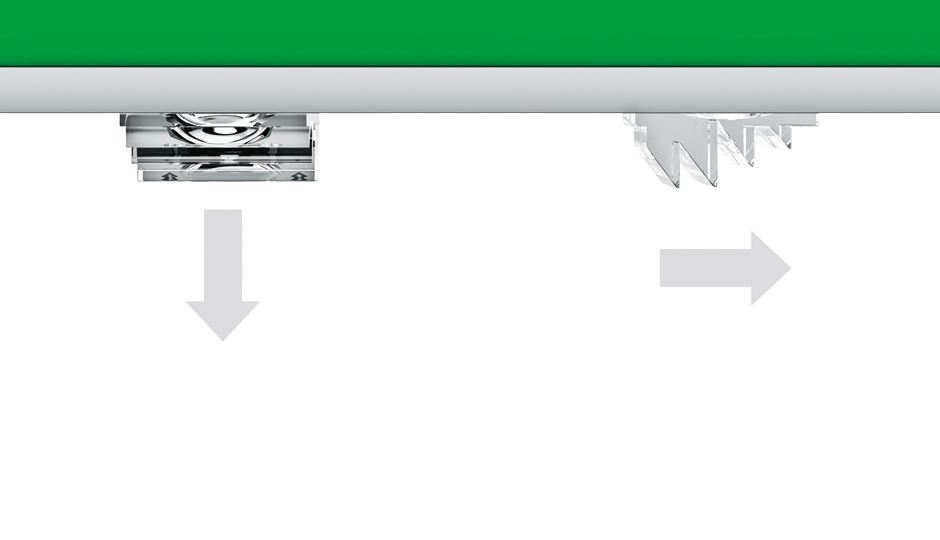

Rotatable ERI spot

Rotatable lens

ONLITE PURESIGN 150

The peak of LED technology

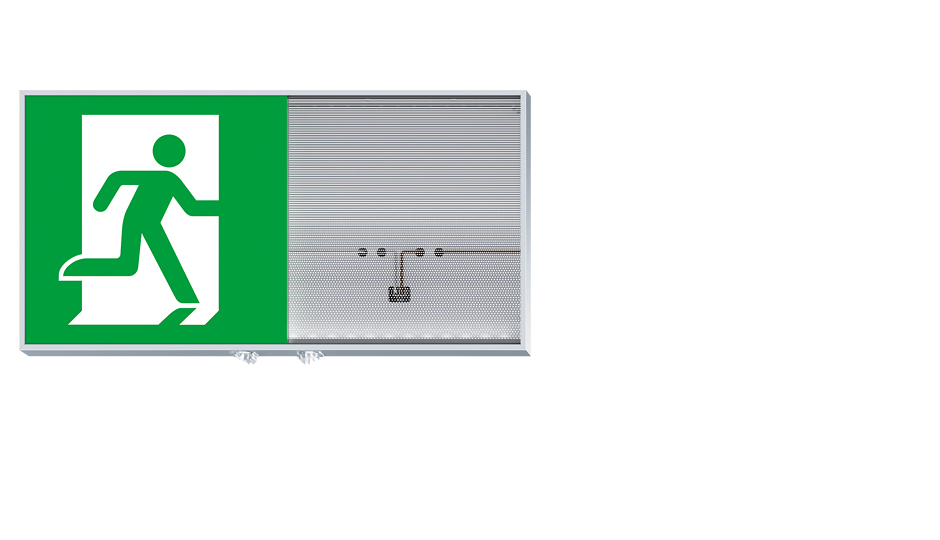

The transparent acrylic glass is now even more light-weight, while the high-quality aluminium attachment enhances the unobtrusive design. Aesthetic and functional aspects are met by the gently curving wedge design. At luminance levels of more than 500 cd/m2, the COMSIGN 150 achieves a high level of uniformity and a far higher luminance level than required. Combined with the qualities of an innovative LED luminaire – extra-long service life at constant light output – this escape sign luminaire boasts a special talent for low operating costs.

Lighting technology An energy-efficient LED string boasting a special light guide panel promises lighting innovation. An optimised laser texture increases the luminaire’s energy efficiency, ensuring perfectly uniform luminance levels.

Luminance When it comes to lighting technology, Zumtobel adheres to German standards. All escape sign luminaires comply with the required uniformity level of 0.2 as specified by DIN 4844-1 and an average luminance level of 200 cd/m2 or 500 cd/m2 for the white range. Thus, the luminaires exceed the EN 1838 values required in Europe by far.

Wall-mounting

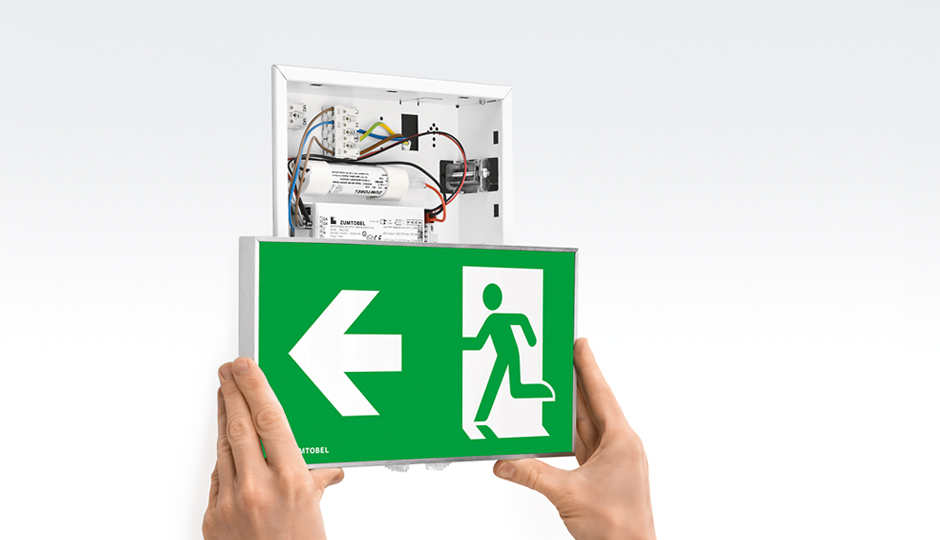

No-tool installation of escape sign luminaires brings safety and appealing design into any building: wiring is performed via standard installation terminals. The PURESIGN 150 pictogram simply snaps onto the luminaire housing.

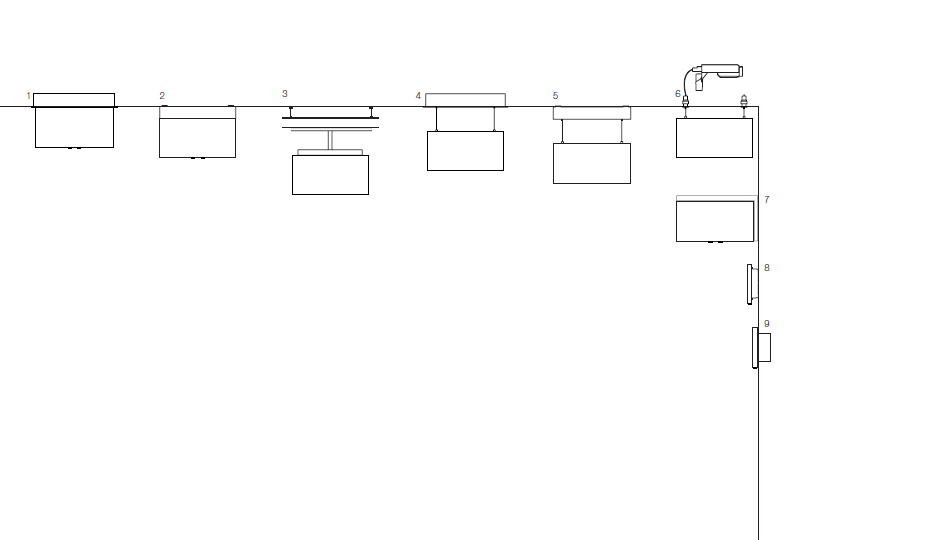

1 Ceiling recessed
2 Ceiling surface-mounted
3 TECTON continuous row
4 ESI cord suspension
5 ASI cord suspension
6 RSI cord suspension
7 Wall surface-mounted 90°
8 Wall surface-mounted 180°
9 Wall surface-mounted
