References

Crown Pool
Ipswich, UK
Owner: Ipswish Borough Council
Architect: FaulknerBrowns Architects
Lighting technology: Mott MacDonald
Electrical installations: Rotary
Photos: Redshift Photography

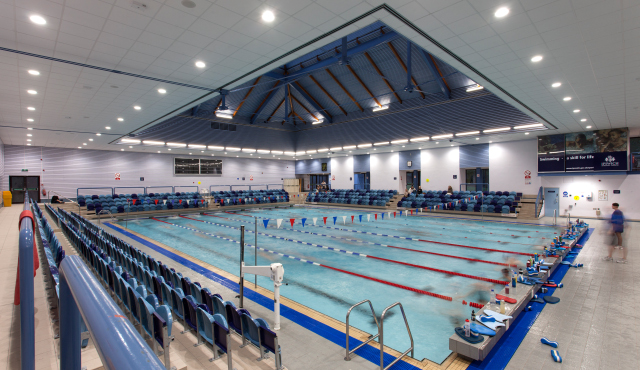

Originally built in 1984, Ipswich Council wanted to knock down and completely rebuild the Crown Pool, Ipswich. However, there was not the budget for such a large project and so it was decided to embark on a 3.5 million refurbishment.

The design brief for the lighting was to find a solution that was maintenance free, with at least 10 years service life. The plan then being that in the future the council would do as intended, knock down the building and reconstruct it.

The lighting had to meet the correct lighting levels in line with Sport England’s guide to Swimming Pools, had to be LED where possible, enhance the space and use as many of the existing fixing points as possible.

LED was one of the key features in Zumtobel’s luminaires being selected for the lighting design solution. At the time of the installation there were very few manufacturers that could offer LED luminaires to the standard of Zumtobel and with a high IP rating.

WSP are very pleased with the result, Zumtobel’s LED luminaires have enhanced and transformed the swimming pool completely.
