Good lighting at the workstation is extremely important. After all, perfectly adjusted lighting provides for greater well-being, increased productivity and better communication at the workplace. With the SFERA free-standing LED luminaire, Zumtobel sets new standards in this area - especially with respect to adjustability and individual lighting quality. Yet SFERA offers more than just perfect lighting. Its energy efficiency is impressive, too. This is made possible through a combination of SENSCONTROL III - the latest version of adaptive lighting management by Zumtobel - and the innovative SWARMCONTROL technology that is used for the first time in this free-standing luminaire.

SWARMCONTROL
More flexibility and even more personalised light - those are the most outstanding features of the pioneering SWARMCONTROL technology by Zumtobel. This technology automatically configures the luminaires into a swarm or cloud. Without any additional software. Even if the arrangement of workstations in the office changes, SWARMCONTROL provides for quick and easy adjustment to altered room layouts.
Apart from this unique feature, two functions are characteristic of SWARMCONTROL: the corridor function and the presence-based function. The first primarily provides for safety and orientation: by means of built-in presence detecttor the luminaires are dimmed up one after the other, indicating the way to the workstation. The presence-based function, on the other hand, ensures ideal lighting conditions with a mean illuminance level of up to 500 lux at the workstation, while the quantity of light can be adjusted to individual needs at any time. Additionally, depending on the available amount of daylight and artificial light, a lighting cloud is formed following a radio signal to neighbouring luminaires, ensuring an optimal, pleasant room ambience, at the same time offering more visual comfort for the various tasks in hand.

What is more, SFERA guarantees glare-free work at the computer screen or tablet PC owing to its patented MPO+ optic. With light quantities of around 6300 lumens, a low installed load of 70 W and an LED service life of up to 50,000 hours, and with its high-grade material finish, the luminaire em-phasises its high standard of efficiency and sustainability.

Facts & figures

Light distribution	Free-standing LED luminaire with separate, self-contained lighting chambers and asymmetrical direct/indirect light distribution Indirect/direct light distribution: 54:46
Optic	Transparent plexiglass cover made of PMMA with integrated MPO+ light control technology (micro-prism optic in multi-layer design) as well as defined light emission and glare control according to EN12464
Built-in control system	SENSECONTROL III SWARMCONTROL
Luminaire head dimensions	650 x 420 x 34 mm
Stand dimensions	45 x 70 mm
Height/luminaire	1,950 mm
Service life	50,000 hours at 70% luminous flux

Zumtobel. The Light.

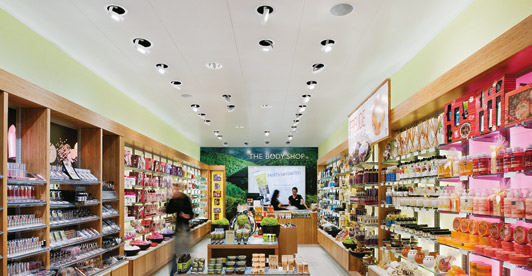

The precise, authentic lighting of goods is part of the high art of illuminating retail spaces. The requirements are very high. LED luminaires are meant to put the products in the right light authentically and at the same time gently, while they ideally ought to disappear in the shelf and to offer various colour temperatures. XPO easily meets all these demands. The smallest, delicate LED shelf lighting system offered by Zumtobel is only 7 mm high and 11 mm wide. These dimensions are an important prerequisite for XPO luminaires to fit into the shelf unnoticed. The small size and Plug&Play technology of XPO offer a maximum of flexibility: it is available for shelves of 600, 1000 and 1200 mm, providing premium-quality, authentic illumination for any product through brilliant LED light combined with a specially developed shelf lighting optic. Individ-ual lighting with different colour temperatures is especially important in shelf lighting. Therefore, XPO is available both in the Stable White version (colour temperatures 2700 K, 3000 K, 4000 K, and 5000 K) and in the Selectable White version, where the colour temperature can vary between 3000 K, 4000 K or 5000 K as required. Another strong point of the LED shelf lighting system is its quick, no-tool installation and its high efficiency of up to 72 lumens per watt. All this together with its long service life make XPO an efficient solution for the presentation of goods in supermarkets.

Facts & figures

Application	LED shelf lighting system for professional high-quality illumination of products on shelves
XPO Stable White	Versions with 2700 K, 3000 K, 4000 K and 5000 K ready-to-connect incl. white 2-pole 0.75 mm2 cable (0.7m long) and plug-in connection
XPO Selectable White	Three different colour temperatures in one single luminaire Switchable between 2700 K, 3000 K, 4000 K and 5000 K ready-to-connect incl. white 2-pole 0.75 mm2 cable (0.7m long) and plug-in connection
Lengths	545 mm, 923 mm and 1112 mm
Service life	50,000h at 80% luminous flux



Zumtobel. The Light.

The DISCUS LED spotlight range has been a big success ever since its introduction and has been very popular thanks to its flexibility, design language and innovative features. Now, with DISCUS evolution, Zumtobel continues this success story. The LED spotlight range is convincing on account of the perfect adjustment between light source and optic, making the lines of the spotlight appear even more advanced and minimalistic. The spot's innovative thermal management using a passive cooling system is an integral part of the design. The design of DISCUS evolution was created by the internationally famous Vienna-based design studio "EOOS"; it was developed such that the four different lens optics - Spot, Floor, Wideflood and Oval, with colour temperatures of 3000 K to 4000 K - can be replaced quickly without any tools. Apart from this flexibility, the directly dimmable spotlight is characterised by its excellent colour rendering and its low energy consumption. DISCUS evolution is available with a black or white housing, and it is suitable both to be installed on tracks and for recessed installation.

Facts & figures

Application	Ideal for premium accent lighting, especially in retail spaces and presentation areas
Mains voltage	220–240 V / 50/60 Hz
Colour temperature	3000 K (LED830/930: warm) or 4000 K (LED840: intermediate)
Colour rendering	Ra 82 (LED830/840) / Ra 92 (LED930)
Colour constancy	MacAdam 3 (1/16 – 2/16 ANSI Bin)
Luminous flux of luminaire	1800–2400 lm
Luminaire efficiency	56-71 lm/W
Service life	50,000 hours at 70% luminous flux
Colour	mat black or white microstructure paint

Zumtobel. The Light.

For Zumtobel, collaborating with architects and designers has always been a top priority; this is why the Austrian luminaire manufacturer is involved this year again as a sponsor of the 13th Venice Architecture Biennale. The Austrian luminaire manufacturer has been a partner of the most important international architecture exhibition since 2002. David Chipperfield, director of the 2012 Architecture Biennale, appreciates this support: “Contributions by companies like Zumtobel are of great importance when implementing an Architecture Biennale that meets our high demands in terms of quality. Thanks to our sponsors, we were able to consider all the high-quality projects submitted for presentation, and can now show the effects of modern architecture in society.”

Moreover, Zumtobel has supported two contributions to this year's Biennale. Jointly with Reflexion, a Zurich-based lighting design studio, Swiss architect Peter Märkli has staged an exhibition displaying sculptures by the artists Hans Josephsohn and Alberto Giacometti. In the process, Märkli considered it of particular importance for the sculptures to become part of the room. For this purpose, conventional exhibition lighting was not sufficient, but an integral spatial concept was required. Zumtobel luminaires in white and blue allow individual colour mixes and adjustment of the lighting scenes, so that the three-dimensionality of the walls and sculptures can be emphasised to special effect.

A French project, too, was implemented using lights by Zumtobel. The Wilmotte Foundation invites visitors to discover the “FondacodegliAngeli” and presents the exhibition “Re-Generation Venezia”.

With its commitment to the Venice Architecture Biennale, the Austrian company emphasises once again the importance it attaches to addressing the topics of light, architecture and art to boost innovation and creativity.


Zumtobel. The Light.

Zumtobel presents trend-setting lighting solutions for various application areas in 18 Light Forums and Light Centres around the world. In Chalfont St. Peter, visitors can learn about innovative lighting application techniques and the inno-vative luminaires that aid intelligent lighting designs, through application spaces, known as ‘App Spaces’. Besides personalised advice, emphasis is always placed on experiencing light as a medium.

First daylight showroom
The Zumtobel brand is inextricably associated with aesthetically attractive de-sign and a clear stylistic idiom. This purist design flare is evident at the Chalfont St. Peter Light Centre where Zumtobel’s full lighting design concepts and capa-bilities are featured. Highly atmospheric centre-stage settings and selective ac-cent lighting, allow visitors to experience the ways in which light can be used to create the right atmosphere and ideal lighting conditions in different situations. The emphasis is on presenting lighting solutions using the latest cutting-edge LED technology which combine energy saving with lighting comfort.

The design concept of the Light Centre demonstrates Zumtobel's lighting exper-tise and knowledge of the uses of light. It also includes a vast array of distinctive features including, the first daylight demonstration in which visitors can have first-hand experience of the interaction between daylight and artificial lighting.

Focusing on customers' needs
Austrian lighting manufacturer Zumtobel has operated its sales organisation in the UK for 26 years. Having been fortunate enough to provide lighting solutions to some of the most exquisite and iconic buildings all over the UK, Zumtobel aspires to drive innovation, market education and best practice lighting.
"The Light Centre is based on an application cube concept which allows us to provide hands-on presentations and demonstrations of our lighting design ideas to visitors for every application, including, offices, retail, education, health & care, art & culture and façades & architecture. Authentic staging makes it pos-sible to experience light and its effects in a completely unique way. This enables us to cater to the specific requirements of our customers and demonstrate al-ternative solutions", comments Steve Shackleton, Zumtobel Lighting’s Market-ing Director, describing this new facility and its capabilities. “Our new Light Cen-tre will help drive our concepts, innovations and education even further still. The Light Centre is a direct response to growing business and the need for extra space to demonstrate our lighting capabilities and our ability to deliver personal-ised customer advice.” he explains.


Zumtobel. The Light.

The “Bon Accord and St Nicholas Shopping Centre” in the Scottish town of Aberdeen boasts 70,000 square metres of floor space and is a popular destination for numerous keen shoppers. Since its extensive refurbishment, this shopping paradise is also one of the first malls in the United Kingdom to feature an LED-only lighting solution so it is also bound to attract fans of integral lighting solutions. Colin Kennedy, Project Surveying Manager with the client Land Securities acting for owners Scottish Retail Property Limited Partnership explains: “We wanted to explore how the use of LED technology could improve the lighting levels, while also complementing the new finishes in the centre. We are extremely pleased with the result. We have lower maintenance costs, and we also have a balance between daylight and artificial light to give optimum energy consumption.”

Wallace Whittle who carried out an energy appraisal comparing the existing lighting to a lighting scheme utilising the Zumtobel LED luminaire proposal found that an annual saving of approximately 117’000 kW hrs, with a predicted annual carbon reduction of 49’000 kg CO2 could be realised. “The Zumtobel lighting solution proved to be the ideal fit for our vision for this project in order to deliver environmental improvements, enhance the shopping experience and reduce energy consumption.” explains Steve Bruce Senior Electrical Engineer at Wallace Whittle.

Tailor-made customer solutions
The clinching factor in Zumtobel winning the contract was the fact that the company was able to present a coordinated concept that embraced both architecture and lighting – and combined this with state-of-the-art standards such as using LED luminaires and lighting management systems. Intensive discussions between architects, electrical designers and Zumtobel ensured optimum integration into the existing design and made sure that the LED technology inside the luminaires delivers the best possible lighting comfort. The development team met on-site in the United Kingdom several times in order to take a close look at the luminaires.

Graeme Nicholls from Gareth Hoskins Architects' explains: “We were pleased to work in close collaboration with Zumtobel to design a series of bespoke circular LED lights. Through a series of workshops, the design intent was discussed and a number of prototype fittings were developed in order to ensure that the final product exactly met the technical and aesthetic aspirations.” Thanks to square LED luminaires from the Careena product range, which were precisely adapted to fit the 481 mm round cut-outs in the shopping centre's ceiling, Zumtobel managed to pull off a unique luminaire look. These advanced LED luminaires also save considerable energy thanks to their low installed load and Zumtobel's specially developed MPO+ micro-pyramidal optic. The plain, uncluttered stylistic idiom of the Careena custom solution creates a timeless vista.

Lighting solution specialist Zumtobel developed another custom solution for the Resclite LED spots. Usually, these LED spots are used to guide visitors safely away from danger in the event of an emergency. In Aberdeen, however, these small LED power packages are also used to provide highlighting in everyday use. Specially tailored to fit a ceiling panel size of 31 mm, these round spots brighten up the shopping centre's roof with brilliant lighting accents, thereby creating the impression of a starry sky. As well as these two custom solutions, various standard Zumtobel LED products are also used in public areas. Light lines and downlights, for instance, provide varied ambient lighting. They make it easier for people to find their way around and facilitate shopping trips in a cosy, bright ambience.

Quality and service in a single package
Zumtobel was again able to successfully put its expertise in deploying high lighting quality and exploiting its effect on people to the test in Aberdeen. Implementing an efficient concept for saving energy ultimately makes this lighting solution a unique combination. The client opted to use Zumtobel's Luxmate Professional lighting management system in order to make the best possible use of daylight and artificial lighting. This intelligent system makes it possible to dim and control the LED luminaires efficiently and even program lighting scenes that mimic natural changes over the course of the day. This way, the right lighting ensemble is always available at the press of a button during opening hours, when cleaning takes place, and also at night.

Zumtobel. The Light



Client:	Scottish Retail Property Limited Partnership, a joint venture between Land Securities and British Land
Architects:	Gareth Hoskins Architects, Glasgow/UK
Electrical consultants and installations:	Wallace Whittle, Aberdeen/UK
Lighting solution:	» Careena LED luminaires – custom solution » Panos Infinity LED downlights » Slotlight LED RGB light lines   Decoline light lines » Micros downlights » Resclite emergency lighting – custom solution » Hedera façade luminaires » Lighting control: Luxmate Professional

Copyright: www.nealsmith.com

For the pilot project, one of the two corridors remained unchanged: the conventional fluorescent lamps were switched off by presence detectors as soon as there had been no one in the corridor for more than ten minutes. The other corridor was fitted with innovative Slotlight LED luminaires by Zumtobel. In addition, the switch-off delay of the presence detectors was reduced down to one minute in several stages. In the case of LEDs, frequent switching or dimming has no adverse effects on lighting comfort and causes no wear. The measured power consumption of the LED solution with optimised presence monitoring was 81% less than that of comparable luminaires fitted with fluorescent lamps.

“The result of the pilot project shows that LED technology combined with appropriate lighting control allows for huge potential savings and is by far superior to current standard corridor lighting concepts that are also deemed to be energy-efficient”, explains Daniel Cathomen, Zumtobel Marketing Manager Switzerland, further adding: “A combination of appropriate light sources and a finely tuned lighting management system therefore creates innovative, energy-optimised, future-proof lighting solutions that are highly acceptable to users and have short payback periods.”

Zumtobel. The Light.

This summer, we will witness athletic excellence in London. Zumtobel, the luminaire manufacturer, will be represented in the City on the River Thames with an excellent performance as well. In collaboration with artist Monica Bonvicini, Zumtobel developed a huge permanent lighting sculpture titled “RUN”, which is on display at the London Olympic Park in front of the Handball Arena.

RUN comprises three nine-metre tall letters, each weighing about 15 tonnes, which have been installed slightly offset, one behind the other, on the elevated plaza in front of the new Copper Box Handball Arena. The giant letters consist of mirror-coated glass panels mounted on steel structures. Hence, in daylight, the entire surface produces a mirror effect, and these ever-changing reflections of its immediate surroundings – the sky, the park, people, buildings – make the sculpture virtually dissolve, so that it seems to merge with its environment in a surreal way.  When night falls, the sculpture's appearance changes: thanks to LED luminaires installed inside, along the outlines of the letters, and controlled by light sensors, the luminous letters clearly stand out against their environment. Convex mirrors installed on the inside and invisible in daylight transform the individual LED strings into a scintillating mass, which conveys to the structure an unexpectedly strong, yet light-weight spatial presence. Indeed, both the “elegantly psychedelic effect at night” (Monica Bonvicini) and the dissolution due to the mirror effect by day form a striking contrast to the sheer size and massiveness of the letters.


In order to implement Bonvicini's artwork, Zumtobel collaborated very closely with the artist, making every effort to turn her vision of the installation into reality. Completion of this unique task was facilitated by the years of experience and know-how Zumtobel has managed to obtain in the field of LED technology. Moreover, the luminaire manufacturer has also been involved in the area of art and culture for years. In addition to unparalleled lighting solutions developed for museums and exhibitions, Zumtobel has, over the years, collaborated with renowned designers, architects and artist such as Zaha Hadid, Daniel Libeskind, Olafur Eliasson and Hani Rashid within the context of the Zumtobel Masterpieces range. The aim of these collaborations, and also of Monica Bonvicini's “RUN” installation, is to put lighting ideas into practice and create unique luminous works of art.

RUN fact box:

Artwork:	Monica Bonvicini, Berlin
Light design:	Studio Dinnebier, Berlin
Steel/glass production:	Sedak, Gersthofen
Lighting solution:	Zumtobel High-power LEDs in plastic housing, IP 68, light colour: 7500 K, diameter: 16 mm, 8464 units in total

Zumtobel. The Light.

With effect from this week, the Zumtobel “Map of Light” app includes more than 1000 accessible projects, and a new version upgraded for iPhone and iPad is available in the App Store. The free app has been optimised for iPad 3, offering new services to users thanks to new functions. What is new is that Zumtobel's product catalogue including technical data for the entire product range is now available on the “Map of Light”.

On the “Map of Light” created by luminaire manufacturer Zumtobel, users can now easily and quickly access more than 1000 lighting solutions across the globe. All the information and pictures pertaining to any project can be seen at a glance, allowing users to search according to application area or project location. In this way, the “Map of Light” provides fascinating insights into the variety of lighting solutions and concepts available. At the same time, it is a very useful tool for lighting designers and architects: they can access current reference projects at any time, plus the products used for these and a picture gallery. In addition to the new link to the Zumtobel product catalogue, information on current Zumtobel product innovations can be found under Highlights. The application is available free of charge in the App Store at: » http://itunes.apple.com/gb/app/map-of-light/id397335153?mt=8

More than 1000 projects provide users with insights into the world of light
Project no. 1000 on the “Map of Light” is a special highlight: at the McLaren show-room in Vienna, Zumtobel demonstrates how light is used to set a special brand centre stage while meeting the highest requirements in terms of a sustainable lighting solution. The lighting concept provides the requisite degree of flexibility to adjust the lighting situation to the various exhibition situations and car models presented. In addition, trendsetting LED luminaires have been installed in order to increase energy efficiency while ensuring optimum lighting quality.

Zumtobel. The Light.

Many eyes will be fixed on Baku, the capital of Azerbaijan, on May 26, because this year Baku is hosting the 57th Eurovision Song Contest, Europe's largest music competition. Even without the Song Contest, Baku is an impressive city of 2 million inhabitants. The most populous and largest city in the entire Caucasus region is a transport hub as well as an economic and cultural centre that is home to various universities, research institutes, theatres and museums. No wonder the Marriott hotel chain has just opened a new 5-star hotel in Baku.

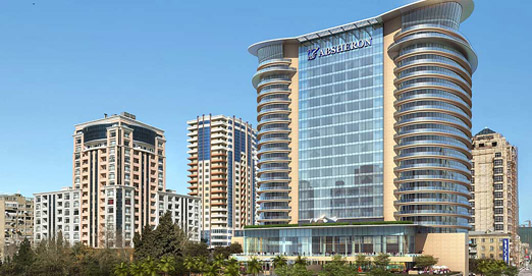

The JW Marriott Absheron Baku Hotel is located close to the city centre between futuristic office buildings and the historic old town. It offers its guests extremely high levels of comfort that meet every imaginable up-to-the-minute standard. This includes the lighting concept in the hotel rooms, which was implemented by luminaire manufacturer Zumtobel. Zumtobel won the contract to equip all 243 rooms and suites with its advanced ZBOX lighting management system.

ZBOX – Making it easy to control light
Peter Roos, Head of Strategic Global Networks at Zumtobel, explains: "With ZBOX we are able to supply hotel operators with a multifunctional, flexible, energy-saving lighting control system that also provides hotel guests with individual lighting scenes that they can recall at the press of a button.  The actual guest decides which lighting ambience he or she wants and can adjust it to suit his or her needs. Zumtobel supplies the ZBOX lighting management system as an all-inclusive package – each complete with four innovative Circle control points and a central control unit. The system is fully pre-addressed – and comes with connectors for dimming, presence detection, door lock systems or blinds control.

Guests enjoy a care-free stay
The ZBOX's convenient features and benefits are obvious:   guests in the contemporarily styled rooms of the JW Marriott Hotel are faced with intuitive control points rather than a bewilderingly large number of switches. Roughly the same size as a standard on/off switch, these Circle control points fulfil all the basic functions of a sophisticated control panel. To call up any of three programmed lighting scene, all guests have to do is press a button with the respective icon on it. The ZBOX then conjures up perfect lighting for applying make-up, watching TV, reading or taking a bath. Various lighting scenes can be generated equally straightforwardly and dynamically. "Our guests reap the benefit of the great flexibility and functionality of Zumtobel lighting as well as intuitive operation. This gives them a unique level of convenience that allows them to adjust the lighting themselves to suit their respective needs" points out Petra Maluck, International Project Management Marriott International Inc..

The central control unit, the ZBOX controller, is tuned to both the guest's lighting needs and the hotel operator's requirements: connectors for hotel card switches and door locking systems ensure a pleasant, inviting lighting scene when the guest enters the room. The ability to integrate the ZBOX into a modern building management system makes an intelligent contribution towards energy-efficient, low-cost operation of the hotel. Using ZBOX makes it possible to obtain energy savings of up to 25 %  – not to mention greater lighting convenience for hotel guests.

Zumtobel. The Light.

Fact box:

Client:	Marriott International Inc.
General contractor:	Strabag, Vienna/A
Developer:	PASHA Construction, Baku/AZ
Architecture:	ReardonSmith Architects, London/UK
Interior design:	WA International, Dubai/AE
Electrical consultants:	EC Harris
Lighting solution:	Zumtobel ZBOX lighting management system LUXMATE LRA2500 automation processor and LM-GO graphical visualisation

The continuous dynamic development of optical semiconductor technology offers undreamt-of possibilities for the interaction between people and art objects. However, it also provides new challenges and opportunities for museum and lighting experts, and not only from a technical point of view. Lately, the discussion regarding LED technology has been dominated by two issues in particular: what chances do LED spotlights offer to present exhibits in the right light and, thus, to make a positive contribution to the perceptive world of visitors to museums? Are light-emitting diodes indeed a revolution in terms of damage pre¬vention to exhibits, or do they perhaps deprive future generations of their cultural heritage? Thanks to comprehensive research and studies, lighting expert Zumtobel has found answers to precisely these questions that are based on sound scientific knowledge.

Picasso brings it to light – the high quality of LEDs in museums
Zumtobel has commissioned the Lighting Tech¬nology Department of Darmstadt University of Technology to conduct a survey that deals with this very issue. Evaluation parameters of particular relevance for art objects were especially important. These include both the electrical and photometric properties of luminaires, including light colour, spectral radiation distribution, colour rendering, illuminance, potential damage, the electrical installed load and, above all, the uniformity with which the painting is illuminated, since this is a measure of the quality of presentation. Two spotlights (LED and halogen), an LED arc used for indirect lighting and an LED module were analysed in the laboratory. Following measurement, the damage potential of the luminaires according to CIE 157:2004  was evaluated. A field test should then confirm the determined values specifically for practical application.

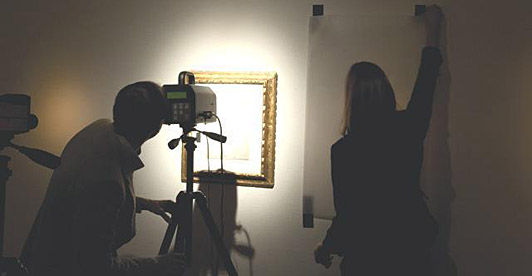

For the field test, the study managers installed two different light sources, one after the other, directed onto Pablo Picasso’s drawing “Harlequin” from 1916. One spot was equipped with conventional tungsten halogen lamp technology, the other with LED light sources. In the LED luminaire, light colour and luminous intensity were set via a control system from 2700 K to 6500 K, or from warm white to cool white (Tunable White). The analysis of the halogen spotlight is also based on its dimmed and non-dimmed state. For the “Harlequin”, Picasso used a thin, lightly wavy paper attached to a heavy carrier paper. Since this technique, in terms of final composition, is most similar to rag paper, the characteristics of this type of paper were used by the study managers as a reference for evaluating the damage caused.

The results of the field study confirm Zumtobel's research work in the field of LED lighting. Basically, with comparable colour temperatures, potential damage caused by the LED spotlight in the laboratory is significantly lower; and this applies to all materials specified in CIE 157:2004 such as rag paper, textiles, water colours on paper rag as well as oil colours on canvas and newspaper. Due to the lower potential damage caused by LED spotlights, possible radiation duration with most materials can be increased by around 50 % and with newspaper by as much as 300 %. The measure¬ments performed on the Picasso drawing also confirmed these results. Only with higher colour tempera¬tures (from approximately 3250 K) do radiation times become comparable to the halogen lighting at 2050 K.

•    The dimmed halogen spotlight generates white light with very low colour temperature, comparable to candlelight. Current supply must therefore be increased to create brilliant white light. The high illuminance generated in this way not only increased the potential damage, but also has a negative impact on the energy balance.

•    By dimming the halogen spotlight to the required illuminance level, the light colour is shifted from 2900 K to 2000 K. This value impairs the stability of perception. With the LED spotlight, on the other hand, the illuminance level can be adjusted without the light colour being im¬paired.

•    When it comes to colour rendering, both halogen and LED spotlights demonstrate very good values of Ra > 90. Only at higher colour temperatures such as 6500 K (cool white) is colour rendering reduced to Ra 84 in the LED spotlight. Colours are thus rendered similarly well with both lamp types.

•    The evaluation of the illuminance levels has shown that the halogen luminaire illuminating the “Harlequin” shows irregularities that are also revealed to observers. This criterion must, however, not be overvalued, because the uniform presentation of a painting is not always aimed at. Instead, an exhibit can be properly presented with intentionally implemented bright/dark zones as well.

•    Input of electrical energy with the LED spotlight is around 50 % less than with a halogen spotlight; in the undimmed range it is as much as 30 %, which may amount to decisive potential energy savings.

The benefits of light-emitting diodes, such as long service life combined with low maintenance, high energy savings potential as well as impressive and simultaneously gentle presentation of exhibits, are undisputed. Another important aspect, however, comes to the fore because of the Zumtobel study: thanks to innovative technologies, it is now possible to enhance the effect of art objects on people. LED light enhances the power of expression, since not only luminance levels but also light colours can be finely tuned to specific exhibits according to colour or material – by pressing a button and without the need to replace lamps.

A symbiosis of light and art – the Tunable White revolution
A painting with many fine grades of red will shine with its saturated colours and contrasts, but only if the light source as well as the selection and positioning of luminaires are perfectly matched to the prevailing ambient conditions. To achieve the best quality of perception, a light spectrum should be used for an art object that is characterised mainly by the long-wave, reddish spectral range, as light is able to reproduce those colours especially intensively and precisely that exist in its own spectrum.

When an art object is illuminated, the artist's colour selection, the location of creation and the lighting conditions prevailing at the time of creation (daylight or artificial lighting) must also be considered. These factors sometimes require completely different light colours and spectral distributions. This variation depth can, however, never be fully met by only one luminaire and lamp type. In practice though, often one spotlight or lamp type is used for an entire art gallery as a compromise solution with mean intermediate white light colour and very good colour rendering. A pioneering alternative in this regard has come from semiconductor technology. A widely defined, finely tuned light spectrum can be individually adjusted to each object via LED luminaires with identical design – at the press of a button, with outstanding colour rendering and with optimum luminance of the exhibit. With modifiable white light, i.e. variations in light intensities and colours (Tunable White), works of art with mainly bluish or reddish colours or different materials can be equivalently presented without the need to exchange the lamps or spotlights.

In this way, a museum is ideally equipped for the future: when exhibitions are changed, the light is quickly adapted to new art works according to the wishes of the artist or curator and with relatively low maintenance effort. The lighting can be finely tuned in a way that was technically not feasible until recently. Using modifiable white light emitted by the same LED lighting solution, it is now possible to implement this quality of perception and equivalent display of art in a manner that can only be described in one word: perfection.

Incomparable: today's LED and yesterday's LED
However, another problem has resulted from the high development speed of semiconductor light sources: studies continue to be published that are based on obsolete technological standards, thus causing further uncertainty regarding colour rendering and potential damage with respect to LEDs.

Warm white LEDs demonstrate the lowest peak in the low-wavelength, high-energy range. They therefore have a lower damage factor than LEDs with a high blue component (cool white). LEDs with warm white light quality have recently progressed rapidly in terms of development with colour rendering and efficiency. In addition, spotlights incorporating Tunable White technology provide new approaches: luminaires with adjustable white light colours ranging from low to high Kelvin values, i.e. warm white to cool white, can be precisely adapted to exhibits in fine gradations along the Planckian curve. The lowest Kelvin value (warm white) is set in the case of highly sensitive works of art, without any losses in terms of the luminaires' very good colour rendering. Lighting concepts incorporating Tunable White thus offer a variety of options for perfect adjustment to the art object and the needs of human perception.

Adequate exposure to light – responsibility for the future
When discussing the potential damaging effects of light, in addition to spectral distribution, there are also other decisive factors of influence regarding lighting intensity and duration of exposure. For this purpose, Zumtobel provides also innovative solutions involving intelligent lighting management systems.
Lighting management ensures that exhibits are exposed to perfect light: on the one hand, by providing luminance levels that are necessary to ensure a good perception process and, on the other hand, by incorporating presence detectors that monitor the presence of visitors. Switch-on and switch-off times can be defined for specific times of the day. Management of blinds and daylight sensors ensures that only as much daylight is permitted to enter as is absolutely necessary, resulting in an ideal balance between architecture, human well-being, exhibits and energy costs.

Moreover, LED technology is the perfect solution to be integrated in lighting management systems. The semiconductors are not impacted by frequent switch-on and switch-off processes e.g. due to presence detection, or by frequent dimming. The desired lighting level is immediately available without annoying start-up times. In addition, undesired colour shifting or modification of the quality of colour rendering as may occur during dimming with conventional technology are not applicable with semiconductors, as is unrestrictedly confirmed by the study results of Darmstadt University of Technology.

This also means that the use of lighting management systems is an even more important topic to discuss than the subject of potential damage from LED lighting, for these systems help to save valuable energy without any limitations in terms of visual or emotional quality of light. Environmentally conscious art enjoyment and gentle exposure to light are thus harmoniously combined. In this way, museums that use resources sparingly and handle cultural assets gently can take responsibility in two ways, ensuring an authentic presentation of art works by implementing integral lighting concepts.

Zumtobel. The Light.

Image  2: ©TU Darmstadt, Image 3: ©Philipp Schoenborn Muenchen

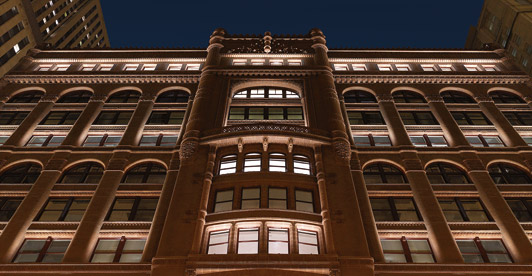

The façade illumination of the Rookery Building in Chicago developed by the New York lighting design studio Office for Visual Interaction (OVI) and implemented by Zumtobel was awarded a prize as the best lighting solution. Because it is architecturally unique, the office building has been listed in the National Register of Historic Places since 1970. It is not just its interior, designed by Frank Lloyd Wright, that hides unique, fascinating architectural features. The façade of the high-rise, which is decorated with ornate stucco, is another aspect of this architectural jewel. The innovative and now prize-winning lighting system illuminating the building's unique masonry allows the Rookery to develop an elegant, low-key identity.
