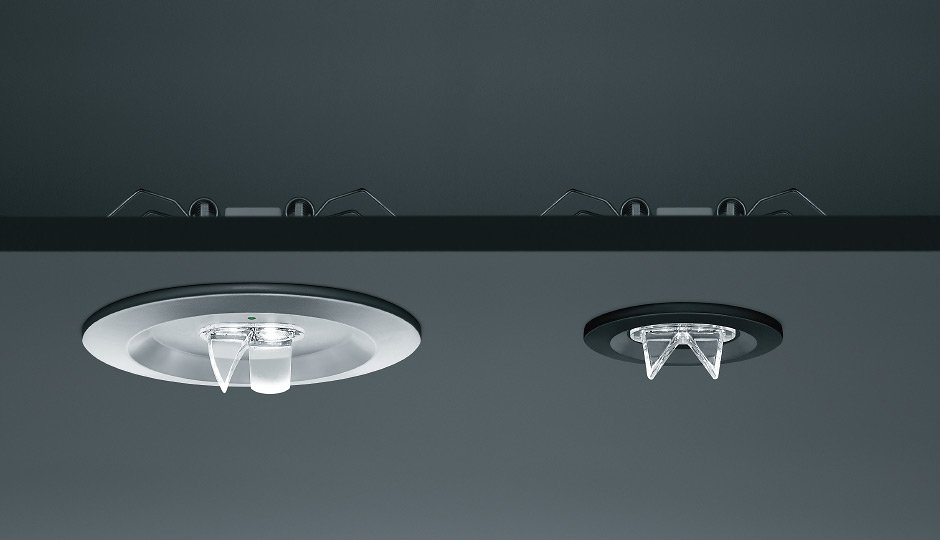

RESCLITE PRO

Safety luminaire

  • More reliable and intelligent than ever before
  • Innovative lenses fulfil all the requirements of emergency escape lighting
  • Combines minimalist design with the highest technical standards

RESCLITE PRO

Video

RESCLITE PRO

Safety luminaire

escape high ceilings (HC)

  • Ideal for high rooms such as shelf aisles in the logistics sector
  • Can be mounted at heights
    up to 26 m
  • Available as an individual surface-mounted luminaire or module that simply clicks into the TECTON and TRINOS continuous-row lighting systems
  • Maximum luminaire spacing per light cone of up to 23 m  > 1 lux
escape wall

  • Perfect for illuminating escape routes in stairwells or high rooms
  • Recessed luminaire can optionally be converted into square version thanks to small frame
  • Mounting: available as an attractive IP40 version in addition to the luminaire with IP65 rating
  • Maximum luminaire spacing per light cone of up to 15.4 m  > 1 lux
escape

  • Unique lens technology
  • Illuminates very long escape routes with few light points
  • New crystal-clear lenses prevent any escape route luminaires from being subjected to disruptive reflectors
  • Maximum luminaire spacing per light cone of up to 36 m * > 1 lux
    (* HP version)
escape 90°

  • 90-degree lens guides light around corners
  • One luminaire illuminates two corridors running at 90 degrees to one another
  • Ideal for use in shop and retail premises to illuminate side aisles and shelf aisles at the same time
  • Maximum luminaire spacing per light cone of up to 8.4 m * > 1 lux (*HP version)

RESCLITE PRO

Safety luminaire

antipanic high ceilings (HC)

  • Large rooms extensively illuminated – even with luminaires at a height of 33 m
  • Ideal solution for industrial production facilities and shopping centres
  • Maximum luminaire spacing of up to 20 m  > 0.5 lux
antipanic

  • Square light distribution system guides light into every corner
  • Simplified planning and perfect room lighting
  • High-performance (HP) options allow users to achieve higher levels of luminous intensity or increase the distances between luminaires
  • Large surface areas are covered by just a few light points
  • Maximum luminaire spacing of up to 20 m * > 0.5 lux (*HP version)

RESCLITE PRO

Safety luminaire

spot

  • Powerful lens providing an asymmetric distribution of light draws attention to life-saving equipment in cases of emergency, such as fire extinguishers and defibrillators
  • 5-lux of vertical luminous intensity directly on an item
    (in accordance with EN 1838)
  • Light from a mounting height of up to 6 m (with HP version)
  • Can be integrated into TECTON and TRINOS rails
  • Thanks to rotatable lighting heads, it is possible to angle safety luminaires very precisely

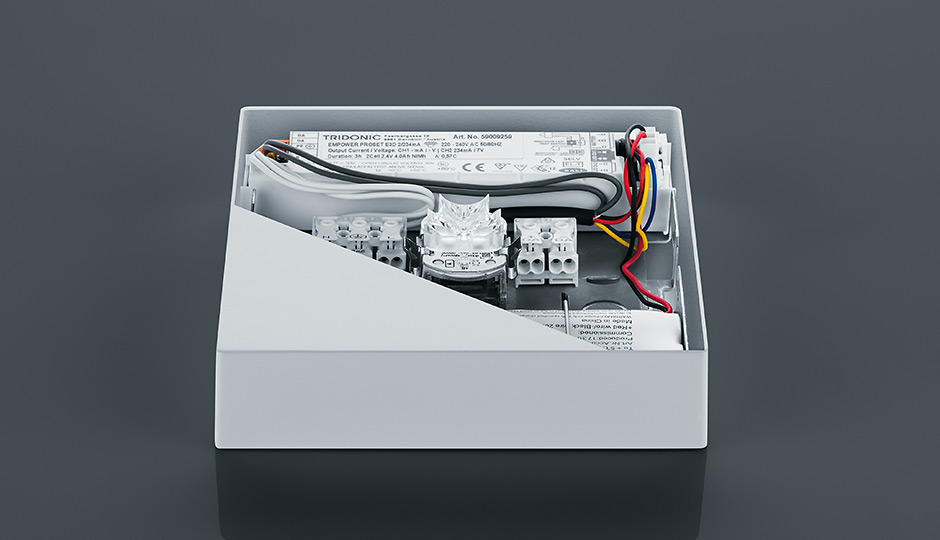

RESCLITE PRO

Technology and innovation

5 Cooling element

6 Battery

7 Aluminium die-casting housing

1 Communication interface

2 PROset technology

3 LED module

4 Status LED

RESCLITE PRO

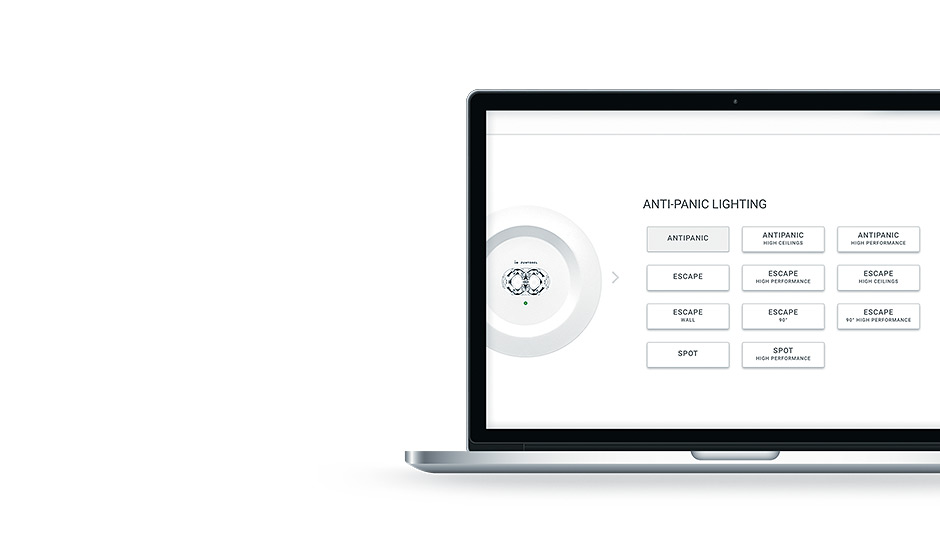

Making emergency lighting planning as easy as child's play with the RESCLITE PRO app

  • Just three clicks displays the maximum mounting distances between two luminaires and the wall in accordance with the mounting height selected
  • Further information available via the article number displayed (linked to the datasheet)
  • Available as a homepage for laptops and as an app for iOS and Android smartphones

» resclitewebapp.zumtobel.com
