DIAMO

LED downlight and LED spotlight

Brilliant lighting quality
for creating powerful accents.

DIAMO

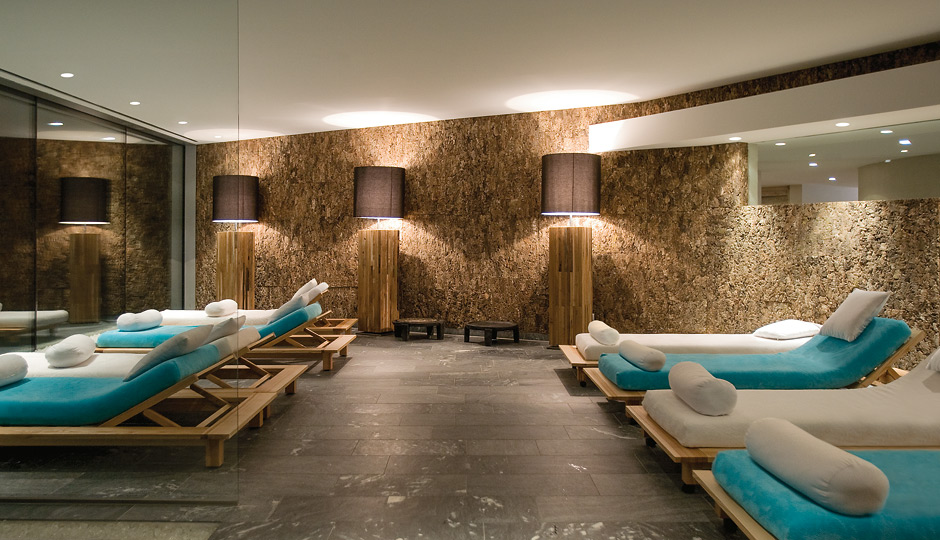

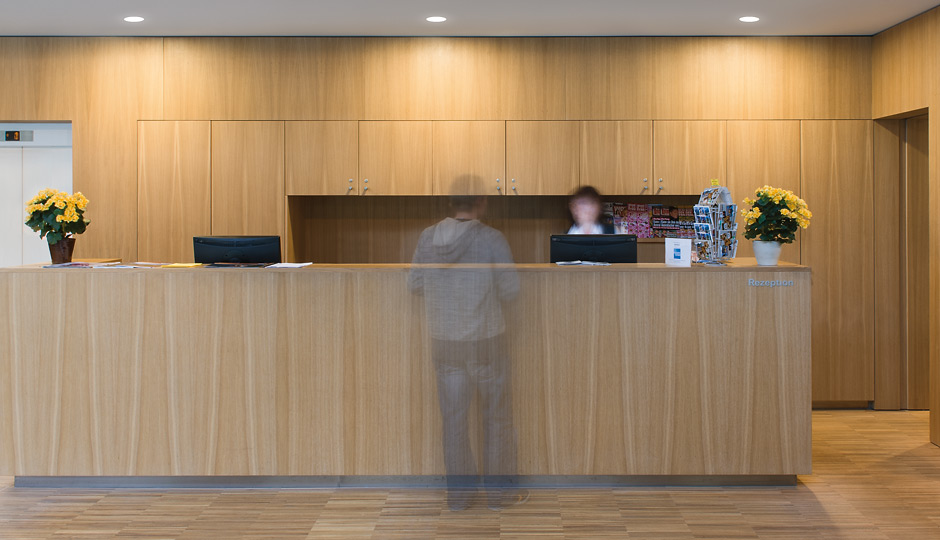

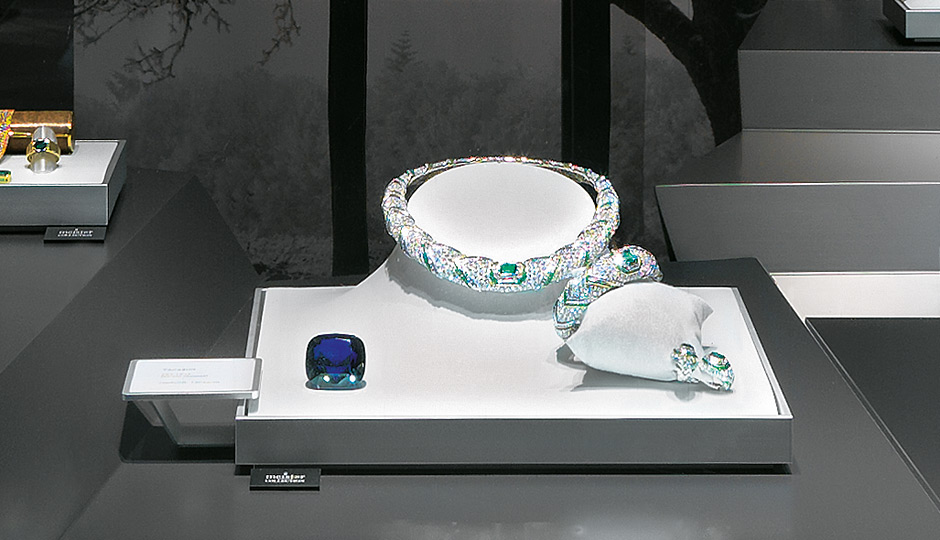

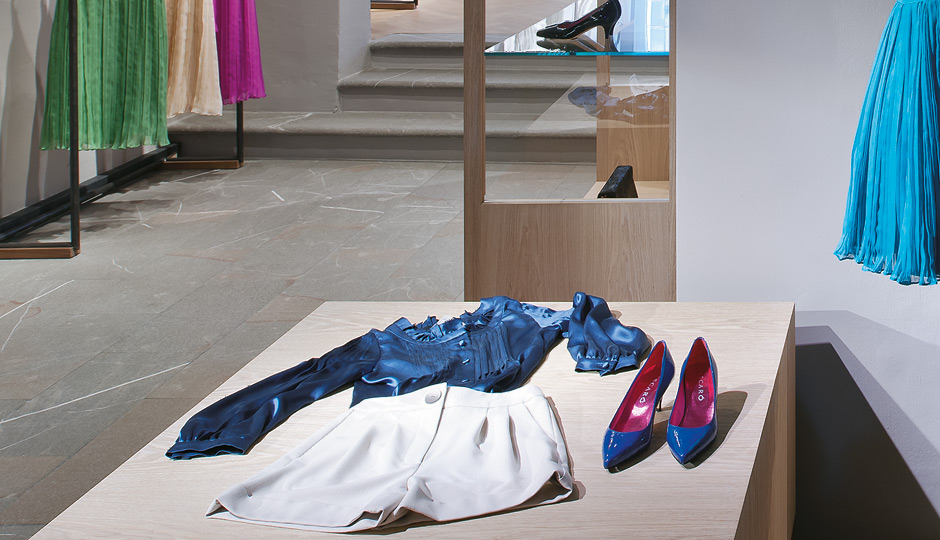

Application

DIAMO

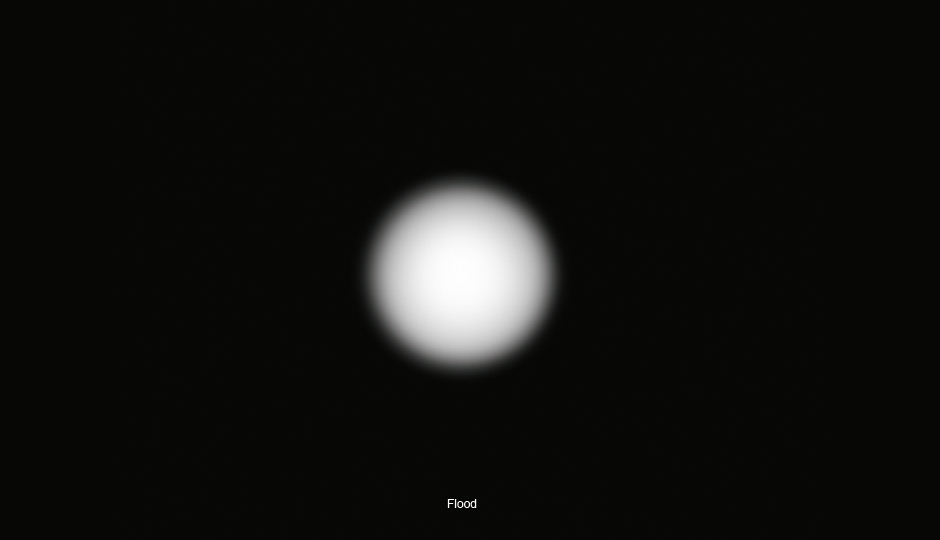

Radiation angles

DIAMO

The essence of brilliant lighting

DIAMO, which incorporates unique lighting technology developed ­jointly with experts at Bartenbach GmbH, based in Aldrans near Innsbruck, is a highlight in the world of miniaturised recessed luminaires and spotlights: intelligently designed reflectors ensure accurate light distribution by the high-power and efficient LED modules, without any spill light, as well as perfect glare control. The result: high-intensity pinpoint accent lighting with excellent lighting quality and maximum brilliance. DIAMO combines all these features in an extremely compact design, thus providing for new creative freedom in numerous indoor ­applications. DIAMO is a real diamond among LED downlights, ­enhancing both prestigious and functional areas in offices, setting goods in shops and retail areas brilliantly and powerfully centre stage, as it is ideally suited for use in hotels – from reception areas to hotel rooms. DIAMO covers this wealth of lighting tasks as a downlight with four different distribution characteristics according to the respective ­application, and as a spotlight. DIAMO is available in intermediate or warm light colours as well as switchable and dimmable models.

DIAMO

Precision within minimum space

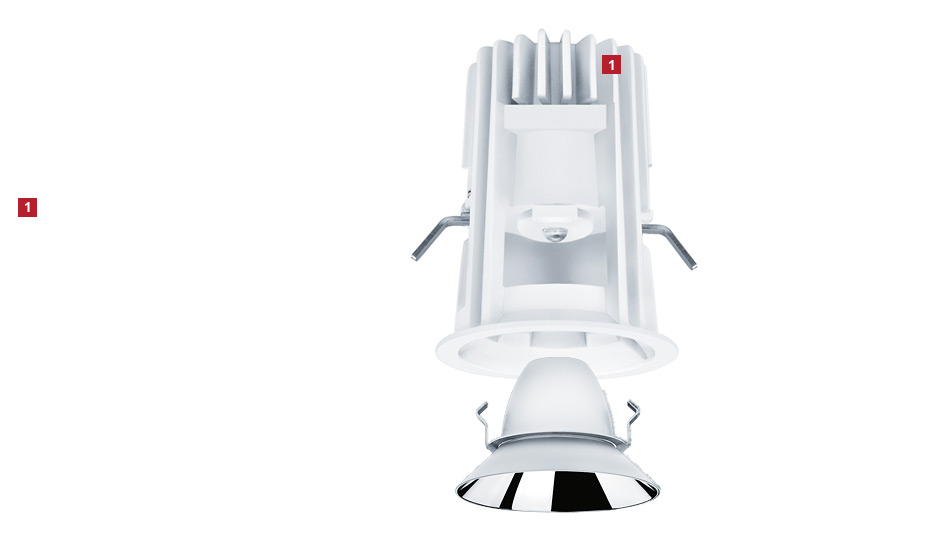

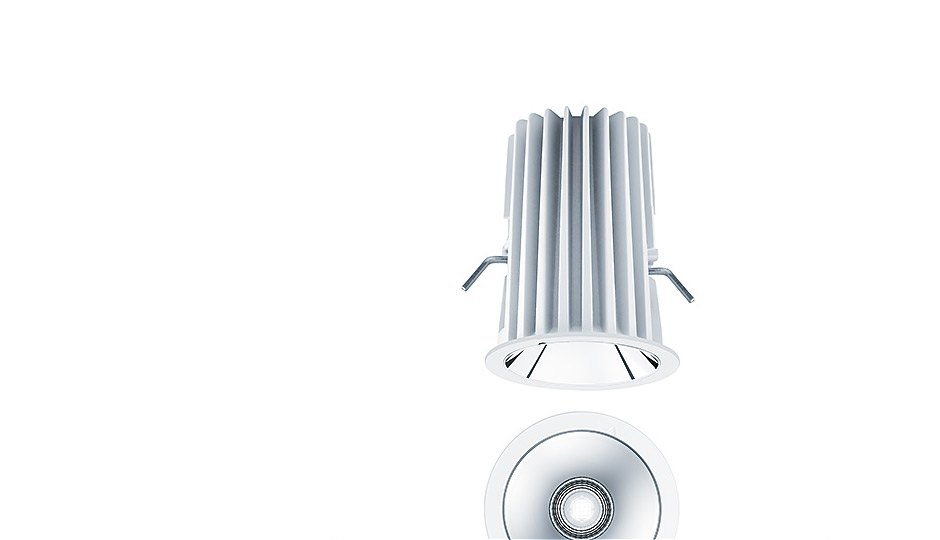

          The high-quality housing made of die-cast aluminium ensures perfect thermal management, accommodating high-performance LED modules within an extremely compact space.

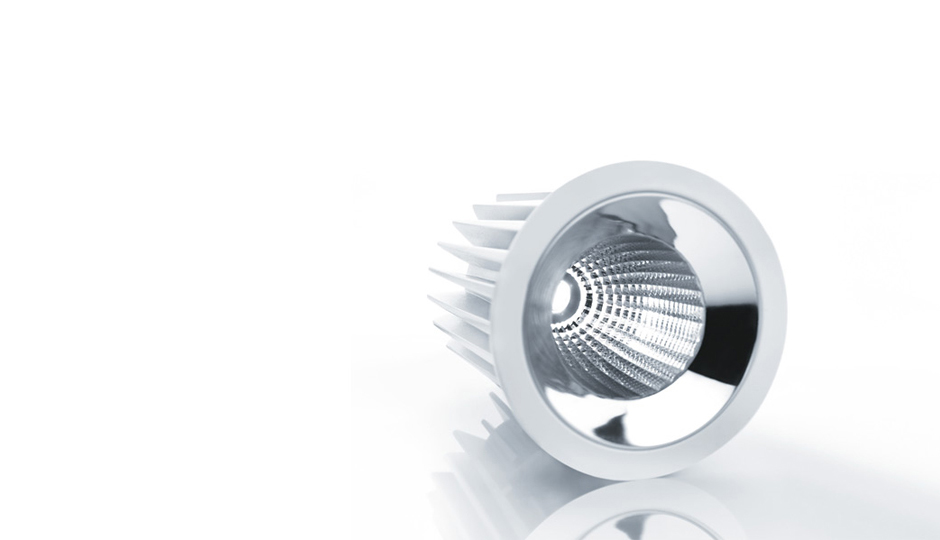

          Intelligently designed reflectors made of highest-grade aluminium distribute the light with unique precision, providing maximum brilliance.
          Extremely powerful LED modules produce a luminous flux of up to 1250 lumens – for pinpoint accent lighting and superior lighting quality.

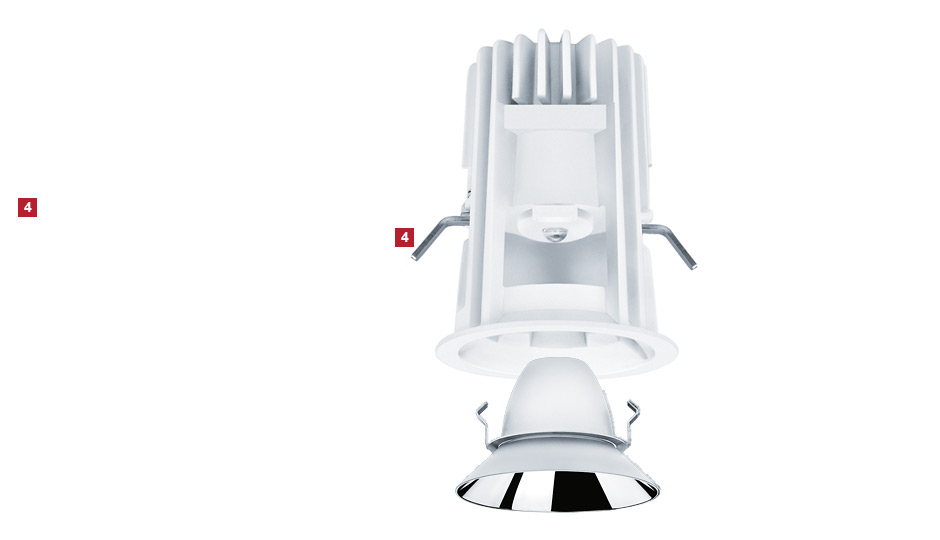

          The downlight can be easily and securely installed in the ceiling, using two concealed screw fixing mechanisms.
Housing

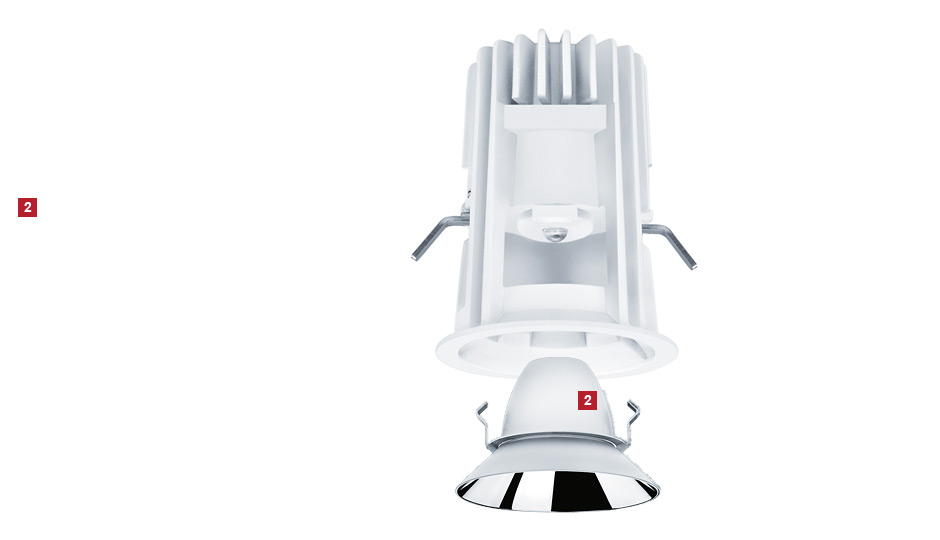

Reflectors

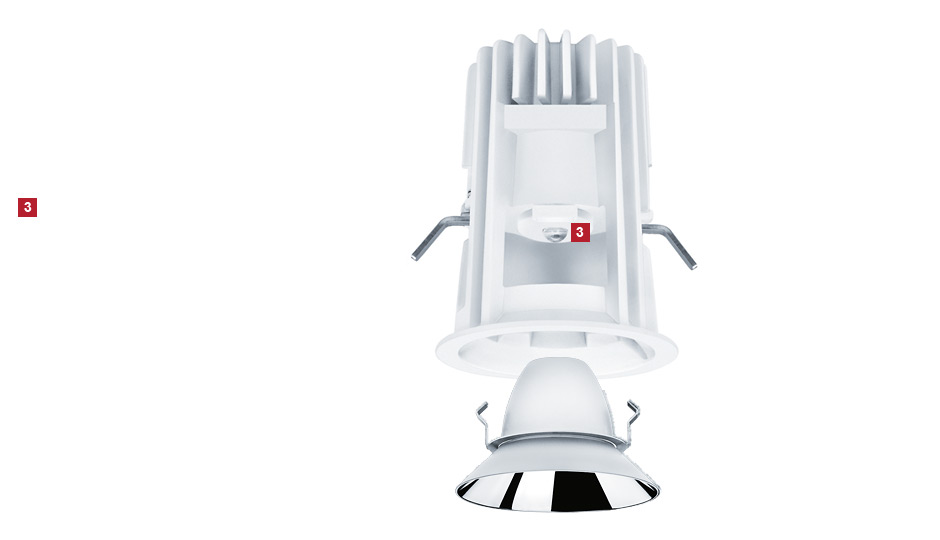

LED modules
Installed

DIAMO

Luminous flux of luminaire Downlight (nominal)
at colour temperatures of 2700 K and 3000 K
1100 lm and 1600 lm
wallwasher: 800 lm and 1200 lm
at a colour temperature of 4000 K
1200 lm and 1900 lm
wallwasher: 900 lm and 1400 lm

Luminous flux of luminaire Spotlight (nominal)
at a colour temperature of 2700 K
flood: 1500 lm
at a colour temperature of 3000 and 4000 K
flood: 1600 lm

Luminaire efficiency
up to 90 lm/W

Installation options
Recessed into ceiling
3-phase track

System output
Downlight: LED 15 W and LED 25 W
Spotlight: LED 20 W

Colour temperature
2700 K and 3000 K (warm)
4000 K (intermediate)

Colour rendering
Ra 90

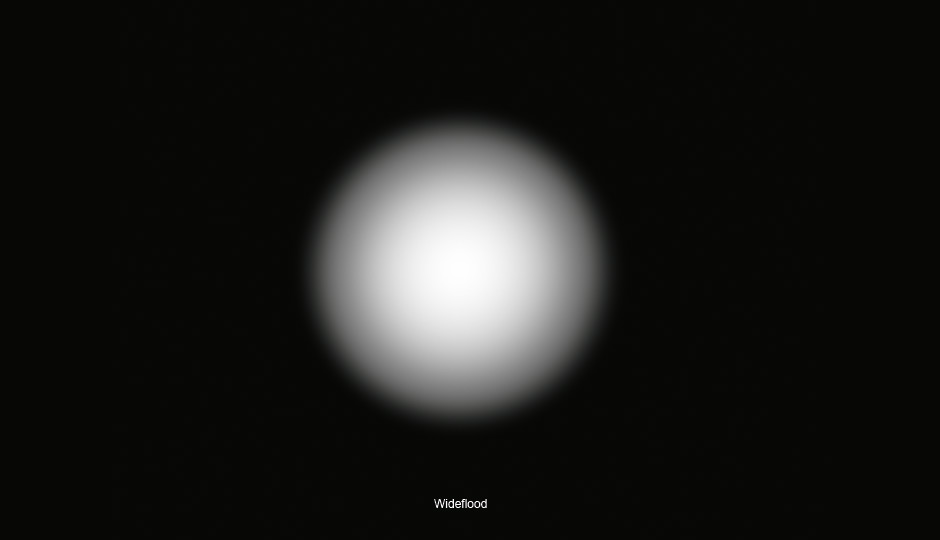

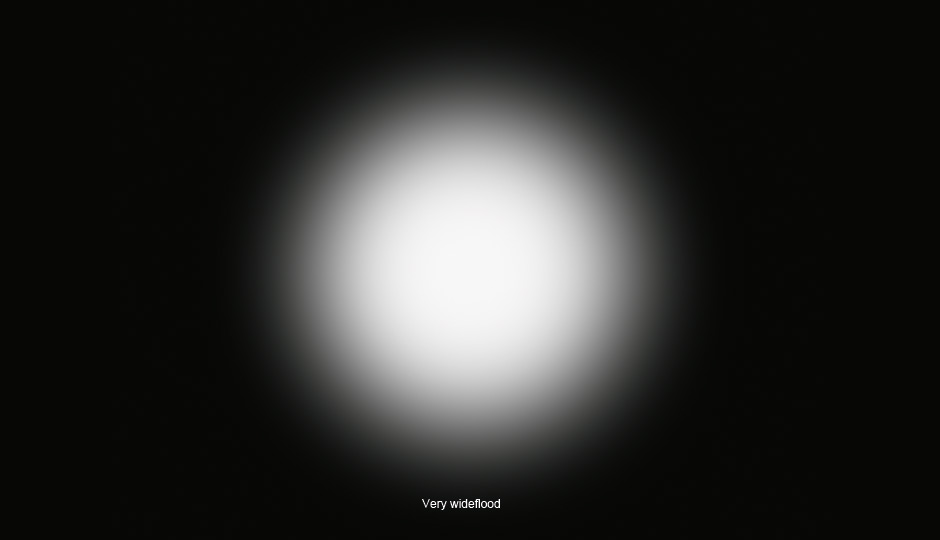

Beam angles Downlight
Downlight: flood (30°), wideflood (40°),
very wideflood (55°), wallwasher (72°)
Spotlight: flood (30°)

DIAMO

Range extension

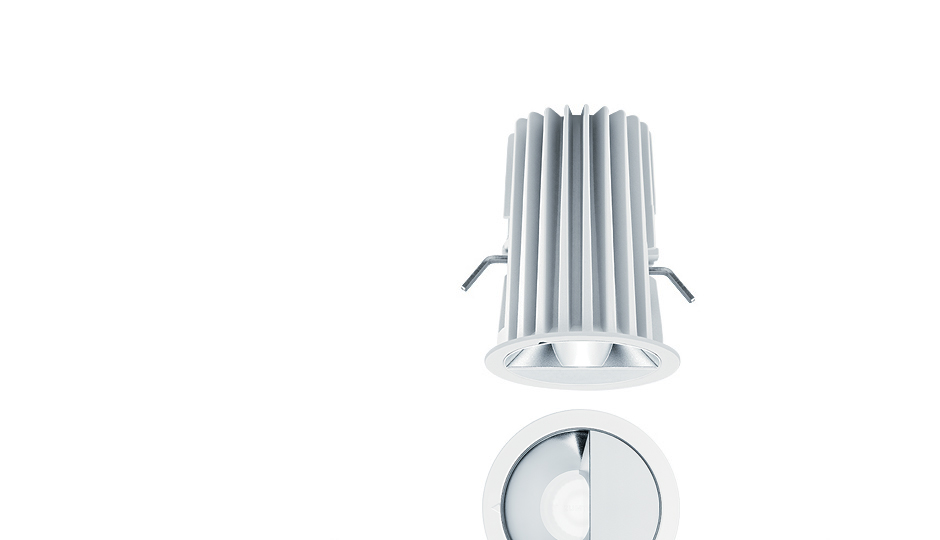

Wallwasher:
A new reflector has been added to the DIAMO product range: the LED downlight is now also available as a wallwasher for uniform illumination of surfaces.

DIAMO
