ONDARIA

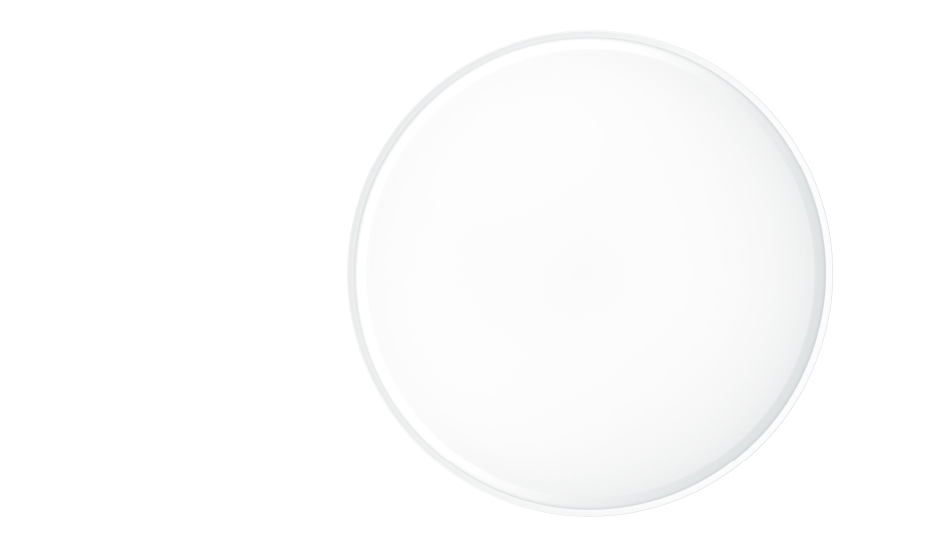

Opal circular luminaire

ONDARIA

Opal circular luminaire

ONDARIA’s lighting effect and design speak a common language.
Its continuously circular form is complemented by a slightly recessed concave opal diffuser. Uniformly illuminated, it hides the contours of the lamps from view. A discreet indirect component for ceiling illumination underlines the luminaire’s three-dimensional effect.

ONDARIA

Designer

ONDARIA combines stringent basic geometry with soft outer contours. The slightly recessed concave luminous surface achieves a special level of plasticity and impression of depth. With its directionally neutral character, the luminaire provides a high level of architectural flexibility.

Design: Stefan Ambrozus

ONDARIA

Features

Pressed aluminium housing:
gentle curves from one piece

A discreet indirect component:
gently brightens up the ceiling, visually reduces the luminaire height

Highly reflective inner coating:
increased efficiency level in combination with efficient light sources

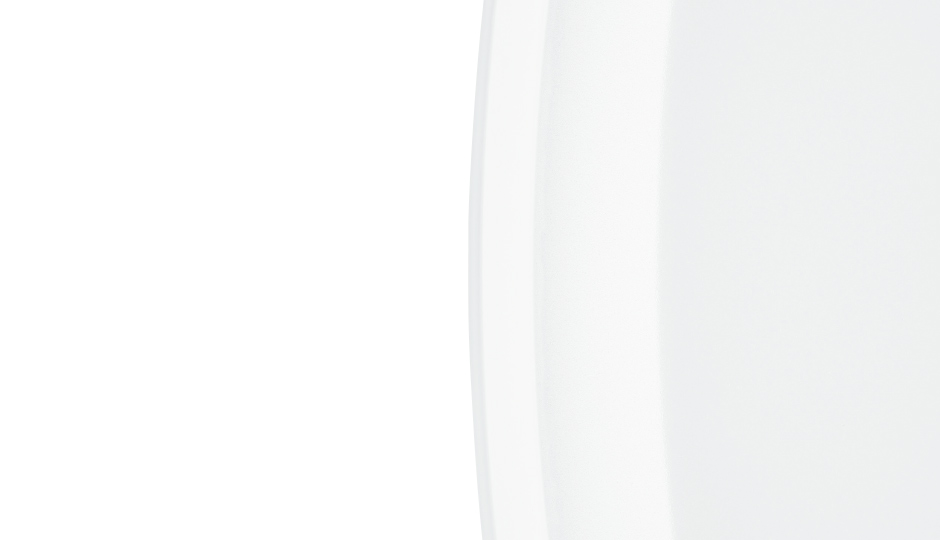

Opal, uniform luminous surface:
slightly recessed concave diffuser creates impression of depth without visible light source contours

Luminaire function:
switchable or dimmable (dim²save or DALI) emergency lighting can be integrated

Light sources:
fluorescent and/or compact fluorescent lamps in high-efficiency and high-output versions

ONDARIA

Formats

Large. Medium. Small. ONDARIA is available with three diameters: 940, 640 and 440 mm. Directionally neutral, the circular luminaire blends flexibly into any room layout, creating a harmonious atmosphere. ONDARIA enhances prestigious areas such as foyers, lobbies, communication rooms, lounges, corridors and stairways.

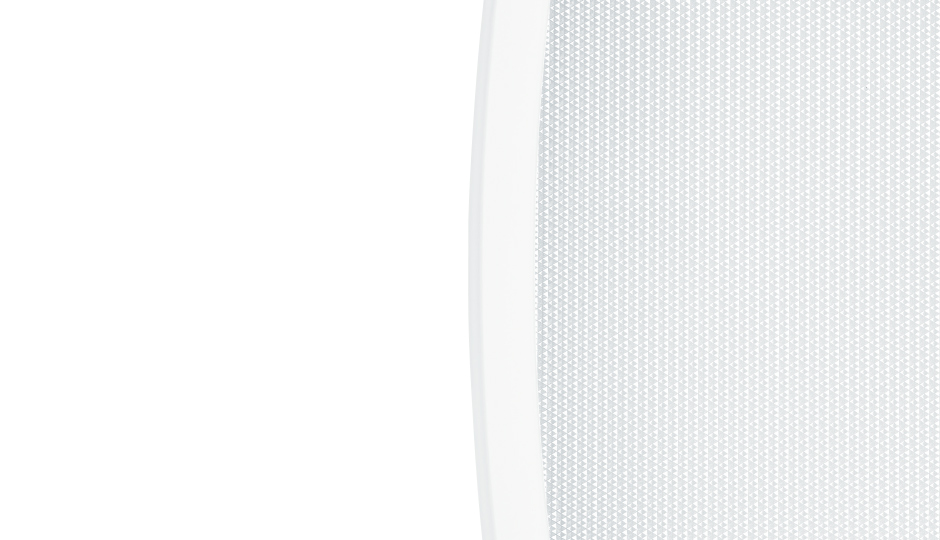

The Luminance Reducing Optic (LRO) opens up even more possibilities. In this version, ONDARIA Medium is also highly suitable for workstations with flatly inclined screens.

ONDARIA

Configuration

Surface mounted  Directly on the ceiling, the small indirect component has a big effect: the ceiling is gently brightened up, and the luminaire height is thereby visually reduced

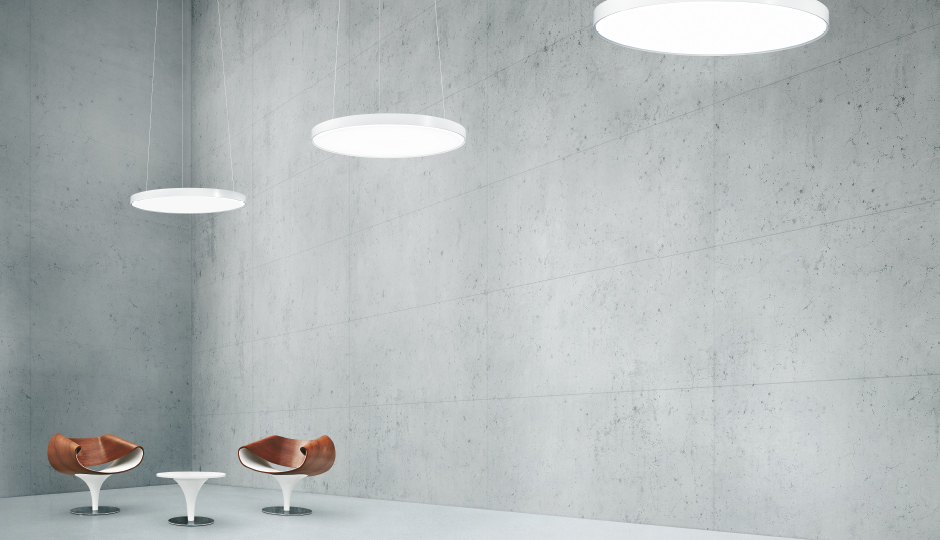

Pendant-mounted  Three delicate steel cords (2 m or 4 m long) allow flexible suspension of the ONDARIA range. The ceiling rose reflects the design of the luminaire.
Recessed  ONDARIA, recessed into the ceiling, appears as a luminous circle with a delicate, lightly backlit shadow line. The mounting frame made of white painted aluminium required for this is available as an accessory.

Semi-recessed  Alternatively, ONDARIA may also be mounted slightly recessed.

LRO  The mid-sized ONDARIA expands the range of applications of this circular luminaire product line to cover office premises and educational facilities as well. Fitted with a Luminance Reducing Optic (MRO), ONDARIA is also highly suitable for workstations with flatly inclined screens. Its luminance of 2,500 cd/m2 is perceived as pleasant by people working on flatly inclined screens.
Choice
Surface mounted
Pendant-mounted
Recessed – semi-recessed
LRO

ONDARIA

Opal circular luminaire

Selected ONDARIA models bear the label for especially resource-friendly products. Information about eco+ can be found at
» www.zumtobel.com/eco
