SLOTLIGHT infinity slim

Create your lightline with mySLOT infinity SLIM Configurator

The world's first continuous light line meets the highest requirements in terms of architecture and lighting technology.

SLOTLIGHT infinity slim

Extremely narrow LED light line

Designs Linear and corner
Lengths Staring from 1 m in 250 mm increments
Mounting Recessed, surface-mounted and pendant
Optics Opal cover, Office cover, wallwasher cover
Colour temperatures 2 700 K, 3 000 K, 4 000 K
Lumen packages 1600 lumen/metre with the opal cover (4000 K)
1200 lumen/metre with the Office cover (4000 K)
  • Around one third narrower than the standard family
  • Only 45 mm thick
  • Potential for almost unlimited design creativity ‒ for example integrated
    in jointed ceilings as functional lighting tool

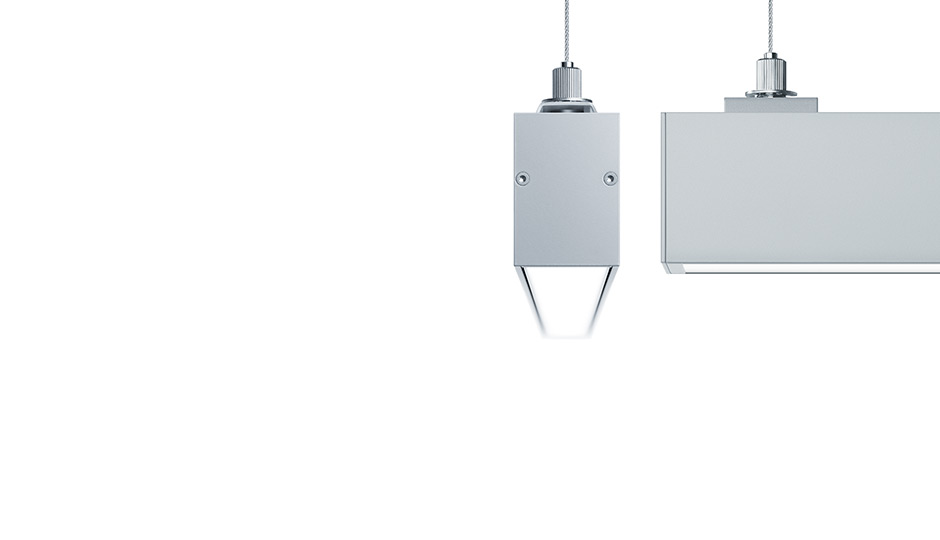

SLOTLIGHT infinity slim

Recessed, surface-mounted and pendant luminaire

  • Three-dimensional, linear and dynamic
  • Consistency also in terms of material and colour: luminaire channel, front-end cap and cover sheet completely made of powder-coated aluminium
  • Individual luminaires supplied as readily assembled complete luminaires
  • Light lines can be assembled by combining several individual luminaires on site
  • Zumtobel's tried-and-tested cord suspension kits for individual luminaires and light lines

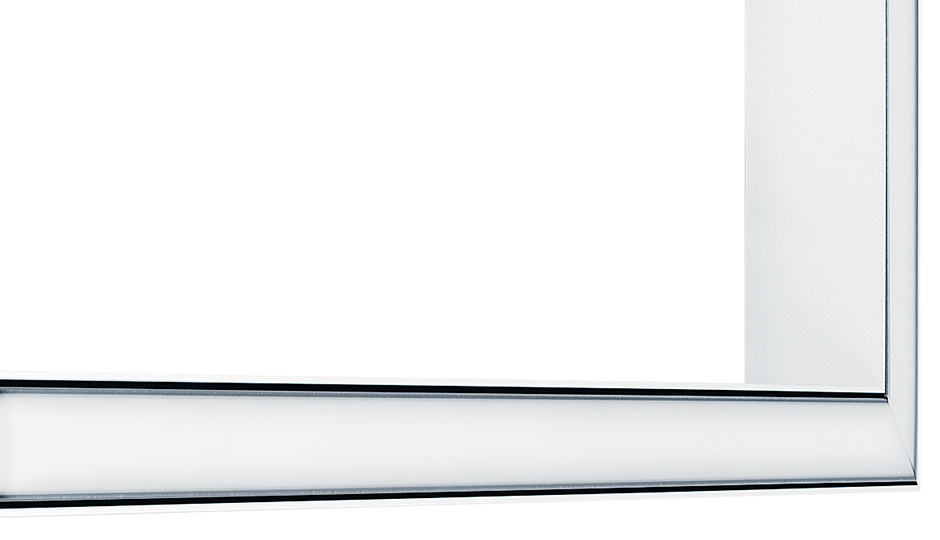

SLOTLIGHT infinity slim

The straight-ahead luminaire

  • Skilfully guides the light around corners
  • Illuminated L-connectors
  • 90° angle modules are both connectors and part of the luminaire itself
  • Continuous illumination just as perfect as with dead straight light lines
  • In order to emphasise room dimensions, define areas within a room and focus on corner situations

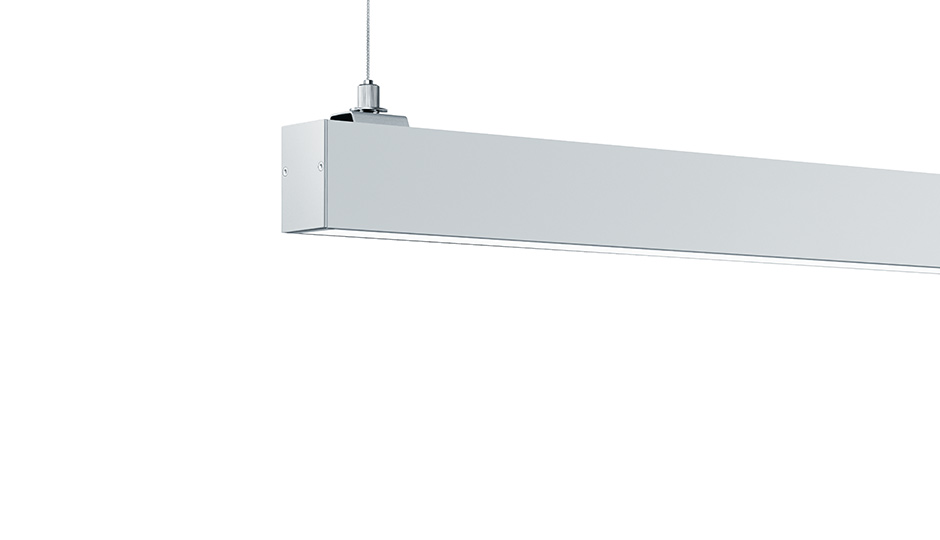

SLOTLIGHT infinity slim

Recessed, surface-mounted and pendant luminaire

  • Consistently linear design with high precision
  • Up to 20m long light lines without interruption and dark spots
  • Uniform illumination, even around corners

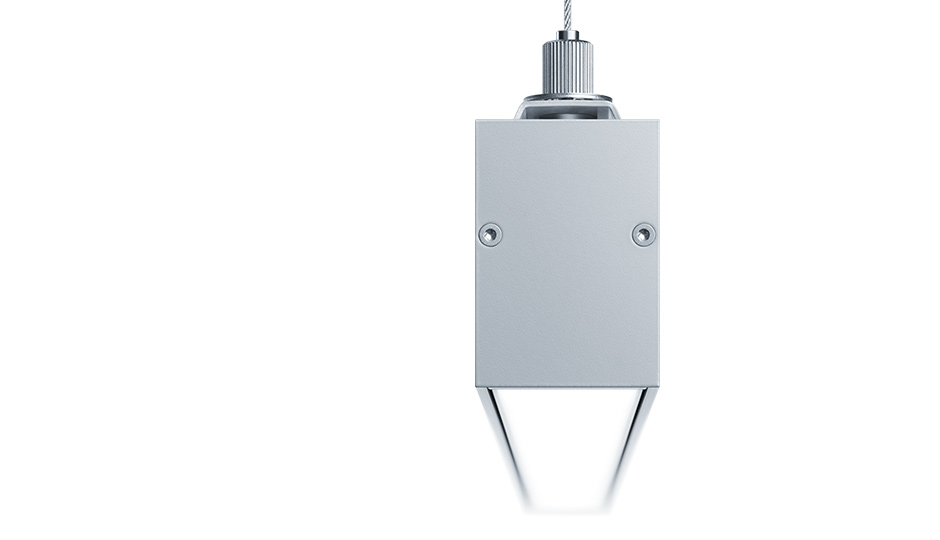

SLOTLIGHT infinity slim

Optics and distribution characteristics change, the design remains

MINICELL

The Minicell reflector enables best possible workplace lighting in accordance with EN 12464: 2011.
Very high lumen packages of up to 3500 lumen per meter are possible with UGR < 19. In combination with a wide light distribution it ensures perfect homogeneity for offices, schools and meeting rooms.

Decorative wall washer

The asymmetric distribution of the SLOTLIGHT infinity illuminates vertical wall areas or pictures evenly and, as a result, enhances traffic zones, for example. As the reflector is inside the luminaire, the wall washer is not recognisable as such from the outside.

Cover for the office

With this cover, SLOTLIGHT infinity reduces the glare to UGR < 19 and thus ensures workplace lighting in accordance with EN12464:2011. The brilliantly appearing luminaire is ideal for offices, schools and meeting rooms.

Opal cover

The diffuse distribution lens distinguishes a SLOTLIGHT infinity as a simple and efficient light line with an homogeneous appearance. The application area ranges from reception areas, to corridors, to lounge areas and break-out zones.

SLOTLIGHT infinity slim

Minicell – Powerful lighting for offices and educational establishments

The office cover (PCO) only has about 1400 lumen per meter and the spacing must be very narrow to do a proper workplace lighting which brings a lot of pressure on the customers budget.
UGR < 19 UGR and
L65 < 3000 cd/m
  • To use linear lighting in office workspace today we need by far too many lightlines

  • The workspace looks packed with lightlines to somehow achieve the norms and in the end it blows up the budget

SLOTLIGHT infinity slim

Minicell – Perfection in lighting

  • SLOTLIGHT infinity minicell is the product of the characteristic continuous light line of SLOTLIGHT infinity combined with a large lumen package

  • Specially developed for use in offices and schools

  • The ingenious minicell reflectors maintain the continuous light line, but with an increased lumen output of 3500 lm (2500 lm in the Slim version)


SLOTLIGHT infinity slim

Minicell – The secret of the performance

Designed and manufactured in house

  • Maximum visual comfort - the minicell reflectors enable a lumen output of 3500 lm/m that is three times higher than that of the standard luminaire

  • Meets the requirements of EN 12464:2011 for workplace lighting

  • The light distribution angle of 70° means that the luminaire can be used in any room layout

  • The optics are modular in design and can be assembled to create the optimum light scene for any type of room use

SLOTLIGHT infinity slim

Minicell – Versatile individuality

Create your workspace

  • The minicell reflectors have an impressively varied colour palette that can be combined in endless different ways

  • The classic colours of black, white and silver are available
    in high-gloss and matt versions

  • Colours can be configured with the different housing colours as required

SLOTLIGHT infinity slim

Minicell – visual synthesis

Modular combination of optics for perfection in lighting design

  • Creating visual synthesis by using minicell reflectors; opal, office and wallwasher optics

  • Whether an opal cover, wall washer or minicell reflectors are used, the appearance of the luminaire always remains the same

  • The best combination of directed and diffuse lighting is then possible

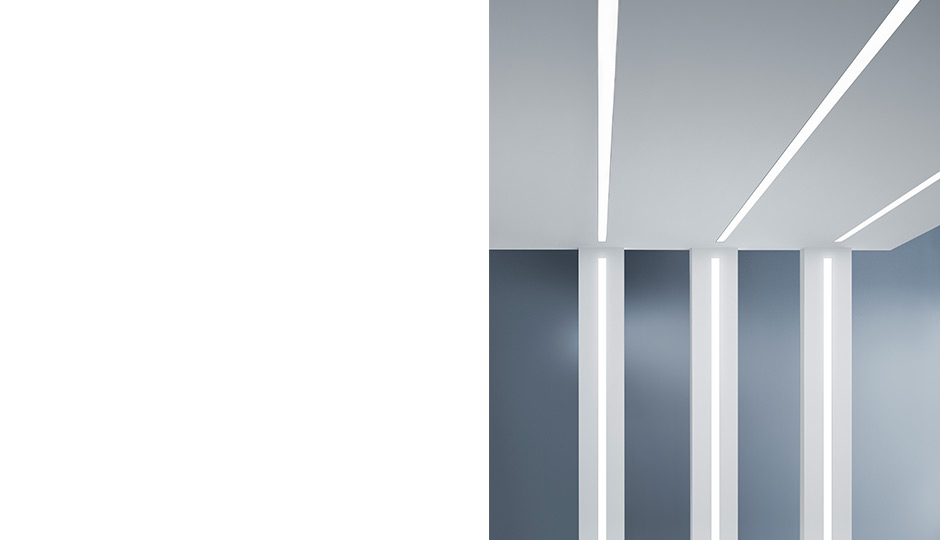

SLOTLIGHT infinity slim

Flush light lines for ceilings and walls

  • Perfect shadow gaps along the luminaire
  •
  • Luminaire and ceiling are technically and thermally separated
    from each other using mounting frames

SLOTLIGHT infinity slim

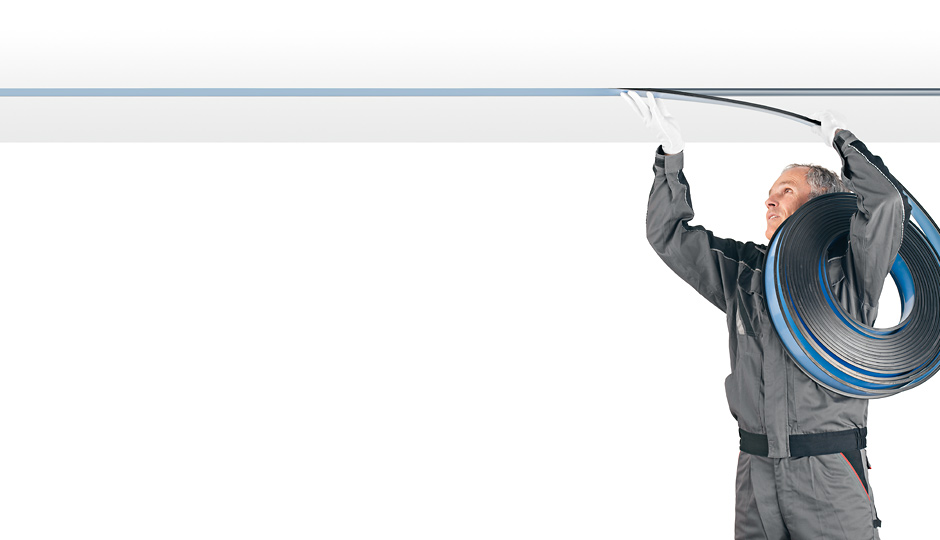

Infinite optic: one continuous twenty-metre unit

Optic all coiled up


  • Optic is supplied as a continuous 20-metre diffuser roll
  • Other lengths: 8, 10, 15 and 20 metres
  • Simply cut to length with a box cutter
  • Optimised for single-person installation
  • Blue protective film protects luminaire against dirt until completion of construction work

SLOTLIGHT infinity slim
