Lincor
Lincor
Design

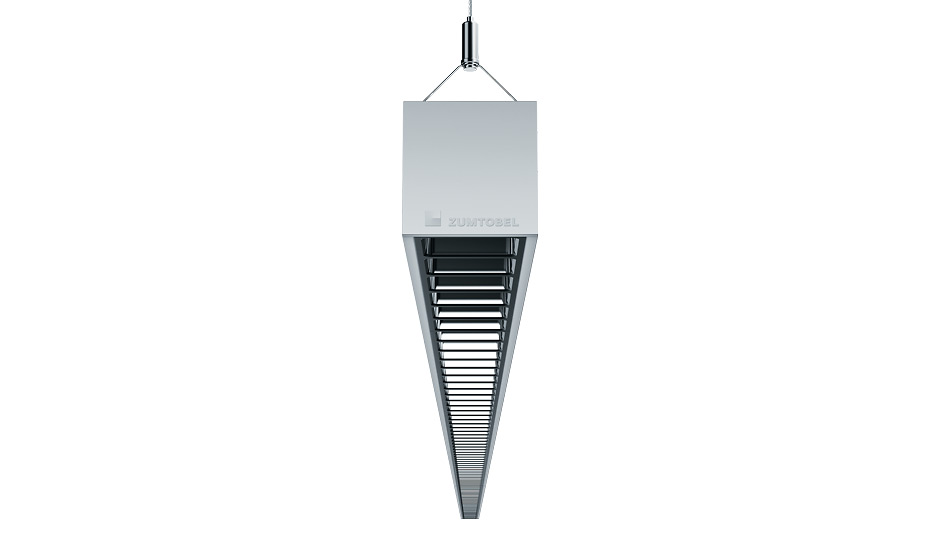

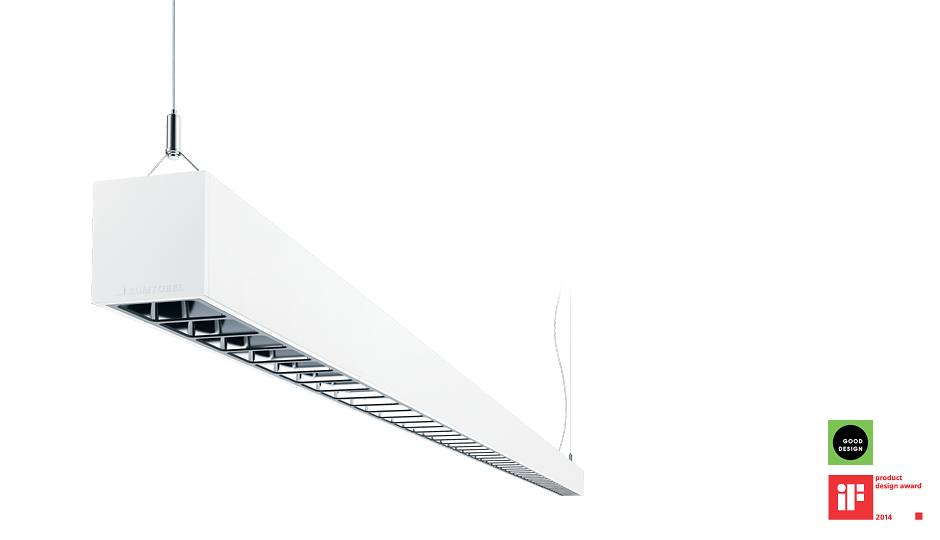

With its slim and unobtrusive design, the LINCOR LED luminaire draws an elegant line through the room, its contemporary minimalism enhancing room axes and architectural concepts. Arranged as a double-length light line or a continuous-row system, it is an expression of maximum linearity. Efficient LED technology takes full effect in a section of only 63 mm square – resulting in high-quality indirect/direct lighting.
Lincor
Lighting technology
Suspension Thanks to flexible, vertically and horizontally adjustable cord suspension, LINCOR lines consisting of individual luminaires or arranged as continuous rows can be easily and precisely aligned with high precision.

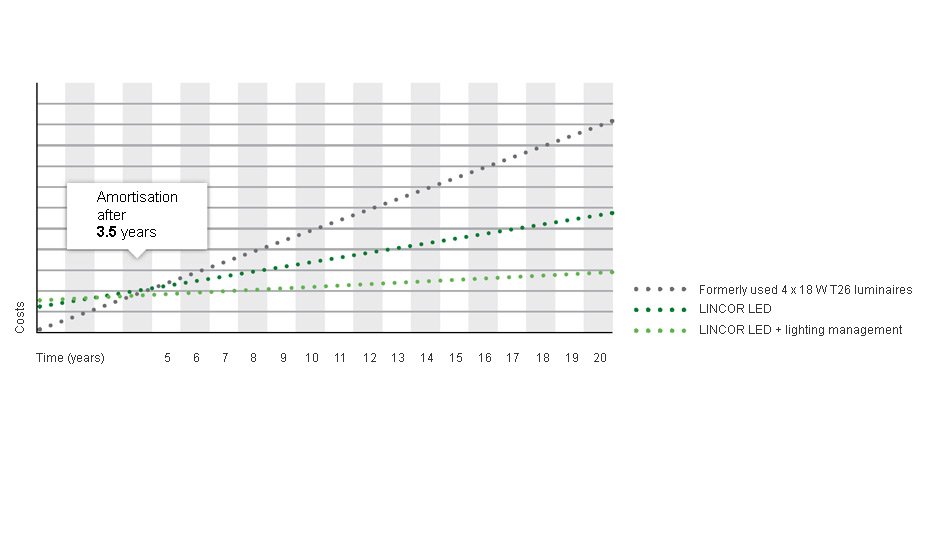

Converter Dimming means added convenience and is at the same time the most effective method for saving energy and costs. As standard, LINCOR luminaires are DALI-dimmable from 10 % to 100 %.
Light direction Thanks to the close collaboration of lighting engineers and designers, the indirect light component can now be directed upwards to optimum effect despite the small dimensions. By way of a continuous light conductor, it is uniformly emitted from the luminaire and distributed on the ceiling.
LED module The self-cooling LED module with indirect/direct light distribution is fully optimised to the lighting technology. Therefore, powerful lumen packages can be produced from small dimensions with colour rendering of Ra 80 and a long service life of 50,000 hours, at a decrease in luminous flux to 80 percent.

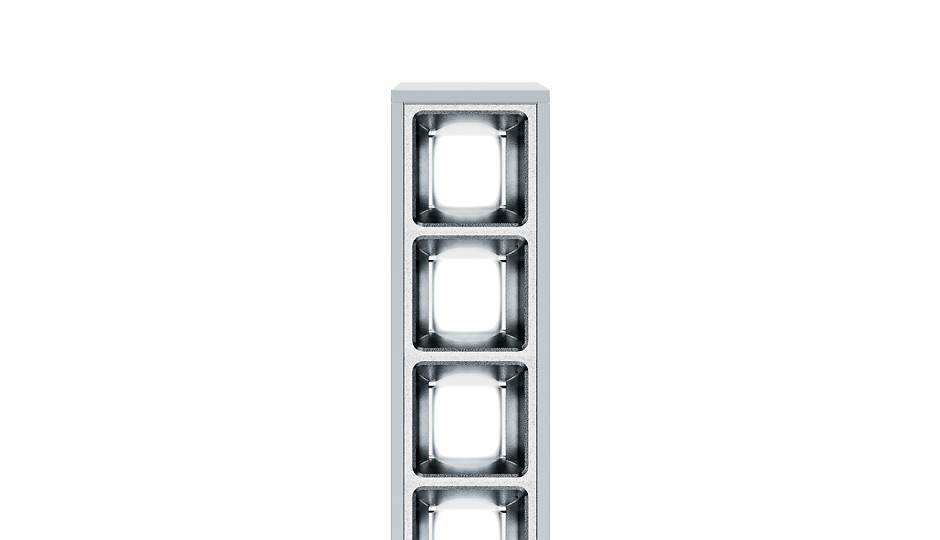

Minicells The LED lighting points directed downwards are first homogenised in a primary mixing chamber, after which the light is directed to the task areas most effectively and with perfect glare control. As an alternative, LINCOR is also available with luminance- reducing optic (LRO): consistently prismatic lighting technology perfectly resolves the LED lighting points and at the same time reduces glare at steep angles of view.
Lincor
Minicells

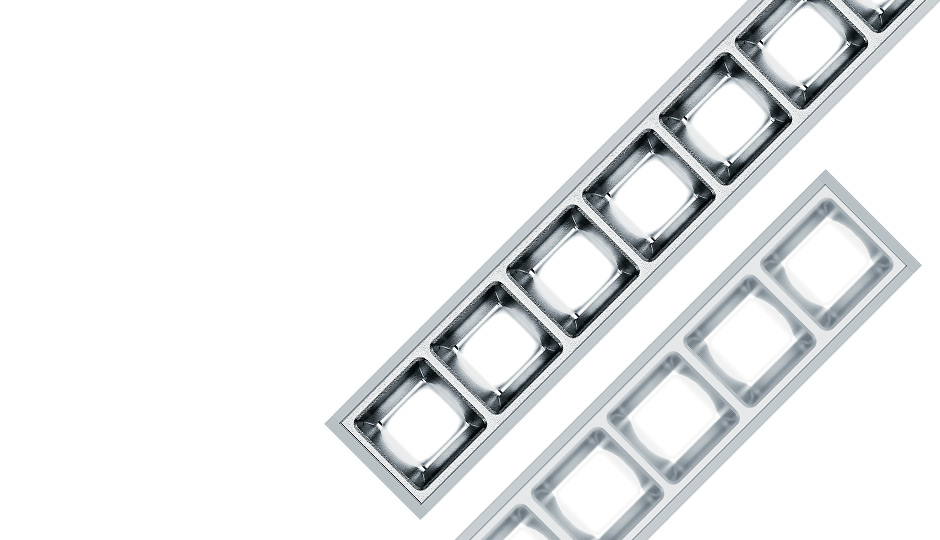

The LINCOR LED minicells coated with high-purity aluminium combine optimum glare control with maximum efficiency. The two versions meet different requirements:
the matt Comfort cell makes direct light safely visible. The luminaire appears as a
uniformly illuminated light line enhancing architectural structures to optimum
effect. In contrast, the highly specular darklight cell hides the direct light
component. Thus, LINCOR provides optimum glare control and lets the
light flow into the room from a hidden source.
the matt Comfort cell makes direct light safely visible. The luminaire appears as a
uniformly illuminated light line enhancing architectural structures to optimum
effect. In contrast, the highly specular darklight cell hides the direct light
component. Thus, LINCOR provides optimum glare control and lets the
light flow into the room from a hidden source.

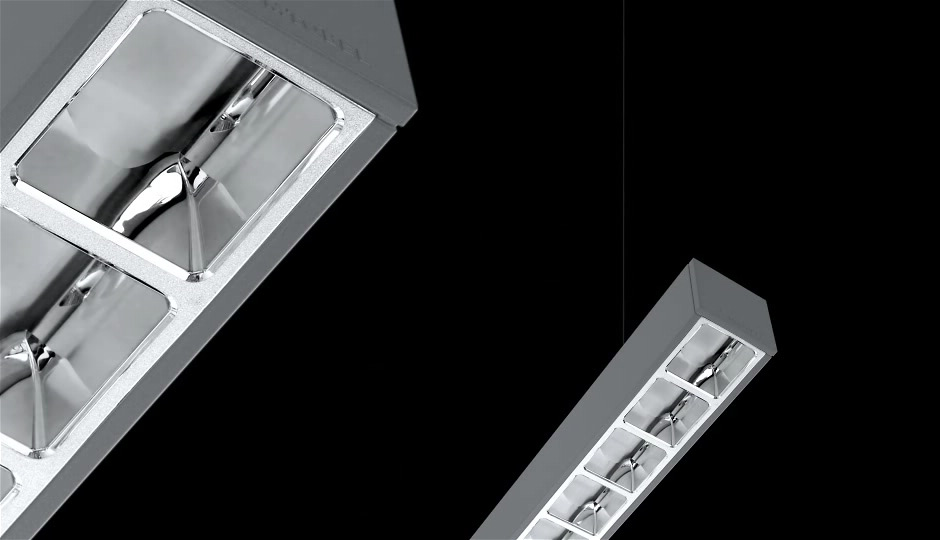

LED minicells Darklight
LED minicells Comfort
Lincor
LRO

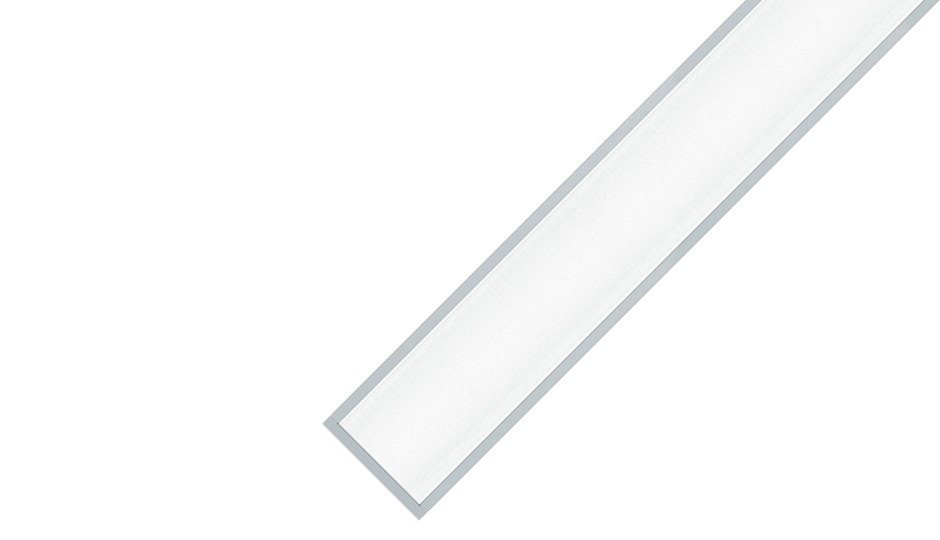

LRO Thanks to the luminaire-reducing optic, LINCOR can be used even more flexibly: harsh shadows in task areas and annoying reflections are effectively reduced by prismatic lighting technology. Hence, interior design possibilities are virtually boundless. Luminaires and workstations can be arranged independently of each other.
Lincor
Luminaire range
Single length 1209 mm
Optionally available with TECTON trunking adapter
Optionally available with TECTON trunking adapter
Double length 2407 mm
Optionally available with TECTON trunking adapter
Optionally available with TECTON trunking adapter
The product range's large choice of options ensures maximum flexibility for the illumination of offices. LINCOR, which has so far been available as a pendant luminaire in various lengths, has now been supplemented with a single-length and double-length surface-mounted version. Boasting a bright colour scheme and stylistic idiom, this straight-line element of design blends perfectly into modern architecture. All pendant luminaires are fitted with a simple yet elegant suspension assembly that facilitates fine adjustment of individual luminaires thanks to tolerance compensation. LINCOR as a continuous-row system is suspended directly from the connectors. This reduces the number of visible suspension elements thus facilitating installation, which is made even easier by through-wiring.
The LINCOR surface-mounted luminaire can also be easily integrated into the TECTON continuous-row lighting system.
The LINCOR surface-mounted luminaire can also be easily integrated into the TECTON continuous-row lighting system.
Single length 1209 mm, up to 4900 lm
Double length 2407 mm, up to 9800 lm
Continuous-row system
Lincor
For improved contrast rendition

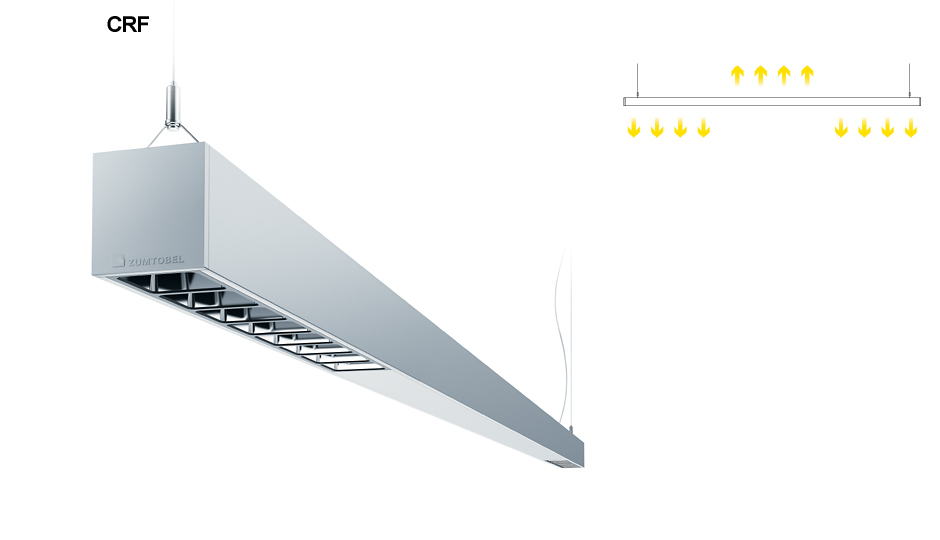

CRF pendant luminaire
The most recent addition to the versatile LINCOR product range is a double-length pendant LED luminaire focusing on superior lighting quality without reflected glare. LINCOR CRF provides indirect and direct lighting – however, the latter only from the laterally arranged light emitting areas. Thanks to a central part from which no light is emitted downwards, the luminaire meets the highest demands regarding contrast rendition, even where placed directly above the workstation; it avoids annoying reflections on glossy surfaces and is therefore ideally suited for working at tablet PCs. Thanks to a special lens, the ceiling is uniformly brightened up by indirect light distribution. LINCOR CRF is available with a matt Comfort optic or a highly specular Darklight optic, and with a colour temperature of either 3000 K or 4000 K.
Lincor
