MICROS
Maximum functionality from minimum size
Efficient These small MICROS LED downlights represent an efficient alternative for a wide range of functional and decorative applications. With a luminaire luminous flux of up to more than 670 lumens, they replace 35 W and 50 W lowvoltage halogen lamps. Switchable or dimmable control gear is connected by a plug and socket system. The lamps still produce 70 percent of their rated luminous flux after 50,000 hours, which means that these LED downlights last 25 times longer than QR-CBC lamps and save on lamp replacements.

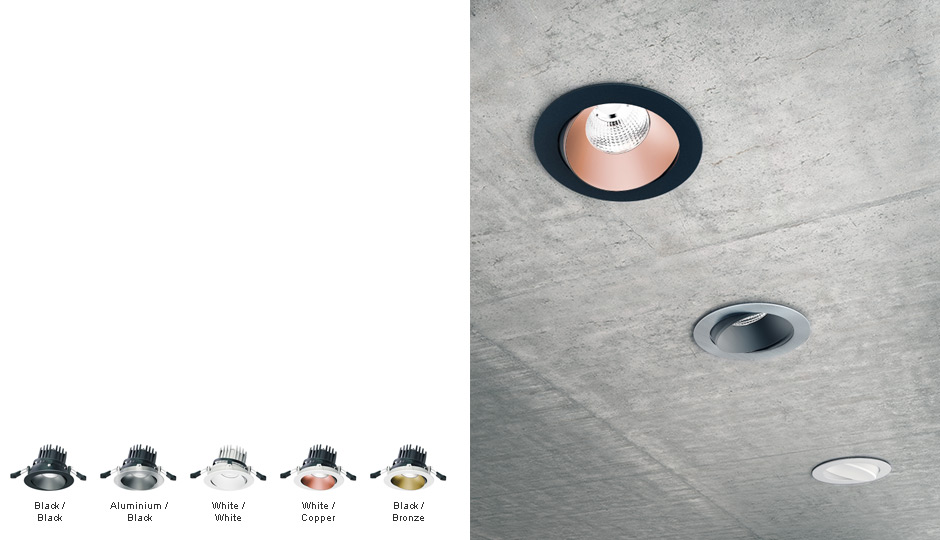

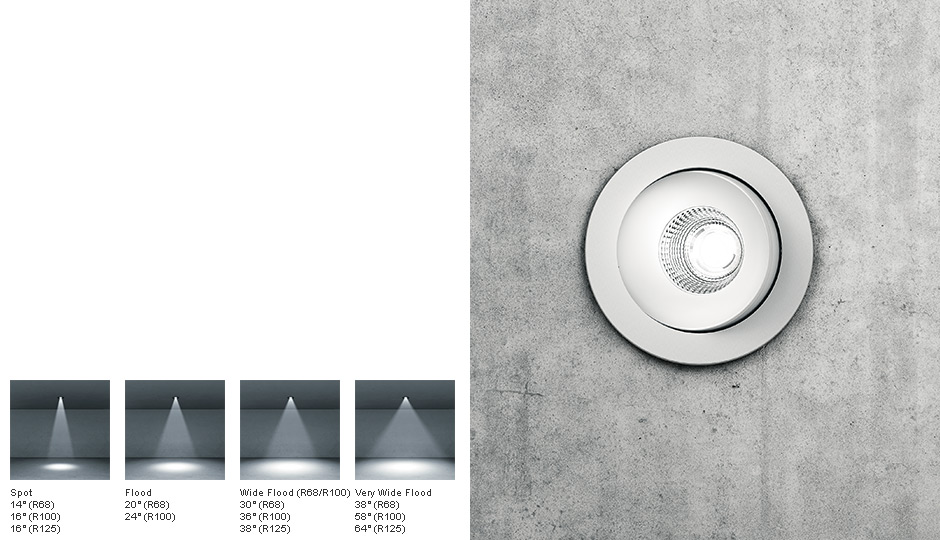

Flexible The solution for a wide variety of lighting tasks: available colour temperatures are 3000 K and 4000 K, with spot (15°) and wideflood (35°) radiation angles and white and brushed aluminium finishes. The fixed and gimbal-mounted versions are complemented by a compact swivelling version in white to round off the range.
IP 44 For use in areas requiring higher protection, MICROS LEDs luminaires can be fitted with an extra protective cover in D68, D95 and Q80 dimensions. Simply clicking the cover on the luminaire in a closed ceiling produces IP 44 protection.
Flexible The solution for a wide variety of lighting tasks: available colour temperatures are 3000 K and 4000 K, with spot (15°) and wideflood (35°) radiation angles and white and brushed aluminium finishes. The fixed and gimbal-mounted versions are complemented by a compact swivelling version in white to round off the range.
IP 44 For use in areas requiring higher protection, MICROS LEDs luminaires can be fitted with an extra protective cover in D68, D95 and Q80 dimensions. Simply clicking the cover on the luminaire in a closed ceiling produces IP 44 protection.
MICROS-C D95 with
IP 44 cover
MICROS
Maximum functionality from minimum size
MICROS Q80 LED
Ceiling cut-out: 80 x 80 mm
Power consumption:
6 x 2,3 W LEDs
Luminous flux, luminaire efficiency:
> 670 lumens, > 45 lumens/W
Output level:
50 W halogen low-voltage lamps
Colour temperatures:
Warm: 3000 K
Intermediate: 4000 K
Radiation angles:
Spot 15°, Wideflood 35°
Lighting head: Fixed
MICROS
Maximum functionality from minimum size
MICROS-C D68 LED
Ceiling cut-out: 68 x 68 mm
Power consumption:
4 x 2,3 W LEDs
Luminous flux, luminaire efficiency:
> 420 lumens, > 45 lumens/W
Output level:
35 W halogen low-voltage lamps
Colour temperatures:
Warm: 3000 K
Intermediate: 4000 K
Radiation angles:
Spot 15°, Wideflood 35°
Lighting head:
Gimbal-mounted ± 12°
MICROS
Maximum functionality from minimum size
MICROS-C D95 LED
Ceiling cut-out: 95 x 95 mm
Power consumption:
6 x 2,3 W LEDs
Luminous flux, luminaire efficiency:
> 670 lumens, > 45 lumens/W
Output level:
50 W halogen low-voltage lamps
Colour temperatures:
Warm: 3000 K
Intermediate: 4000 K
Radiation angles:
Spot 15°, Wideflood 35°
Lighting head:
Gimbal-mounted ± 20°
MICROS
Maximum functionality from minimum size
MICROS-S D105 LED
Ceiling cut-out: 105 x 105 mm
Power consumption:
6 x 2,3 W LEDs
Luminous flux and luminaire efficiency:
> 670 lumens, > 45 lumens/W
Output level:
50 W halogen low-voltage lamps
Colour temperatures:
Warm: 3000 K
Intermediate: 4000 K
Radiation angles:
Spot 15°, Wideflood 35°
Lighting head:
Pivots through 45°
MICROS
Small and practical
MICROS with low-voltage halogen lamps
The MICROS downlight range for LV halogen lamps features a variety of functions and a wide assortment of cover rings and decorative attachments. The installation kit available as an accessory also allows to use the downlight in ceilings with normal flammability. Finish in white, chrome-coloured or brushed aluminium.
MICROS
Small and practical
MICROS D70/D95/Q80
Ceiling cut-out:
D70: 70 mm dia.
D95: 95 mm dia.
Q80: 80 x 80 mm
Lamps:
1 x max. 50 W QR-CBC 51
Lighting head:
Fixed
Ceiling cut-out:
D70: 70 mm dia.
D95: 95 mm dia.
Q80: 80 x 80 mm
Lamps:
1 x max. 50 W QR-CBC 51
Lighting head:
Fixed
MICROS-S D68/D80/Q80
Ceiling cut-out:
D68: 68 mm dia.
D80: 80 mm dia.
Q80: 80 mm dia.
Lamps:
1 x max. 50 W QR-CBC 51
Lighting head:
Swivelling
Ceiling cut-out:
D68: 68 mm dia.
D80: 80 mm dia.
Q80: 80 mm dia.
Lamps:
1 x max. 50 W QR-CBC 51
Lighting head:
Swivelling
MICROS
Small and practical

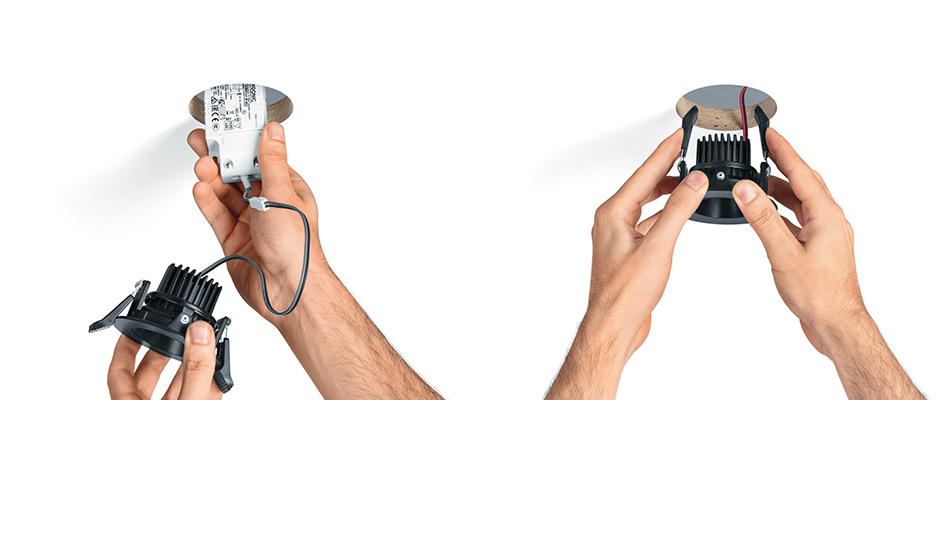

Quick to fit and easy to change Their practical twist-and-lock ring replaces the tiresome spring clips, making it easier to install the lamp. They use an additional guide and support to combine the luminaire and light source into a compact unit that just has to be screwed in. For installation in the ceiling, no tools are required either. MICROS downlights are fitted via two mounting springs, in the tried and tested manner.
Twist-and-lock mechanism instead of spring clips: low-voltage halogen lamps and the cover ring are fixed with a rotating movement, without any tools.
