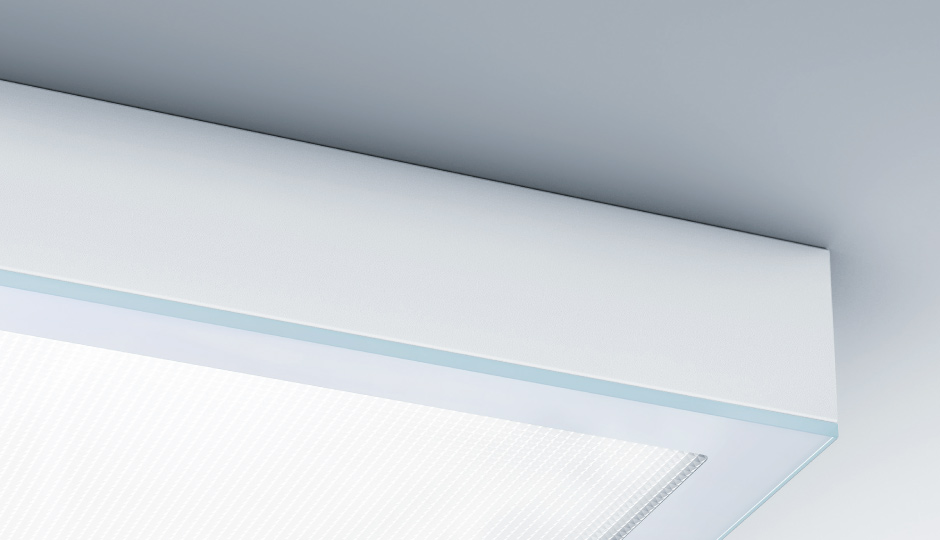

CLEAN II

Pure light you can rely on

supreme & industry

CLEAN II

Functional

supreme
  • Developed in accordance with strict hygiene principles

  • Produced with attention to the DIN EN ISO 14644-1 standard
    and GMP regulations

  • Meets all legal requirements

  • Highly efficient

  • Fulfills high hygiene requirements

  • Different light colours for specific tasks

  • Space-saving

  • Effective lighting for all visual tasks in the cleanroom

  • Form follows function

CLEAN II

Video

Video CLEAN II supreme
supreme

CLEAN II

Activ

supreme
  • Ability to change the colour from white to green to blue
  • Double-asymmetrical light distribution actively responds to lighting requirements in medical establishments
  • The integration of tunableWhite technology can provide excellent support for the humans circadian rhythm

HUMAN CENTRIC LIGHTING
HEALTH-PROMOTING, NATURAL DAYLIGHT
The tunableWhite technology is characterised by its excellent white quality. The calibration of the drivers and LED modules ensures that in the range between 2700K and 6500K, high colour consistency and a constant lumen output at any colour temperature can be achieved. The advantages of tunableWhite are the composition possibilities of different light colours and light intensities. Light in patient rooms and examination rooms can mimic the natural progression of light throughout the day and supports well-being, bodily processes, and concentration.

ASYMMETRICAL COLOUR CHANGE

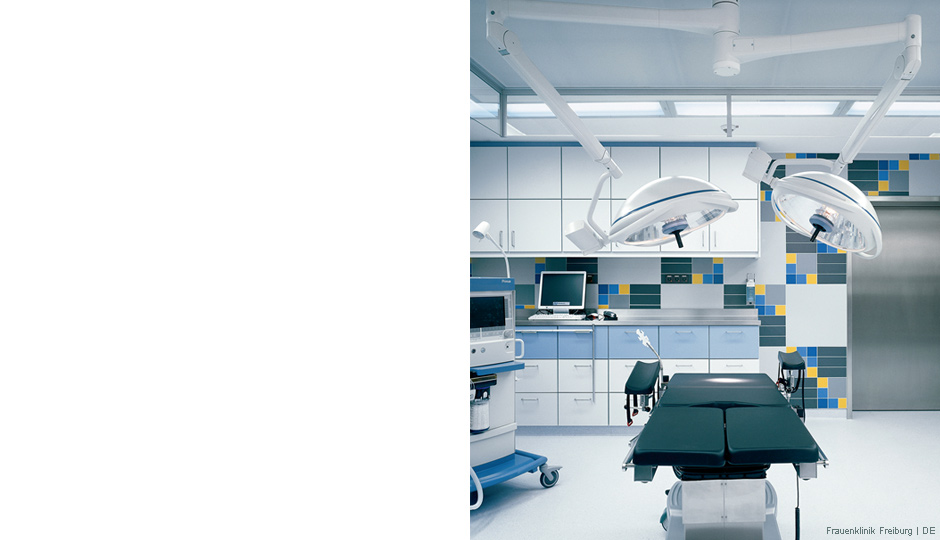

During operations, the surgical field should be illuminated with white light (< 2000 lux). It is easy and convenient to switch between one of the two asymmetrical beams of secondary light colours, blue or green. In the otherwise darkened room, the medical personnel are supported and patients can be treated safely.

DUSTURBANCE-FREE LIGHT
Rooms in hospitals require powerful but interference-free light sources. Wide beam, asymmetric, and glare-free light meets important requirements for carrying out demanding tasks in cleanrooms.

CLEAN II

Optimised

supreme
  • Reduced luminaire height of the is the answer to new architectural requirements
  • An increasing amount of technology has to be accommodated in ceilings, leaving significantly less space for luminaires
  • Unique Light Engine allows us to reduce the height of the luminaire without compromising on functionality
  • Offers much greater planning freedom for lighting solutions, whilst maintaining maximum quality

QUICK AND EASY INSTALLATION
The new luminaire can be installed, the driver maintained, or the light engine replaced quickly and easily in just a few minutes thanks to the new CLICK system. Technicians gain valuable time, while intelligent, easy installation saves money. The luminaire body and the frameless glass cover are resistant to cleaning and disinfection agents. Maintenance outside the cleanroom Access via the rear of the luminaire is particularly useful when it comes to maintenance in cleanrooms. Even as a recessed lumianire - with top mounting - sterile maintenance is guaranteed. The frameless luminaire is easy to clean and the room does not need to be entered again after first instilation. The Light Engine can therefore be replaced outside the cleanroom.

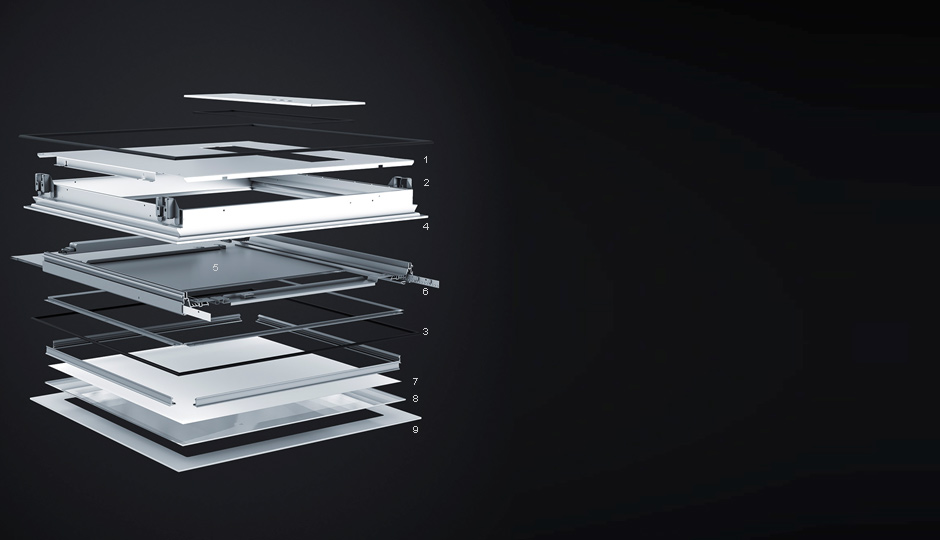

1 Removable luminaire back for quick installation and maintenance without the need to enter the room (only in the CLEAN II supreme ST variant) | 2 Brackets for NIV-Set | 3 Foam seal | 4 Powder-coated steel housing | 5 Removable Light Engine, equipped with side-lit technology | 6 High-quality LEDs based on a ceramic chip | 7 Optical foil | 8 MPO+ | 9 Tempered safety glass, specially prestressed for 3 times the resistance to breakage

CLEAN II

Precise

supreme

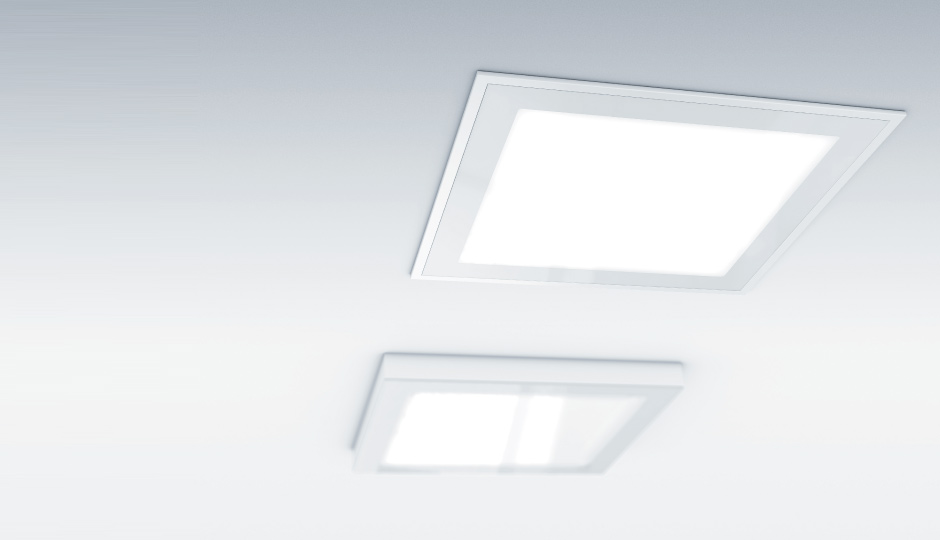

  • Multi-layer micro-pyramidal optic MPO+
  • The light is refracted in a defined and specific way
  • Creaties a pleasant light with a balance between diffused and directional light
  • Flexible positioning of the luminaire
  • Offers precise light from any angle



SAFE AND CLEAN

  • Non-porous and antistatic glass cover (prevents the build-up of germs and bacteria)
  • Perfect qualities in a high-class cleanroom luminaire
  • The safety glass cover is 98% less like to spontaneously break than conventional tempered safety glass
  • The use of extra-white glass avoids the green
    tint of conventional glass covers
  • Ensures the high quality of light needed for precise
    and complex tasks

CLEAN II

Precise

supreme

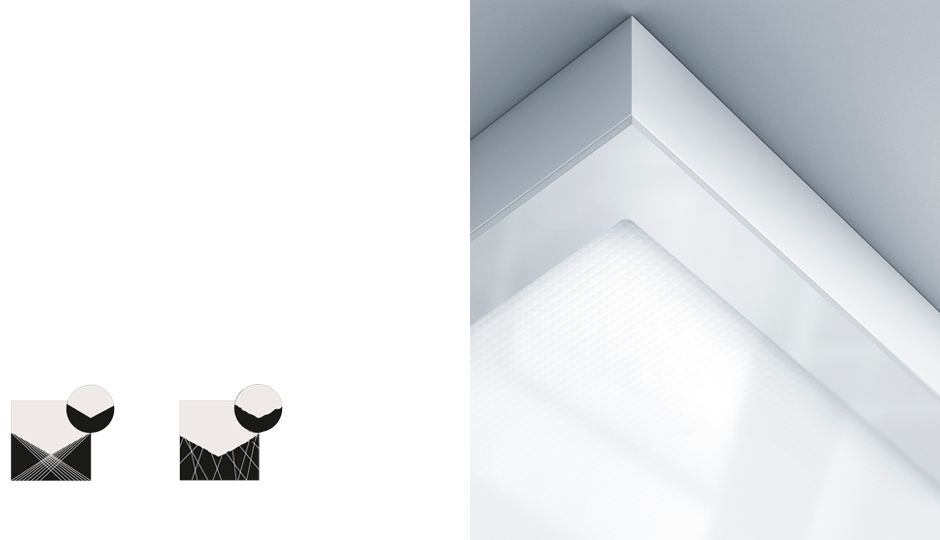

MPO+ Technology
– in brief

The micro-pyramidal optic refracts the light in a very defined and specific way. The light is guided and creates contrasts without multiple shadows, ensuring precise lighting that is particularly suitable for operating theatres and laboratories. Due to the rough surface of the pyramids on similar optics, it is noticeable that the light is refracted in different directions and the distance between the individual light beams varies.

The result: diffused, imprecise light in the room. With Zumtobel MPO+, on the other hand, the refracted light beams are always parallel. The perfectly controlled light refraction creates a pleasant light with the perfect balance between diffused and directional light. High lumen packages ensure rooms flooded with light and optimal glare control.

Rough surface
MPO+ smooth surface

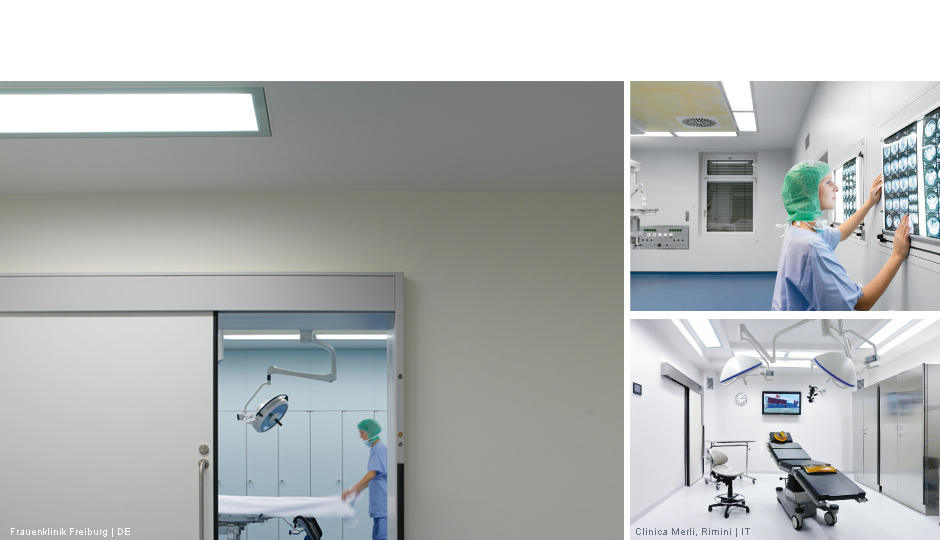

CLEAN II

In the application

supreme

CLEAN II

Resistant

industry

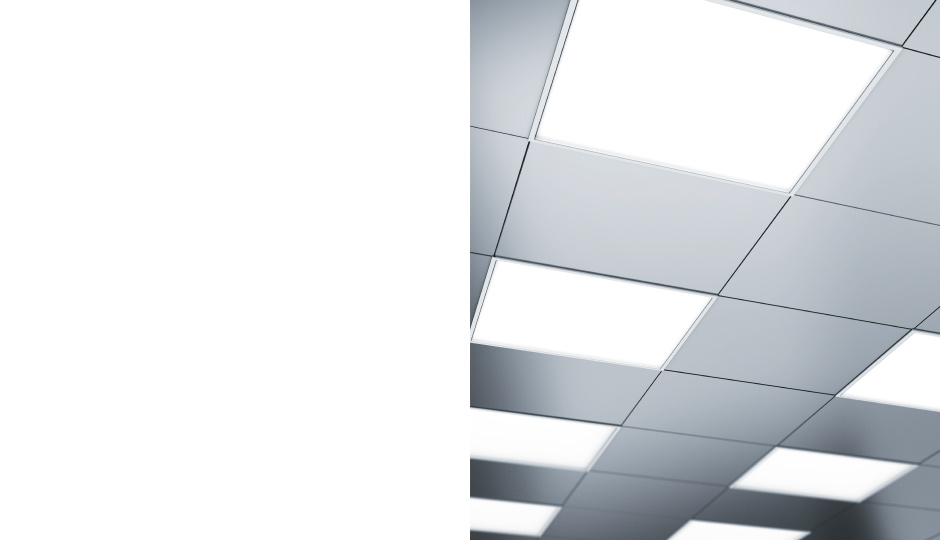

  • Hygienic design for the challenges of industrial cleanroom technology

  • Provides light for demanding visual tasks in the food industry, commercial
    and industrial kitchens, pharmaceutical production facilities, laboratories, and industrial cleanrooms

  • The luminaire cover combines hygiene with high quality illumination

  • Resistant to chemicals and heat

  • Produced with attention to the DIN EN ISO 14644-1 standard
    and GMP regulations

CLEAN II

Durable

industry
  • The high-quality PMMA cover is precisely thermoformed:  creates an impermeable joint with the steel housing
  • Resistant to heat and to alkaline and chemical solutions
  • IP65 protection (dust, water and steam)
  • Round corners and smooth surfaces can be quickly and easily cleaned

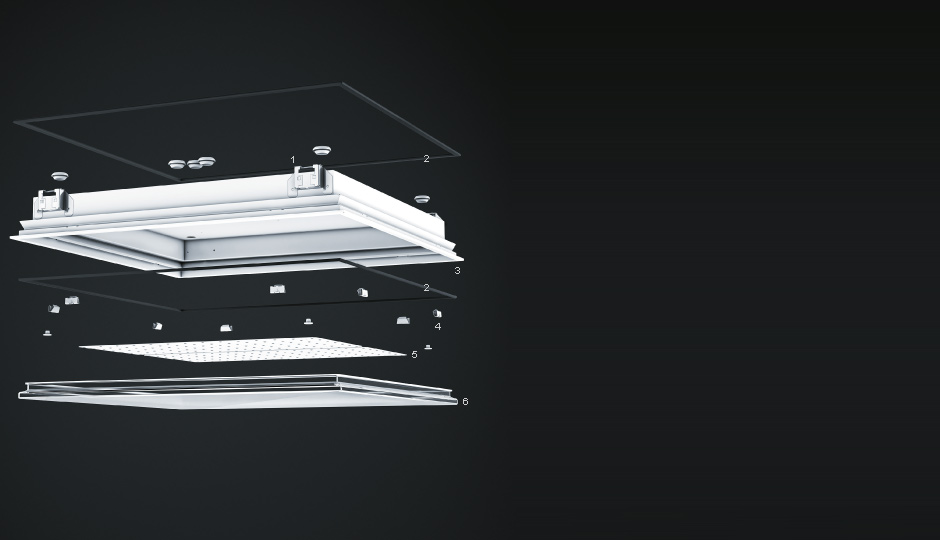

1 Brackets for NIV-Set | 2 Foam seal | 3 Powder-coated steel housing | 4 Spring clip system for securing the cover | 5 High-quality LEDs based on a ceramic chip | 6 Thermoformed PMMA cover, developed in accordance with GMP guidelines for hygiene

CLEAN II

Durable

industry
PMMA
In brief

Polymethyl methacrylate (PMMA), also known as acrylic glass, is a synthetic plastic that is used as a substitute for glass. Our PMMA is specially formulated to meet requirements for optical quality, homogeneity and specific surface properties.

Manufacturing process
The material is carefully shaped during the thermoforming process to provide a perfect fit with the luminaire's spring system. This makes the PMMA cover extra resistant to dust, water and certain corrosive chemicals used in many cleanrooms. And because PMMA does not contain any toxic substances, it is also ideally suited for use in the food industry.

 The advantages at a glance

  • Excellent optical light distribution
  • Resistant to a many chemicals
  • Smooth surface
  • Fully recyclable

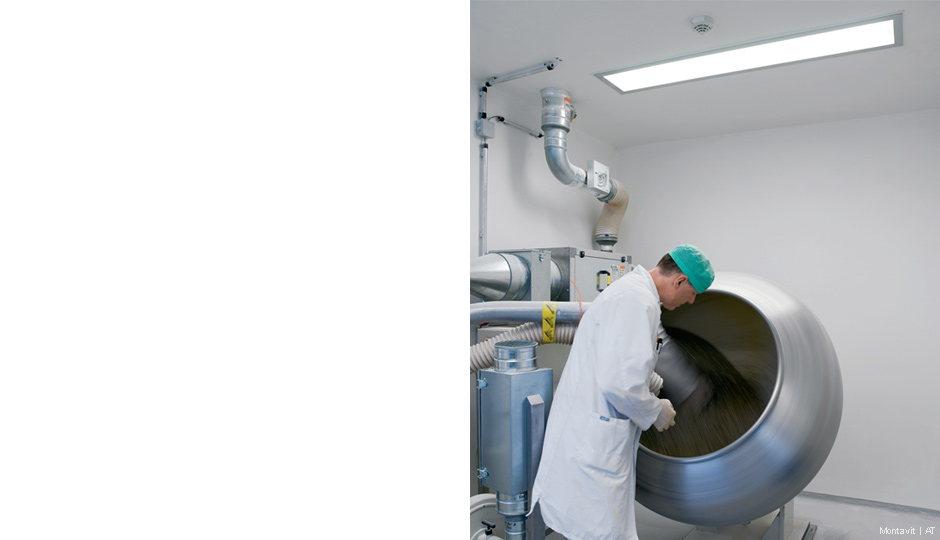

CLEAN II

In the application

industry
