Arcos

LED Spotlight System

Sensitivity and high precision –
the spotlight system for
sophisticated lighting scenarios

Arcos

Spotlight system

Arcos

Spotlight system

ARCOS LED xpert | 22 W | superspot | white

Arcos

Design

David Chipperfield
David Chipperfield Architects | Design
“We wanted to create a product together that would not only be installed by museum directors for high-quality exhibition spaces but by ourselves as well.”

Arcos

Design

  • Minimalist and uncluttered design with high flexibility

  • Perfect combination of pinpoint accent lighting and wide-area illumination

  • Special focus is placed on the exhibits, and the effects they create are enhanced by lighting and architecture

  • ARCOS LED – a further development of the conventional model, available with a variety of accessories

  • Thanks to sophisticated lighting technology, the most varied objects can be set perfectly centre stage

  • UV- and IR-free light is gentle on exhibits

  • Considerable reduction in energy consumption, compared to the conventional generation, due to the use of innovative LED technology

Arcos

A complete range

Compact, dimmable LED spotlight with excellent colour rendering (Ra 98) and tight colour tolerances (1 x 2-step MacAdam); optionally available with super-spot, spot, flood or wideflood beam angles and with oval or square light distribution.

Ø 100 mm. Fitted with
LED modules of up to 22 W.

Dimmable LED spotlight for focussed
accent lighting with sharp outlines.

Ø 100 mm. Fitted with
LED modules of up to 22 W

Dimmable LED spotlight for illumination from great heights;
uniform light distribution, excellent colour rendering (Ra 98)
and tight colour tolerances (1x2-step MacAdam);
optionally available with superspot, spot, flood or wideflood beam angles
and with oval or rectangular light distribution.

Ø 120 mm. Fitted with
LED modules of up to 35 W

Dimmable LED spotlight for
focussed accent lighting
and gobo projections
with sharp outlines.

Ø 120 mm. Fitted with LED
modules of up to 30 W.

Dimmable LED spotlight
with variable white light
colours (tunableWhite).

Ø 120 mm. Fitted with LED
modules of up to 30 W.

ARCOS 2 LED xpert
ARCOS 2 LED xpert projektion
ARCOS 3 LED xpert
ARCOS 3 LED xpert projection
ARCOS LED tunableWhite

Arcos

A complete range

Dimmable LED spotlight for lighting vertical surfaces;
uniform light distribution, excellent colour rendering (Ra 98)
and tight colour tolerances (1 x 2-step MacAdam), installation height up to 4 m.

Ø 120 mm. Fitted with LED modules of up to 35 W.

Linear dimmable luminaire for illumination of large wall surfaces; horizontal and vertical excellent uniformity, good colour rendering (Ra > 90), installation height of up to 7 m. Design length: 320 mm. Fitted with LED modules of up to 15 W.

Linear dimmable luminaire for illumination of large wall surfaces; horizontal and vertical excellent uniformity, good colour rendering (Ra > 90), installation height of up to 7 m. Design length: 620 mm. Fitted with LED modules of up to 30 W.

ARCOS 3 LED xpert liteCarve®
ARCOS LED wallwasher, linear
ARCOS LED wallwasher, linear

Arcos

Arcos

Arcos

Sustainable technology, compact size

1. Design & functions

ARCOS xpert perfectly combines design and functions. Like its conventional predecessor, the LED spotlight system blends harmoniously into a variety of environments. True to Zumtobel’s credo “tried-and-tested design, new technology”, the new generation’s appearance has remained unchanged, so that the LED version can easily be combined with conventional ARCOS lighting solutions. ARCOS xpert provides maximum flexibility – due to a variety of additional functions:

  • Spotlight can be locked into position
  • Spotlight is dimmable (at the luminaire or via DALI)
  • Rotating attachment holder and encoded lens
  • Cool touch function
  • Holder suitable for a large range of accessories
2. Optical system

A combination of specially shaped polycarbonate reflectors and selected lens optics that is perfectly matched to the LED module ensures excellent lighting quality: the ARCOS xpert LED spotlight cannot fail to impress thanks to its excellent glare control (no light source visible) and uniform high-precision light distribution. The high level of luminous intensity is focussed in the centre and softly decreases towards the edges – another characteristic feature of ARCOS xpert adding to its excellent lighting quality.
3. The LED light source

Due to its compact size, the innovative LED module is ideal for accent lighting. In addition, it boasts excellent colour rendering
(Ra 94 at light colour 930) and tight colour tolerances (2-step MacAdam). Moreover, the UV and IR-free light is gentle on the exhibits and prevents the colours from fading. As a result, the ARCOS xpert LED spotlight fascinates with superior lighting quality.
4. Passive cooling

The level of lighting quality achieved in an application depends on optimum thermal management. The high-power ARCOS xpert LED spotlight boasts an intelligent passive cooling system allowing for luminous flux and service life to remain at a constantly high level. In addition, due to the cooling system’s innovative design, no openings are required in the housing. Like its conventional predecessor, the LED spotlight’s converter box also features a cool touch function: thus, ARCOS xpert spotlights can be individually adjusted to changed situations at any time.
Design & functions
Optical system
The LED light source
Passive cooling

Arcos

Sustainable technology, high light output

1. Design & functions

The only visible difference between ARCOS 3 xpert and ARCOS 2 xpert is the former's slightly larger diameter – ideal for combining both sizes in one room. That's not all: the consistently designed ARCOS product range with its various models and lumen packages is able to meet a variety of lighting tasks in museums and art galleries, while perfectly catering for various ceiling heights and lighting distances.
With illuminance levels of up to 2000 lm, ARCOS 3 provides perfect accent lighting from great heights.
This extremely high flexibility is based on multiple additional functions:

  • Spotlight can be locked into position
  • Spotlight is dimmable (at luminaire or via DALI)
  • Rotating attachment holder and encoded lens
  • Cool touch function
  • Holder suitable for a wide range of accessories
2. The optical system

In addition to louvre optics such as ring louvre or honeycomb mesh, a number of reflectors and special films are available for ARCOS xpert. By combining them, light control, glare limitation and lighting effects can be designed as required. The extremely uniform lighting cone is supplemented by beam angles ranging from 8° (superspot) to 40° (wideflood). Using oval or rectangular lenses, the shape of the lighting cones can be modified.
3. The LED light source

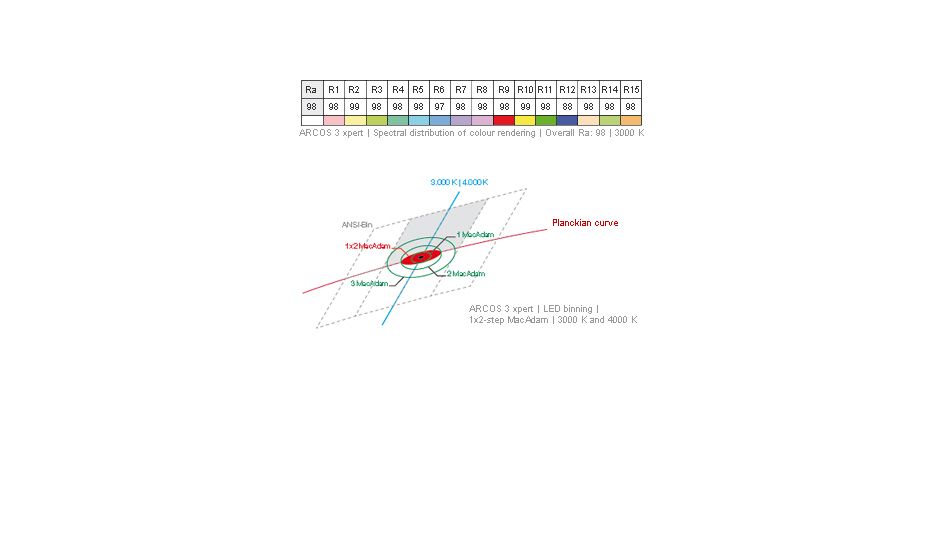

The innovative LED module ensures perfect accent lighting: at colour temperatures of both 3000 K and 4000 K, the spotlight achieves an excellent colour rendering of Ra 98 in all colour spectrums, combined with extra-tight colour tolerance of 1x2-step MacAdam. With an outstanding R9 level of 98, ARCOS LED spotlights meet the highest requirements placed on museum lighting.
4. Passive cooling

The higher the lumen package, the higher the requirements placed on thermal management. Despite its high output, the designers managed to provide the ARCOS xpert high-performance LED spotlight with an intelligent passive cooling system. Thus, the housing does not need any ventilation slots, although it is ensured that the spotlight achieves maximum luminous flux and has an extremely long service life. Similar to other sizes, the LED spotlight's converter box features a cool touch function: thus, ARCOS xpert 3 spotlights can be re-adjusted to changed situations at any time.
Design & functions
The optical system
The LED light source
Passive cooling

Arcos

Accentuated Wallwasher

1. Design & function

ARCOS 3 xpert liteCarve® acts as a wallwasher, but is really a spotlight. This makes it possible to set accents as well as illuminate vertical surfaces using a visually consistent lighting solution. In this way, ARCOS xpert fulfils the desires of many architects for different lighting effects for unique designs. In addition to all the functional advantages offered by a dimmable and lockable spotlight with a cool touch function, ARCOS 3 xpert liteCarve® has, with its light head that can be rotated or pivoted, the advantage of flexibility compared to linear wallwashers.
2. The LED light source

With an outstanding colour rendering of Ra 98 and the super-tight colour tolerance of 1x2-step MacAdam, the innovative Xicato Artist LED module guarantees a consistently high light quality. The liteCarve® spotlight is an ideal member of the ARCOS xpert product group, presenting itself as the perfect solution for holistic lighting concepts.
3. & 4. The optical system

The patented liteCarve® reflector technology is an antidote to the rigid system of existing lighting categories. Why? Because for the first time, a spotlight is able to perfectly illuminate vertical surfaces. This is done by combining a special lens with the unique freeform reflector, which directs all the light from the principal LED point light source, focusing it onto the vertical surfaces.
Design & function
The LED light source
The optical system

Arcos

Wallwasher

ARCOS LED xpert | 22 W | superspot
ARCOS LED wallwasher, linear | 30 W | 620 mm long

Arcos

Compact expert for sharp outlines

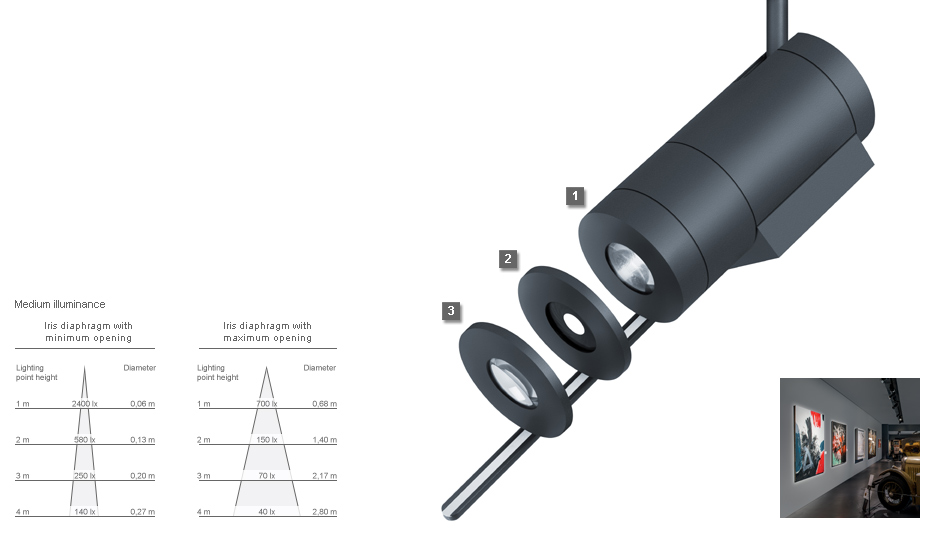

2 LED xpert projection spotlight
1 | Front ring with condenser lens
2 | Adjustable iris diaphragm
     (alternatively: framing cover)
3 | Adjustable focussing lens
Thanks to the framing spotlights' lens system with adjustable focus, objects and pictures can be illuminated with sharp outlines.
Based on the qualities of the ARCOS 2 xpert spotlight, the equally compact projection spotlight sets the exhibits centre stage to optimum effect – with sharp outlines, uniform light distribution and at the same time low illumination of walls. High flexibility is provided thanks to mechanically adjustable lenses ensuring that the light emitted in parallel is given the required shape.

Arcos

The high-precision lighting tool for every lighting task

Wallwashers (with asymmetrically linear distribution)
Wallwashers
(with rotationally
symmetrical distribution)
Projection
Wideflood (32° to 40°)
Flood (22° to 30°)
Spot/medium spot
(11° to 15°)
Superspot (8° to 10°)

Arcos

The high-precision lighting tool for every lighting task

A major requirement for illumination in museums and exhibitions: ­perfect, glare-free light. For this purpose, ARCOS uses front rings, ­special reflectors as well as high-contrast covers and louvres. For the luminaire to be able to respond flexibly to changing lighting tasks, the optical units can be replaced without any tools.

The perfect coordination of LED module Xicato Artist and optical ­system results in maximum precision, uniformity and intensity. The ­colour tolerance is exceptionally low and has been defined on the MacAdam ellipse as 1 x 2-step. What is more, the colour rendering of Ra 98 is almost unbeatable. An R9-value of 98 meets the highest requirements placed on museum lighting. The identical colour spectrum means that ARCOS LED 2 and 3 can be perfectly combined with each other.

Arcos

Intelligent accessories for perfect presentations

A variety of accessories. Unbeatable flexibility

It is considered the most important lighting task in a museum or an exhibition to present an exhibit’s message or shape to optimum effect. In this respect, the effect is often determined by the finest nuances of a material or colour. Due to its large variety of accessories, the ARCOS range provides optimum prerequisites for finding a target-oriented solution to any challenge in just a few simple steps. The following accessories are available for perfect illumination: four lenses, four exchangeable reflectors, a wallwasher attachment, a film holder, two special filters, two anti-glare louvres and barn doors. All lenses can be replaced without any tools and combined in a rotating attachment holder. This wide range of accessories makes the ARCOS LED spotlight system the ideal tool for perfect presentation of exhibits: in terms of flexibility as well as when it comes to lighting quality. Encoding of the lenses makes sure that the accessories used will stay in their exact position even after a light source or reflector has been replaced.

Arcos

Intelligent accessories for perfect presentations

Holder for special films
Conversion filter 4000 K
Colour temperature 3000 K
55° x 70° square lens
50° oval lens
30° oval lens
Soft outline lens
ARCOS without any lenses

Arcos

Applications

Arcos

Learn more about Arcos
+
2
Selection
fam my fam

Please select your view.

Now you have two options: use the fam selection box to view the fam range offered in the catalogue, or access the fam configuration mode using the myfamselection box. You can always switch to the other view using the corresponding selection tab.


  • myfam

    Click here to go to the product configurator at family level. This function allows you to select or deselect fam options independently to get another step closer to your customised luminaire.

    myfam
  • fam

    Click here to view the fam range offered in the catalogue. All fam models that can be ordered from the online catalogue are listed here, including relevant data sheets and additional information.

    fam
Selection:
fam myfam

subFam – filtered

subFam Text
Common features
features FamilyName
Differentiating features
features ProductName
Loading ...
Selection:  Standard Products
1 Phasenstrahler (mit Adapter und kurzem Vorsatzring)
Item
Version
Variant
L/B/H
TE
Bruttopreis excl. MWSt.
Ord. no.
sapName

01234567
Zubehör
Item
Version

Bruttopreis excl. MWSt.
ABC
Ord. no.
sapName 01234567

Key
Save product in wish list New product
Transfer to ecoCALC Sort tabular view
Transfer to DIALux
Transfer to RELUX
Availability (non-binding) ex works:
A
Managed at warehouse
L
Available in about 20 working days (excl. transport time)
V
Available in about 10 working days (excl. transport time)
C
Upon request

myproduct

Use the Product Configurator to select the configuration you require from the available options. You can save the parts lists and send them via e-mail.

share it

Catalogue language

Product filter / OFFON
