IYON

Tunable White

IYON

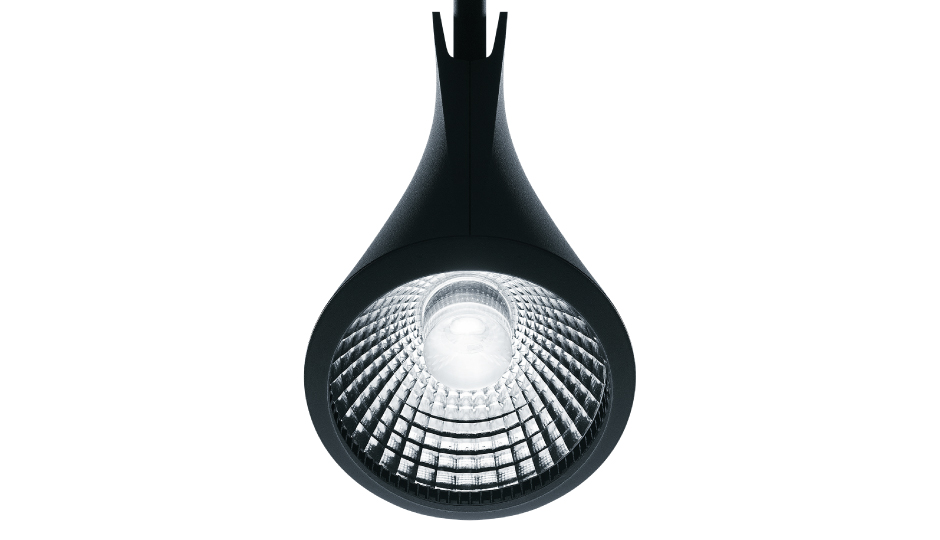

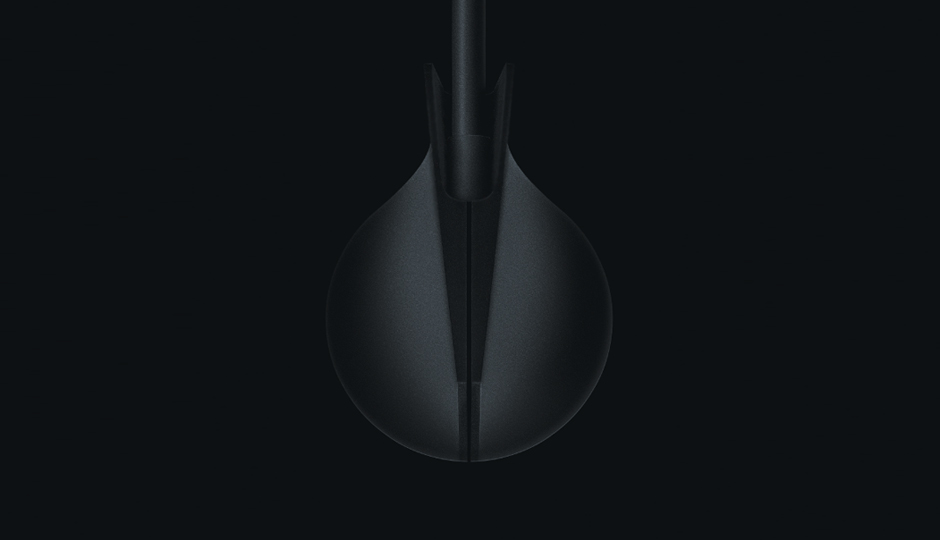

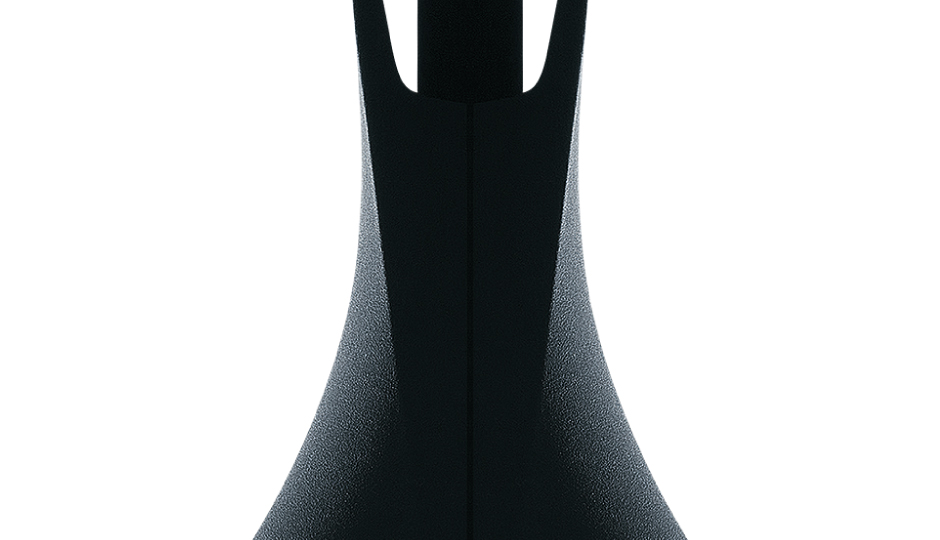

LED spotlight

IYON

LED spotlight

IYON

Design

IYON

Tunable White

IYON

Tunable White

IYON

Design

IYON

Delugan Meissl Industrial Design

IYON

Inside

IYON

Energy efficiency

In setting the lighting stage for retail areas, the IYON LED spotlight range demonstrates outstanding qualities: with its very good colour rendering and high luminous flux levels from 1000 to 1200, 1700 to 2100 and 2300 to 2800 lumens, the high-power LED module is a perfect alternative to HIT lamps. This totally innovative spotlight achieves excellent efficiency of 55 to 77 lumens per watt. Throughout its service life, it provides outstanding, stable colour quality. Beam patterns ranging from spot to wideflood ensure high-precision pinpoint accent lighting.

IYON

Technology concept

Cooling  The very good thermal contact between the LED module and the luminaire housing with its integral heat sink ensures optimal heat dissipation. Strictly passive cooling provides a long service life of 50,000 hours at 70% luminous flux.
LED module Compact  High-power LED modules deliver excellent colour rendering, colour stability and energy efficiency. Stable White and Tunable White versions with several power ratings offer just the right solution to meet an extremely wide variety of lighting requirements.

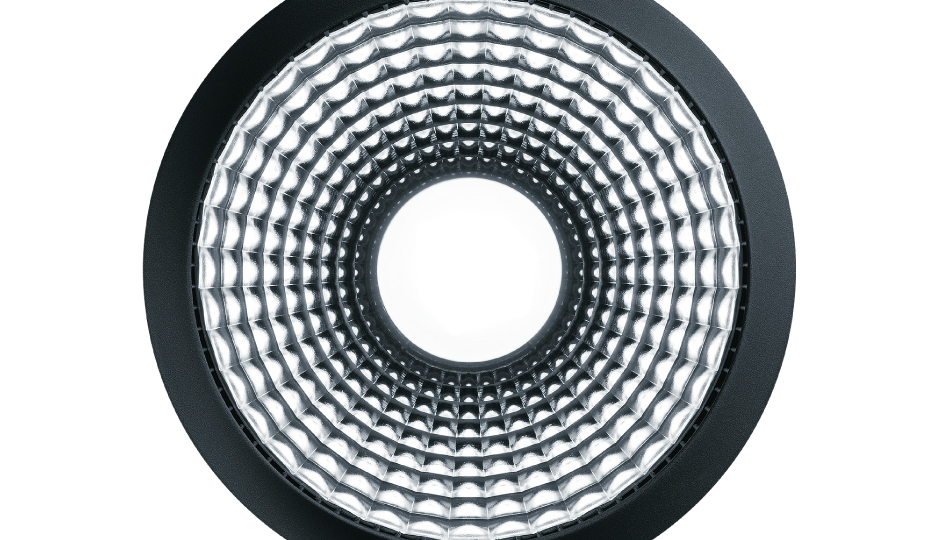

Reflector with lens  The patented mixing chamber lens directs light onto the precision reflector to optimum extent, which in turn ensures uniform, efficient light distribution. Various beam patterns, from superspot to wideflood, are available.

IYON

Technical lighting

RA 90  Advanced Stable White/Tunable White
1 | High-power LED modules (three-channel PiLED and red/white technologies) for excellent quality of spectral distribution
2 | Patented mixing chamber lens for perfect uniformity
3 | Aluminium-sputtered high-precision reflector made of plastic, for brilliance and precision
With its very good colour rendering index of Ra 90, IYON Advanced Stable White and Tunable White produces virtually full-spectrum light over its entire bandwidth.
Ra > 90  Essential Plus Stable White
1 | Module à LED à haute puissance (technologie Phosphor-Array à un canal) pour un rendu élevé des couleurs
2 | Réflecteur de précision en matière plastique aluminisée
Ra > 80  Essential Stable White
1 | Module à LED à haute puissance (technologie Phosphor-Array à un canal) pour une excellente efficacité
2 | Réflecteur de précision en matière plastique aluminisée

IYON

Technical lighting systems

Precise, uniform accenting  The unique optical systems of IYON spotlights make these LED luminaires perfect for precise, uniform accent lighting. The patented mixing chamber lens directs the light of the Tunable White (triple-channel PiLED technology) and Advanced Stable White (dual-channel red/white technology) versions optimally onto the reflector which in turn guarantees uniform light distribution with excellent colour rendering. In addition, extremely compact, single-channel LED light sources (Essential Stable White) that are directed straight at the reflector make it possible to realise extremely narrow beam patterns for pinpoint accenting.
1 m
2 m
3 m
4 m
Spot 12° - 14°
Flood 24° - 27°
Wideflood 33° - 39°

IYON

Product range

IYON M-SL
IYON M
IYON S-SL
IYON S
IYON M
Advanced Stable White/Essential Stable White
27-32 W/~2,000 lumens (replacement for HIT up to 35 W)
52 W/~3200 lumens (replacement for HIT up to 70 W)

Tunable White*
5 W/~1,500 lumens
IYON S
Advanced Stable White/Essential Stable White*
20 W/~1,100 lumens (replacement for HIT up to 20 W)

Tunable White**
20 W/~900 lumens
IYON M
Advanced Stable White*
3.000 K (Ra 90)
4.000 K (Ra 90)

Essential Stable White*
3.000 K (Ra > 80)
4.000 K (Ra > 80)

Tunable White**
2.700 K to 6.500 K (Ra 90)
IYON S
Advanced Stable White*
3.000 K (Ra 90)
4.000 K (Ra 90)

Essential Stable White*
3.000 K (Ra > 80)
4.000 K (Ra > 80)

Tunable White**
2.700 K to 6.500 K (Ra 90)
IYON S
IYON S-SL
IYON M
IYON M-SL
IYON M
Advanced Stable White/Essential Stable White*
Switchable
DALI dimmable

Tunable White**
DALI controllable
Rotary regulator on adapter trackbox
IYON S
Advanced Stable White/Essential Stable White*
Switchable
DALI dimmable

Tunable White**
DALI controllable
Rotary regulator on adapter trackbox
IYON M-SL
IYON M
IYON S-SL
IYON S
IYON M
Stable White 2.000 lm*
Superspot, Spot, Flood, Wideflood

Stable White 3.200 lm*
Flood, Wideflood

Tunable White**
Spot, Flood, Wideflood
IYON S
Spot
Flood
IYON M-SL
IYON M
IYON S-SL
IYON S
IYON M
Matt black
Matt white
IYON S
Matt black
Matt white
IYON M-SL
IYON M
IYON S-SL
IYON S
IYON M
3-phase track
L3+DALI track
Semi-recessed in ceiling
IYON S
3-phase track
L3+DALI track
Semi-recessed in ceiling
IYON M-SL
IYON M
IYON S-SL
IYON S
Power ratings
Colour temperatures and colour rendering
Controls
Light distributions
Colours
Installation options

IYON

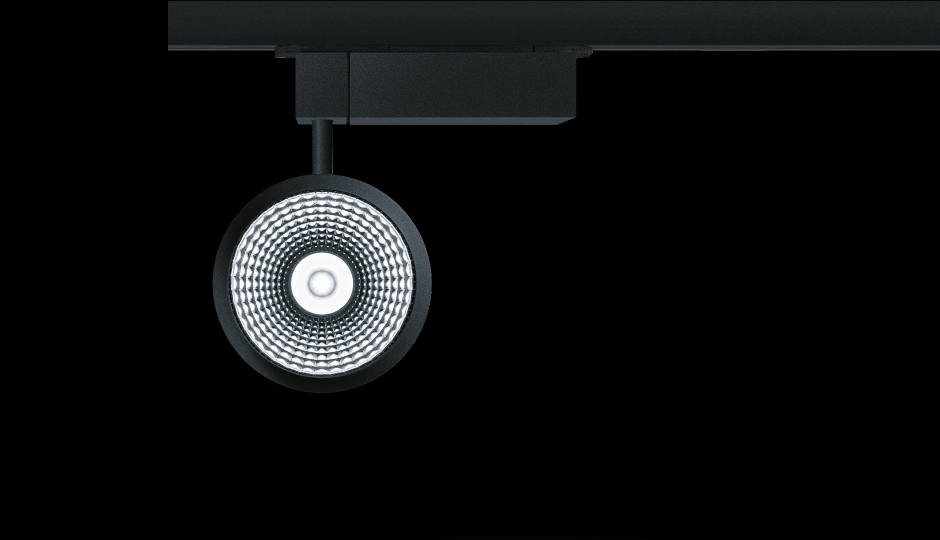

M | 52 W | Matt black

IYON

Powerful and efficient

Designed to deliver optimum lighting in retail spaces, the IYON LED spotlight is available with three lumen packages as an efficient replacement for conventional spotlights that use HID lamps. Replacement for HIT up to 20 W or halogen lamps up to 75 W:
IYON LED spotlight with a luminaire luminous flux of 1,100 lumens

Replacement for HIT up to 35 W or halogen lamps up to 100 W:
IYON LED spotlight with a luminaire luminous flux of 2,000 lumens

Replacement for HIT up to 70 W:
IYON LED spotlight with a luminaire luminous flux of 3,200 lumens

IYON

Optimum visual perception
