LINETIK

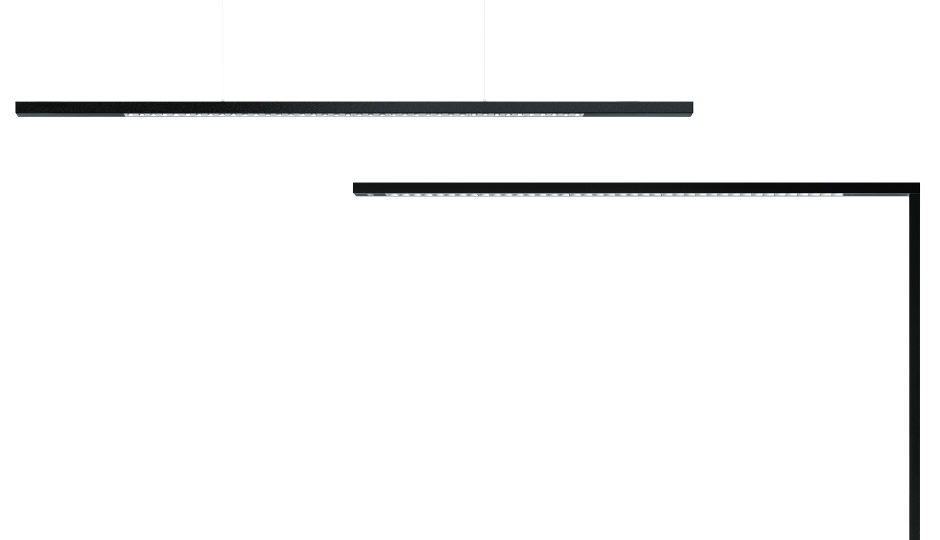

LED pendant luminaire and free-standing luminaire

Impressive lighting comfort
in a striking design

LINETIK

ensures maximum lighting comfort at every office workplace

  • Striking design with a cross-section of only 25 x 25 mm
  • Maximum visual comfort with minimum use of resources
  • Specially developed for the requirements of office workplaces
  • Innovative LED and control technology

LINETIK

Design

"LINETIK shows which possibilities there are today in LED and control technology to provide the user with the maximum lighting comfort. LINETIK is unobtrusive and integrates in every office landscape; nevertheless it is an expressive design statement."
Matt Free, Director F Mark Ltd
"The starting point of our work was the need of the employees to have the correct light for every visual task and to provide this light with resources reduced to the minimum."
Luke Smith-Wightman
"Office lighting today is facing completely new challenges because the environment is continuously changing, resulting in new requirements arising. We only wanted to use the actually necessary resources to fulfil the task in the best possible way."
Simon Fisher, Director F Mark Ltd

LINETIK

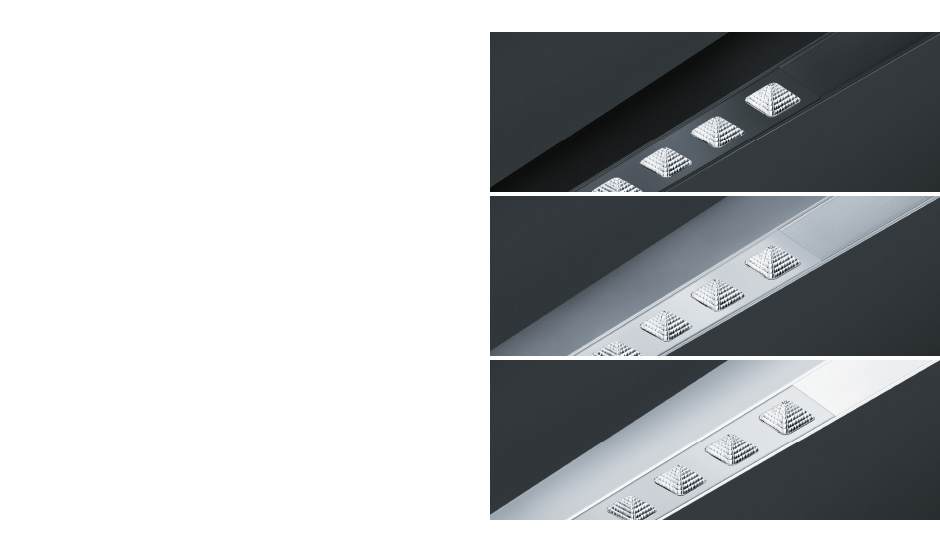

Colour scheme

* pendant luminaire only
Creative freedom

  • For pendant luminaires, the colours for the luminaire, the reflector and the converter housing can all be defined separately
  • LINETIK leaves the choice up to you: a monochrome colour scheme, luminaires with contrasting reflectors or converter housing that matches the colour of the ceiling
  • Select colours using myLINETIK
    • Luminaire: black | white | silver*
    • Reflector frame: black | high gloss aluminium*
    • Converter housing*: black | white | silver

  • Free-standing luminaires in bold black or white

LINETIK

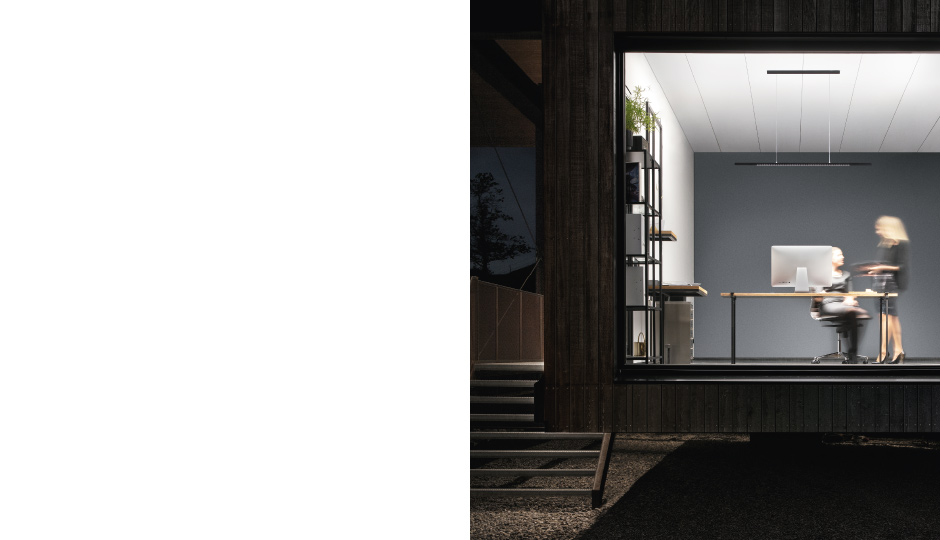

Pendant luminaire

Maximum lighting comfort, minimal dimensions

  • High performance with luminous flux of ~6,000 lm
  • Control light directly using innovative micro-reflector optics
  • Excellent glare control UGR < 16
  • Luminance of 2,000 cd/m²
  • Pleasant ambience thanks to light distribution – 60% indirect and 40% direct

  • Tridonic DC-String technology
    • Current and data transmitted in the cable
    • Separate control of direct and indirect share
  • Cable-free, elegant and flexible

LINETIK

Free-standing luminaire

Double or single workplace:
EN12464 standard-compliant lighting
with a free-standing luminaire

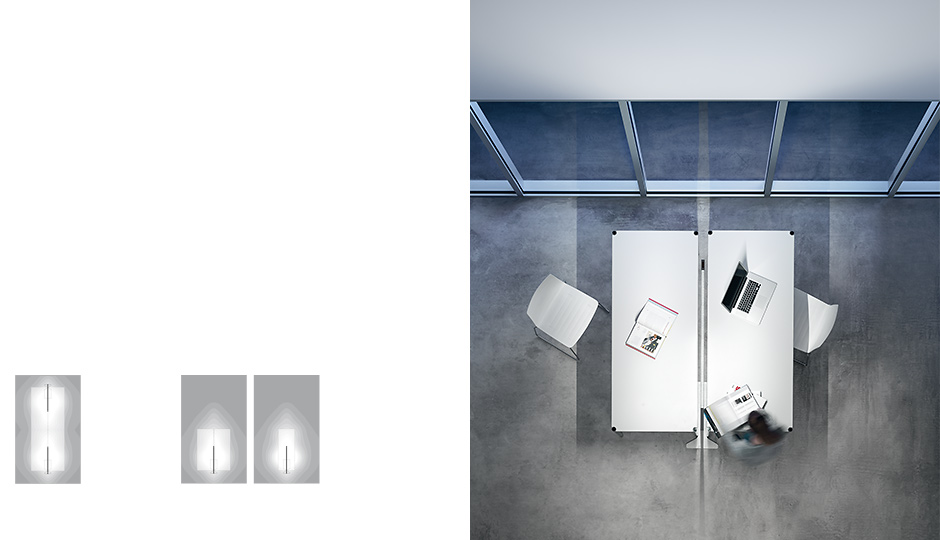

Workplace for six people: even lighting with two free-standing luminaires
Maximum lighting comfort, minimal dimensions


  • The right light for every employee and every workplace
  • Reacts flexibly to changing or unusual room geometries
  • Direct light distribution using newly developed asymmetrical reflector made of composite material
  • Lengthwise asymmetrical light distribution on the table surface
  • Balanced light distribution even at double workplaces
  • Indirect light share 74%, scattered over a wide area on the ceiling
  • Efficiency of 106 to 111 lm/W

  • LINETIK meets the brightness requirements of the EN standard and is the first free-standing luminaire to also meet the uniformity requirements!

LINETIK
