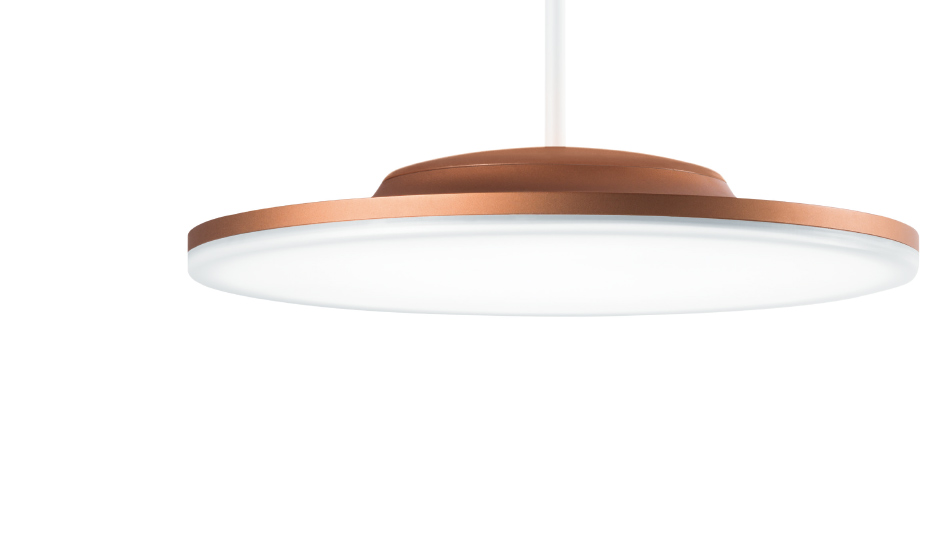

Caela

Wall-mounted, ceiling-mounted and pendant luminaire

More slender design plus greater precision: modular lighting system featuring edge-lit LED technology.

Caela

Design follows function

  • Extremely low-profile, elegant appearance
  • Extraordinarily versatile product range
  • Available in white, matt silver, copper, brass, matt grey and black
  • Switchable or dimmable, luminous flux: ~ 1.100 and 1.500/2.100 lm
  • New, innovative asymmetrical beam pattern in square model,
    especially developed to meet lighting requirements in corridors and staircases

Caela

Design follows function

“Product development of the new CAELA luminaire was triggered by innovative edge-lit technology. The high-precision finish of the luminaire's diffuser material allows for accurate diffusion of the light emitted. At the same time, a low mounting height is made possible by the intelligent arrangement of its components. The product range includes wall-mounted, ceiling-mounted and pendant luminaires. When developing the range, priority was given to a minimum use of tools and to compatibility. In order to create a clear design, preferably without any frame, the housing fades into the background, allowing the light emitting panel to achieve optimum effect. Several CAELA lighting modules can be arranged to form multifaceted lighting sculptures.”

Graft Berlin, 2015

Caela

Light that performs lighting tasks with great precision

Asymmetrical light distribution
The transparent CAELA model illuminates corridors and staircases in conformity with applicable standards: thanks to innovative technology, a small number of wall-mounted luminaires is enough to provide a level of 100 to 150 lux that is required on the floor – without any additional ceiling-mounted luminaires.
Symmetrical light distribution
The opal CAELA model combines Lambert's light distribution, which provides welcoming general lighting, with uniformity in design and functional terms: its light is highly uniform; its opal diffuser reaches right to the edges of the timelessly unobtrusive luminaire.

Caela

One luminaire for any situation

Pendant-mounted
The pendant kit provided as accessory includes
a diffuser, a ceiling rose and a 2000 mm long pendant tube that can be cut to length by the customer as required.
Surface-mounted on ceiling
Round or square, large or small, diffuse or transparent: the mounting height of all models is only 57 mm.
Surface-mounted on wall
No matter what size, light distribution or design: the surface-mounted CAELA protrudes only
57 mm into the room.
Modular lighting system

  • The whole CAELA product range is based on a standard base plate
  • Depending on the model, it can be used to create a round or square luminaire with symmetrical or asymmetrical light distribution
  • It can therefore be mounted on the ceiling or wall without any extra accessories, or modified in size, design or beam pattern

Caela

A highly functional unit

Flat housing:
combines design with optional personalisation

  • Unobtrusive design creates lightweight appearance
  • Only 57 mm high including converter
  • Optimises thermal conditions as heat sink
  • Two designs, each available in two sizes and various colours
  • Ready for adjustment as pendant luminaire

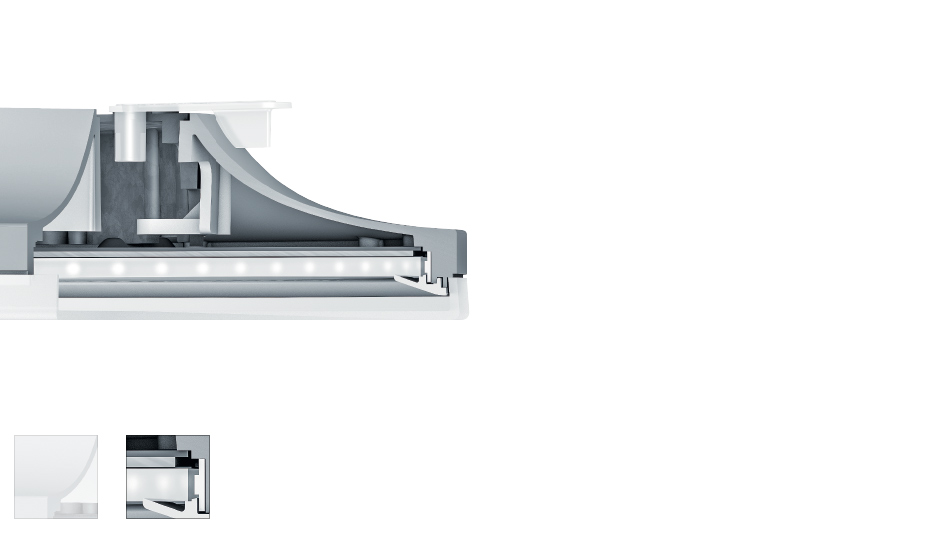

Edge-lit LED technology: provides the basis for the luminaire's low mounting height and application-specific light distribution characteristics

  • Innovative technology; from the luminaire edge,
    light is coupled into a light guide by LEDs
  • Reduces mounting height of luminaire
  • Technological basis for innovative, asymmetrical light distribution
Light guide panel provides two light distribution characteristics


  • Specially textured surface created by intelligent microembossing method
  • Causes symmetrical or asymmetrical light distribution

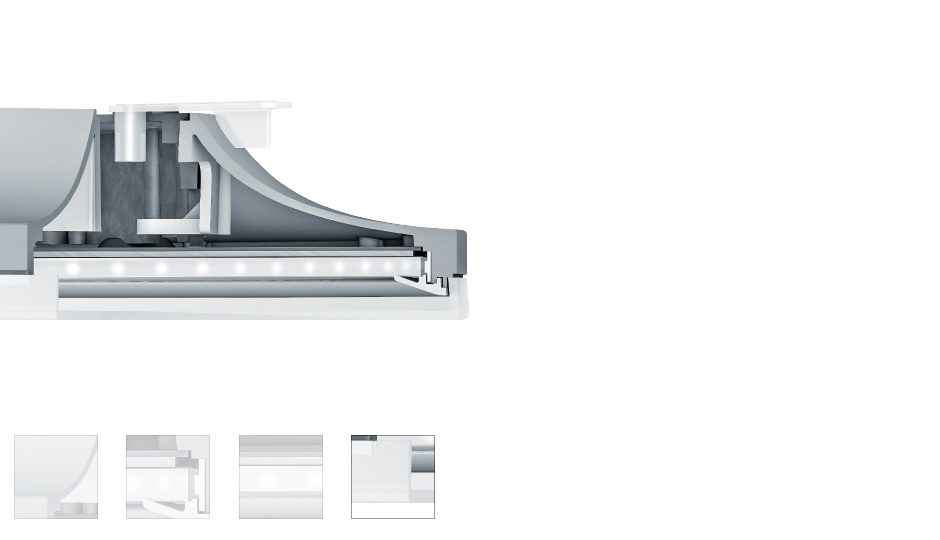

Diffuser: perfect finalisation for optimum application-specific light distribution

  • High-quality PMMA diffuser
  • Opal with symmetrical light distribution
  • Transparent with asymmetrical light distribution
  • For extremely uniform illumination without any visible LED points
  • Provides reliable protection against external impact
Housing
Edge-lit LED technology
Light guide panel
Diffuser

Caela

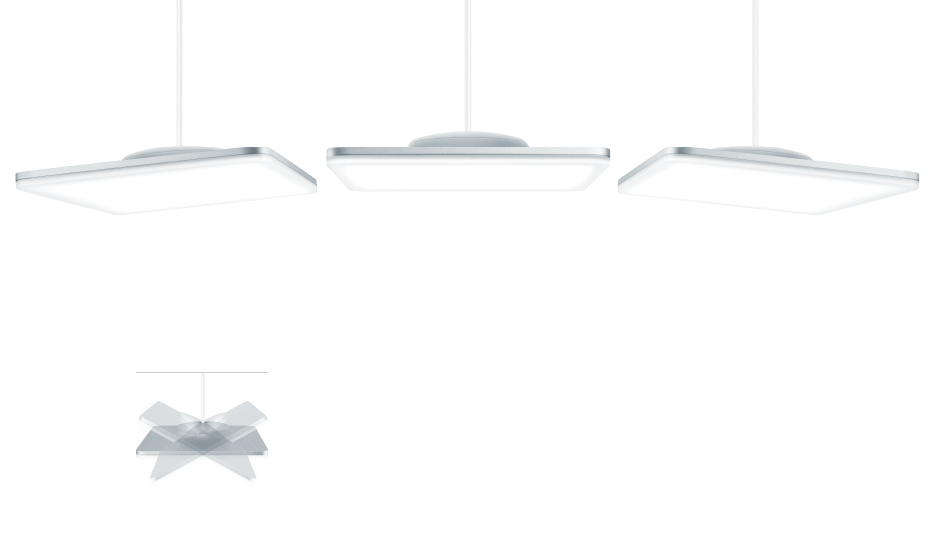

Shapes and design

Variable pendant suspension

The pendant tube, which comes with a length of 2000 mm as standard, can be cut to length on site as required, which makes it very easy to create various different mounting heights. As the luminaires also rotate through 355° and pivot through up to 45°, several luminaires can be configured, if required, to create an arc, a wave or other architectural structures.

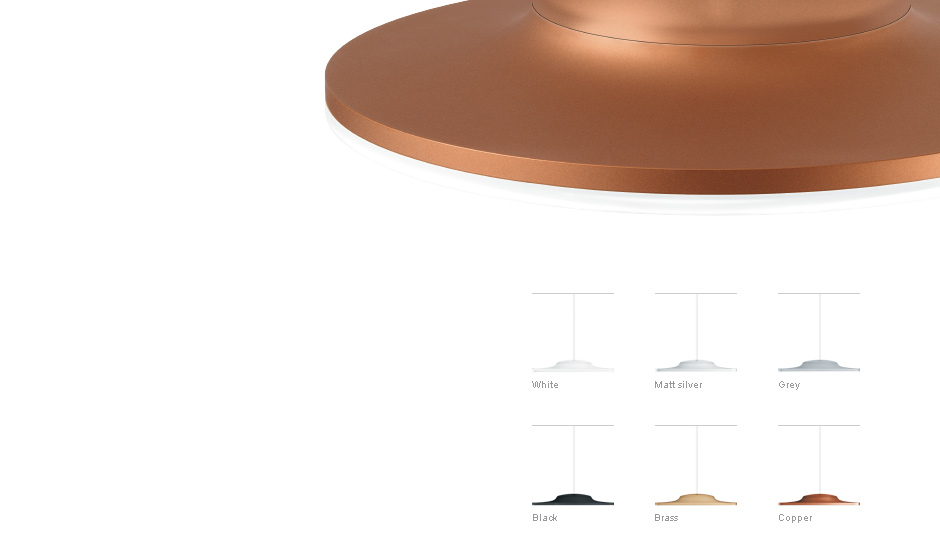

Caela

Adding a personal touch by colour

CAELA meets customers' wishes in terms of colour, too.

  • Upon request, the housing, pendant tube and visible colour ring (in the transparent luminaire) can be provided in different colours
  • Standard colours: white and matt silver
  • Online via myCAELA product configurator: grey, black, brass and copper
  • Other colours available as special designs

Caela

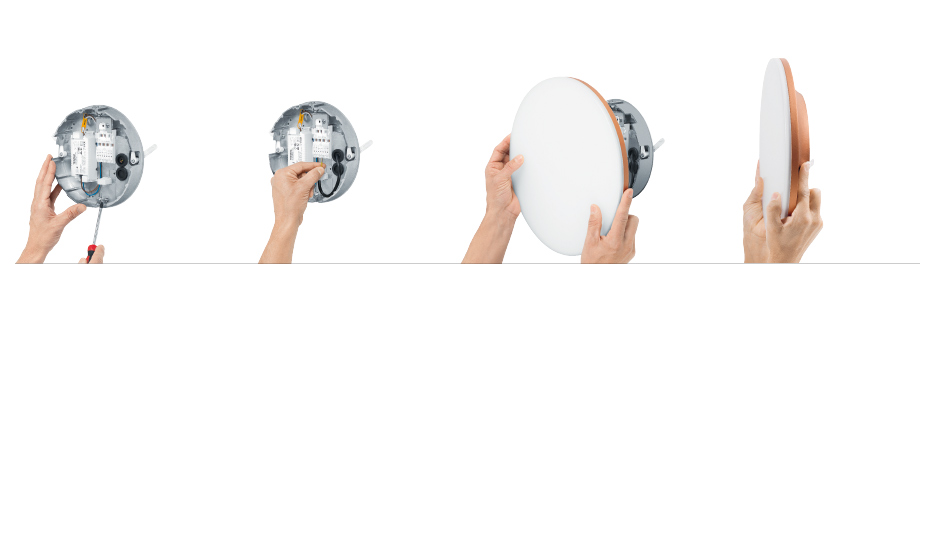

Easy to install

Few components, little effort and perfect time management
  • Design optimised for installation by one person
  • Luminaire is securely fitted in just a few steps
  • Base plate, which is used as standard for all luminaire models, is simple screw-fastened from the front
  • Complete luminaire unit is locked quickly and without any tools via a spring catch mechanism
  • Two additional safety catches ensure vandal-proofness
Close locking mechanism
(pay attention to the indicator)
Upon completion of construction:
Put on luminaire fixture
Luminaire connected to electricity
As early as during the construction phase: Base plate installation (standardised for all CAELA models)

Caela

Wall-mounted, ceiling-mounted and pendant luminaire

Caela
