Krmiljenje razsvetljave

Krmiljenje razsvetljave

From every angle: lighting management meets the needs of various stakeholders

The individual: Combining the pleasant with the useful

Simple operation, convenient ways of intervening in automated operation and optimal amounts of daylight: LUXMATE control systems are built with humans in mind.

Krmiljenje razsvetljave

From every angle: lighting management meets the needs of various stakeholders

Facility managers: Improved safety through work efficiency

Always being able to see the status of an installation at a glance, being given information about faults quickly, and being able to make modifications with relatively little effort: facility managers perform a wide variety of different tasks
and LUXMATE control systems provide perfect assistance.

Krmiljenje razsvetljave

From every angle: lighting management meets the needs of various stakeholders

Electrical consultants and lighting designers: Scope for design preferences

The modular, consistent LUXMATE concept caters well for the designers’ requirements. System limitations are not restrictive; the system’s topology and range of functions ensure optimum scalability. Tried-and-tested software algorithms are available for all applications.

Krmiljenje razsvetljave

From every angle: lighting management meets the needs of various stakeholders

Investors: Profitable success thanks to flexibility

Time is money. This is why many investors are keen to fix the layout and functionality of lighting at as late a stage as possible. With LUXMATE you can remain flexible – in every phase of a project and later during normal operation.

Krmiljenje razsvetljave

Trends in lighting management

Emergency lighting

Synergies create added value
ONLITE luminaires and emergency lighting systems make a perfect match with the LUXMATE LITENET lighting control system. Not only do they use the same DALI control lines, but all luminaires are integrated into the highly functional, tightly monitored system.
Changing colour temperatures

At the right place, at the right time
The right colour temperature has a major impact in terms of whether a product is bought, a work of art fascinates the beholder or whether people feel at ease. With that in mind, Zumtobel has developed a wide range of luminaires and lighting control technologies – from gradually adjustable white tones to dynamic changes of colour temperature and quantity of light.
Use of daylight

The best light is free
People's need to get the ideal quantity of daylight and natural daylight quality results in perfect adjustment of lighting and blinds, allowing them to eliminate glare and avoid the overheating of rooms.
Saving energy

Daily routine
Having an intelligent system work in the background makes it easy to save energy on an ongoing basis. Working hours, people's presence at the workplace and, above all, daylight open up a wide range of saving opportunities. All this helps to reduce CO2 emissions, something which gives buildings credits to obtain environmental certification.

Krmiljenje razsvetljave

1 Saving energy

Due to the latest building measures, for instance in the areas of air-conditioning, lighting or room design, environmentally certified buildings have been verified to have a positive impact on their users and therefore also on the company. Surveys have revealed that the employees' performance and motivation increase whereas absence to due illness decreases. In addition to a highly energy-efficient combination of luminaires and lighting management, Zumtobel also provides hands-on support for obtaining certification. The environmental product declaration (EPD) required for that purpose is available for an ever-growing number of Zumtobel products.

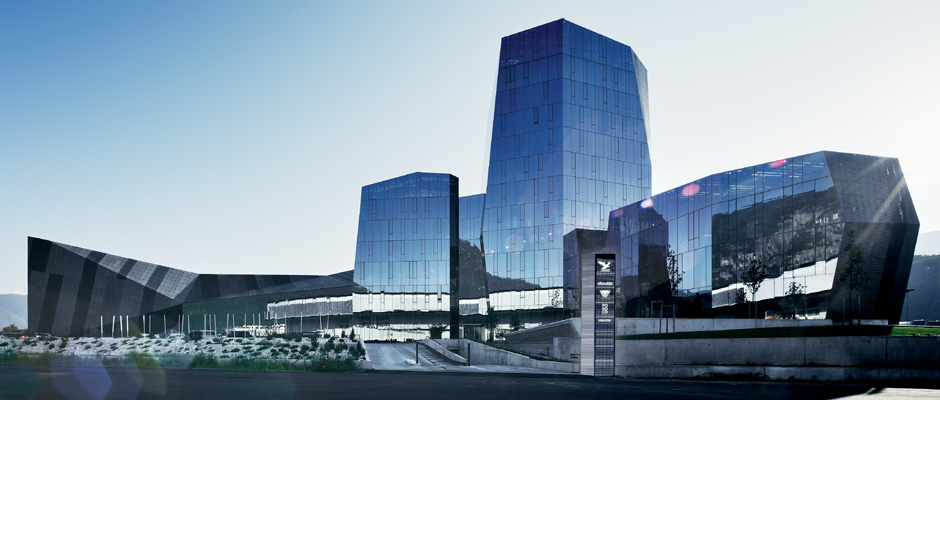

SALEWA Headquarters in Bolzano | IT, 330 tonnes of CO2 emissions less every year: Pre-certified by ClimateHouse Work & Life

Daylight

Presence detection

Time-based management

Luminaires and light sources

In order to save a maximum of energy, all potential savings must be added up and the lighting installation needs to be maintained on an ongoing basis. The result is more independence from energy price trends, and sustainable reduction of costs and CO2 for many years.
  • Using luminaires fitted with advanced electronic control gear with dimming functions reduces energy consumption by some 25 percent
  • Presence detectors or pre-defined switch-on times provide potential savings in the range from 20 to 40 percent
  • Using daylight reduces energy consumption for lighting by as much as 75 percent
  • A building's cooling load is reduced by properly adjusted control of lighting and blinds
Saving energy
Building certification
Combining intelligent strategies

Krmiljenje razsvetljave

2 Using daylight

Architecture and daylight

Large glass façades are an effective tool to allow as much daylight as possible to enter the building. In this context, blinds and thermal insulation become important issues for planners and designers. Nowadays, almost every building is fitted with a control system, and in the case of refurbishments, too, advanced luminaire and lighting control technologies are used increasingly.
People and daylight

Natural daylight and its dynamic changes are essential to make us feel good. Perfect lighting takes varying room situations and people's needs into account. This induces ongoing adjustment to people's individual vision, the visual tasks and duties they have to perform, as well as changes according to the weather, season and time of day.
Light is the elixir of life

Directional sunlight and the sky's diffuse light combine to create dynamic lighting scenes; even the colours of light are based on the 24-hour cycle. Variable light colours and illuminance levels influence the production of hormones. This in turn stabilises people's circadian wake-sleep rhythms, enhancing stimulation, making them feel at ease and enhancing their sense of time.

 Winter

 Summer

Daylight used in five intelligent ways:

1 Makes optimum use of sunlight
2 Prevents distracting glare
3 Preserves a visual link with outdoors
4 Adjusts the room climate in winter and summer alike
5 Makes sure façades look attractive
Automation
Daylight measuring head
Incident daylight
Desired lighting level: constantly 500 lux
Daylight measuring head and
Look Out sensors

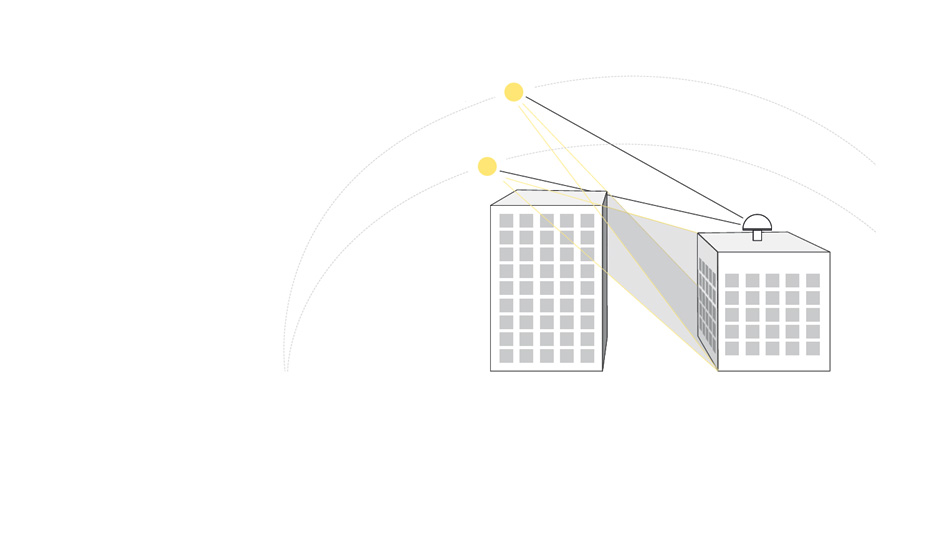

If incident light is captured centrally on the roof of a building or on the actual window frontage, lighting control systems work more accurately and involve less effort than constant-light sensors. Depending on the position of the luminaire, the lighting control system adds sufficient artificial lighting to achieve the desired lighting level.
Using daylight
People and architecture
Automation
Sensors

Krmiljenje razsvetljave

3 Changing colour temperatures

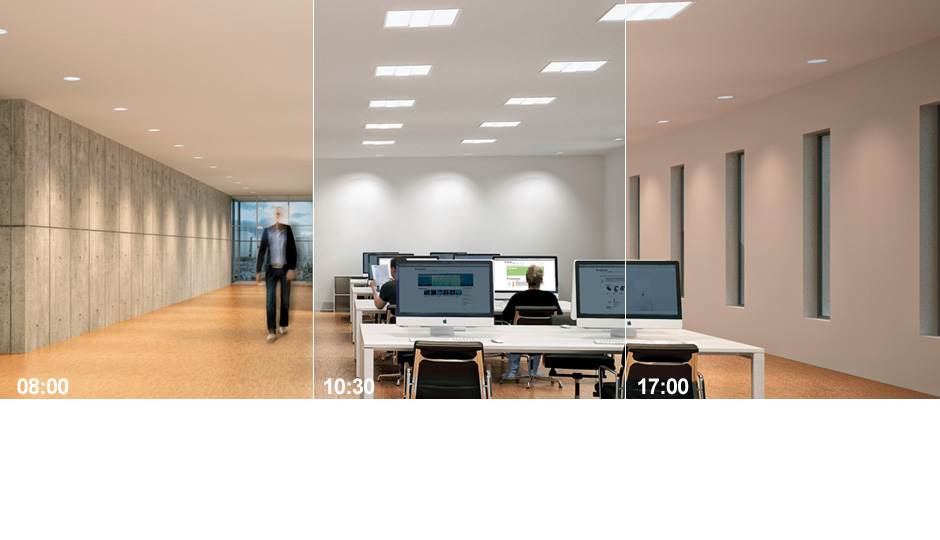

People's inner clocks are stabilised by predefined time lines which create the right light colour and lighting level suitable for any time of day. Subtle changes in white tones suffice to provide stimulation or relaxation. Nowadays, design concepts take the biological effect of light on people's inner clocks more strongly into account. The basis of biologically effective lighting concepts is the effective use of daylight – if daylight is not available, intelligently controlled artificial lighting takes over its functions to the greatest possible extent.
Changing colour temperatures
Application example

Krmiljenje razsvetljave

4 Integrating emergency lighting

Luminaires for general lighting
Emergency luminaires as part of general lighting

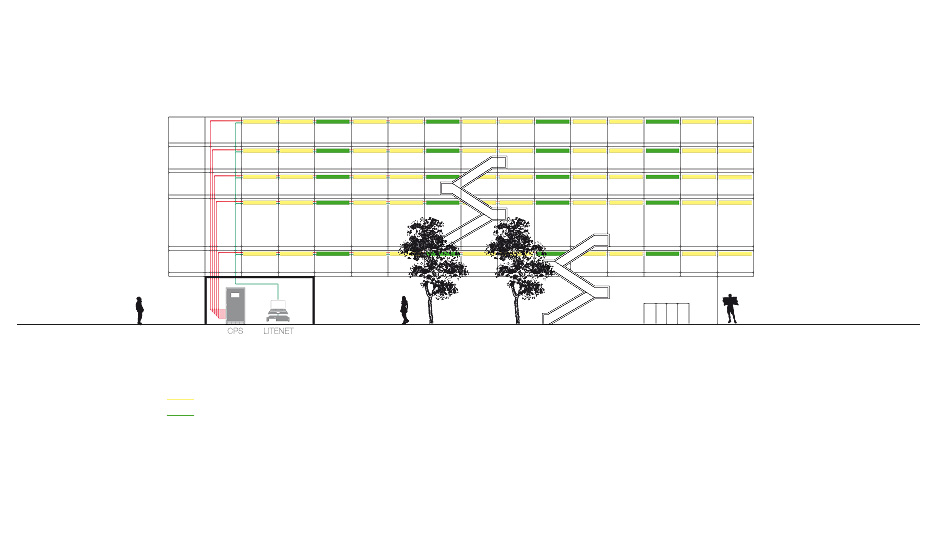

A perfect combination: LUXMATE LITENET and the central ONLITE supply system use the same DALI circuit to ensure trouble-free communication.
Safety is a basic human need and so is light. Where an integrated solution is used, the emergency lighting components remain unobtrusive during normal operation, revealing their true capabilities only in the event of testing or an emergency.
Integration of emergency lighting
Complete solution
Application example

Krmiljenje razsvetljave

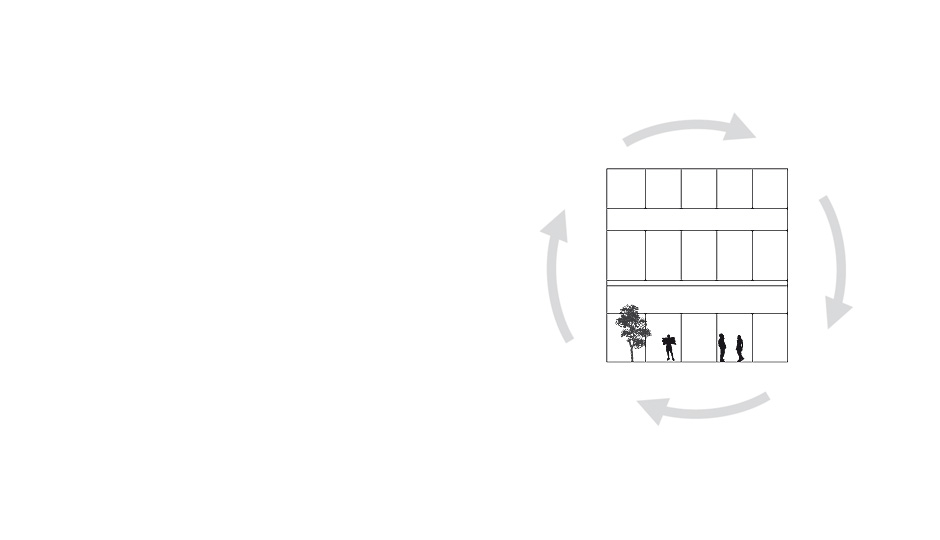

At your side throughout every phase of a project and construction

Optimisation

Maintenance

Modernisation

On-going operations

Services provided

The purpose of building management is to preserve the value and the functional capabilities of a building. Building management systems must therefore adapt themselves to changing uses and support continuous improvement initiatives. Regular maintenance and inspections preserve the required energy efficiency and are mandatory in the case of emergency lighting installations. Newly developed potential technical capabilities and savings can be exploited even in existing projects by adapting the lighting or operating concept for instance. Zumtobel service packages help implement such improvements without disruption in every phase of a building’s life-cycle.

Krmiljenje razsvetljave

System overview

DMX LIGHTING MANAGEMENT
AND MEDIA CONTROL

Dynamic lighting scenarios for external façades
LUXMATE LITENET / PROFESSIONAL
High-end room management system with lighting and blinds control
LUXMATE EMOTION
Lighting management
for several rooms
ZBOX
Plug & Play system
for hotel rooms
LUXMATE BASIC / DIMLITE
Lighting management for individual rooms

Krmiljenje razsvetljave

Light for offices and communication

Key data

  • 8,000 m² of office space divided up between three buildings
  • 1,500 workstations
  • 60% energy saving by using daylight-based management
  • System support provided by trained building services specialists
    and Zumtobel
VHV Group, Hanover | DE

Architects: BKSP Grabau Leiber Obermann & Partner, Hanover | DE
Lighting technology: Lumen³, Munich | DE
Electrical consultants: Taube + Goerz GmbH, Hanover | DE
Lighting solution: LUXMATE LITENET lighting management system, SLOTLIGHT II light line, SCUBA moisture-proof luminaire, PANOS downlight, PHAOS recessed luminaire, LINARIA and TECTON continuous-row systems, LIGHT FIELDS recessed luminaires

Krmiljenje razsvetljave

Light for education and science

Key data

  • 27 different room types
  • Over 200 lecturers
  • Individually stored lighting scenes can be recalled using a magnetic stripe card
  • Daylight-based control and blinds control are precisely tuned to suit lighting conditions in northerly latitudes
Reykjavík University | IS

Architects: Henning Larsen Architects, Copenhagen | DK ARKIS Architects, Reykjavík | IS; Lighting design: VERKIS, Reykjavík | IS
Electrical installations: Rafmiolum hf, Reykjavík | IS
Lighting solution: LUXMATE LITENET lighting management system, ONLITE CENTRAL emergency lighting system, RU-SLIMLIGHT / Z-fourtyfive special luminaire, PERLUCE surface-mounted luminaire, FEW louvre luminaire,
VIVO spotlight

Krmiljenje razsvetljave

Light for presentation and retail

Key data

  • Changing colour temperature over the course of the day
  • Operated and programmed by using EMOTION touch panel
  • Lighting scenes at the touch of a button
Nordsee restaurant, Kassel | DE

Electrical installations: Elektro-Anlagen Hübner GmbH, Nieste | DE
Lighting solution: LUXMATE EMOTION lighting management system, PANOS INFINITY Tunable White downlight, SUPERSYSTEM LED and CARDAN LED recessed luminaires, LED light cove

Krmiljenje razsvetljave

Light for hotels and wellness areas

Key data

  • 5-star hotel on the North Sea coast
  • 79 suites and hotel rooms
  • 1,000 m² spa area
  • Complete solution with convenient lighting scenes for hotel rooms, daylight-based control for publicly used areas and integrated emergency lighting
  • Maintenance under the terms of a Zumtobel service contract

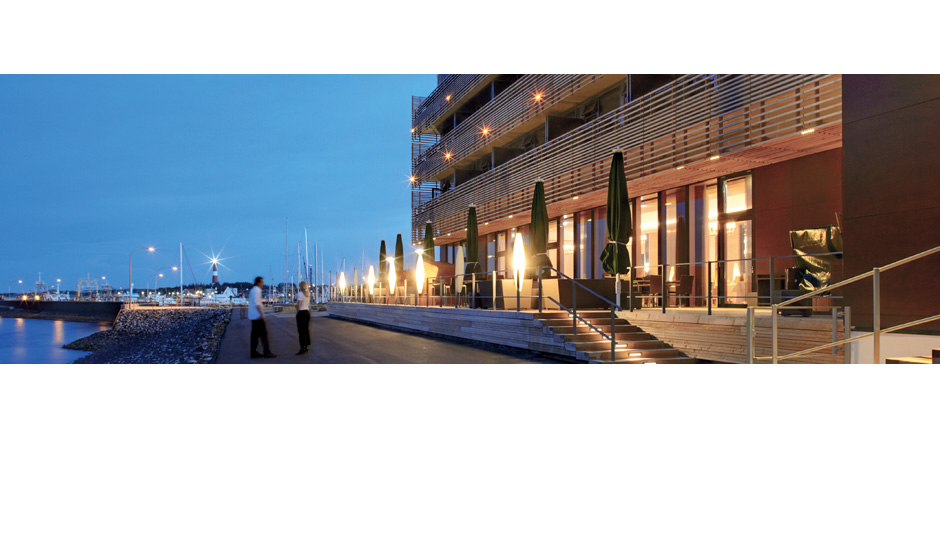

Hotel Budersand Golf & Spa, Sylt | DE

Client: Südern GmbH, Darmstadt | DE
Architect: dko Architekten, Patrik Dierks, Berlin | DE
Interior design: Studio Jan Wichers, Hamburg | DE
Lighting design: Hamburg Design, Harry Mayer, Hamburg | DE
Lighting solution: LUXMATE LITENET lighting management system, ZBOX lighting control systems and CIRCLE control points, ONLITE central-battery system

Krmiljenje razsvetljave

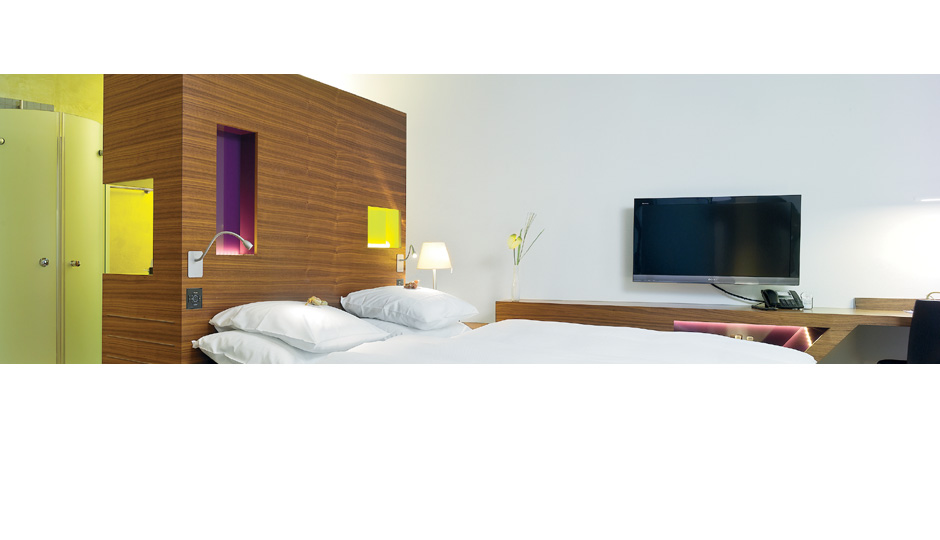

Light for hotels and wellness areas

Key data

  • Business hotel at Lake Zurich
  • 60 hotel rooms, 5 seminar rooms, restaurant
  • Complete solution featuring pleasant lighting scenes for the hotel rooms, daylight-based control for the common areas, and integration of emergency lighting plus Zumtobel remote maintenance
Hotel Belvoir, Rüschlikon | CH

Client: Heinz P. Meier, Hotel Belvoir, Rüschlikon | CH
Interior design: architektur & designbüro, Zurich | CH
Electrical consultants: enerpeak salzmann ag, Dübendorf | CH
Lighting design: Lichtkompetenz, Zurich | CH; Lighting solution: LUXMATE PROFESSIONAL lighting management system, ZBOX lighting control systems and CIRCLE control points, ONDARIA circular luminaire, ONLITE central battery system, ONLITE escape sign and emergency luminaires

Krmiljenje razsvetljave

Light for art and culture

Key data

  • New building with approximately 3,000 m² of exhibition space
  • Room height 8.20 m
  • 195 skylights with diameters ranging from 1.5 to 2.5 m
  • Daylight-based control of artificial lighting and blinds
Städel Museum, Frankfurt am Main | DE

Architect: schneider+schumacher, Frankfurt am Main | DE
Lighting design: Licht Kunst Licht AG, Bonn/Berlin | DE
Electrical consultants: Delta-Tech, Weiterstadt | DE
Electrical installations: Imtech, Rüsselsheim | DE
Lighting solution for new building: LUXMATE PROFESSIONAL lighting management system, special LED solution for skylights with ARCOS LED spotlight

Krmiljenje razsvetljave

Light for health and care

Key data

  • General hospital with 7 specialist departments with inpatient beds, 2 institutes and an acute geriatric day clinic
  • 3,500 luminaires and 500 blinds
  • 60% energy saving thanks to lighting refurbishment with intelligent lighting control system

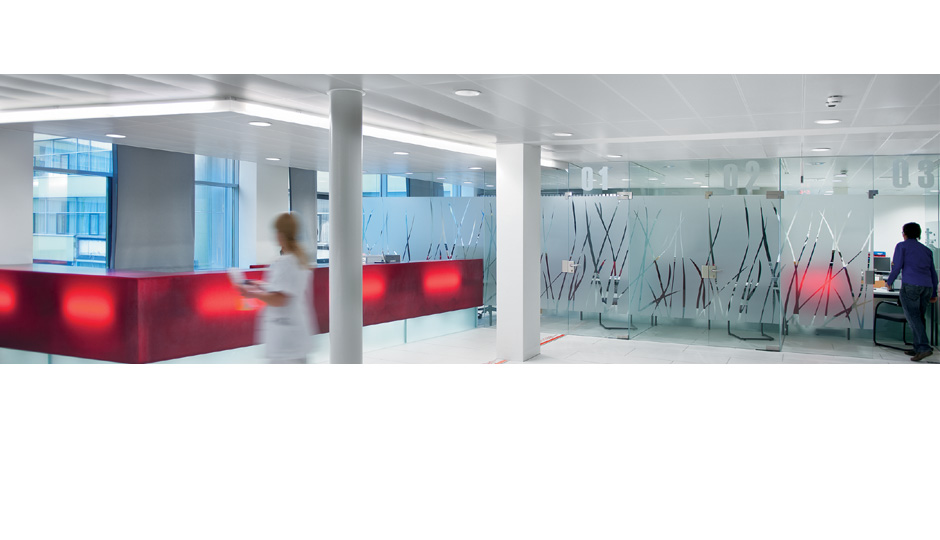

Gmunden Regional Hospital | AT

Architecture and lighting technology: Fasch & Fuchs ZT GmbH, Vienna | AT
Electrical consultants: TB Wanger & Partner ZT GmbH, Linz | AT
Lighting solution: LUXMATE LITENET lighting management system, ONLITE central-battery system, PURELINE II single-bed luminaire, CONBOARD medical supply unit, PANOS downlight, TECTON continuous-row system, SLOTLIGHT light line

Krmiljenje razsvetljave

Light for industry and engineering

Key data

  • Lighting refurbishment in machine shop, floor area of 165 × 16 m
  • Energy consumption before refurbishment: 72.76 kWh/m²a
    Energy consumption after refurbishment: 5.96 kWh/m²a
  • Just three components for daylight-based control:
    dimmable luminaires, light sensors and LUXMATE DIMLITE lighting control units
Ferag AG conveyor and processing systems, Hinwil | CH

Electrical installations: Ferag AG, Hinwil | CH
Lighting solution: LUXMATE DIMLITE lighting management system with ED-EYE Look Out sensors, TECTON continuous-row system

Krmiljenje razsvetljave

Light for industry and engineering

Key data

  • 2,800 controlled luminaires in total
  • Annual energy cost savings of € 527,900
  • Annual maintenance cost savings of € 20,994

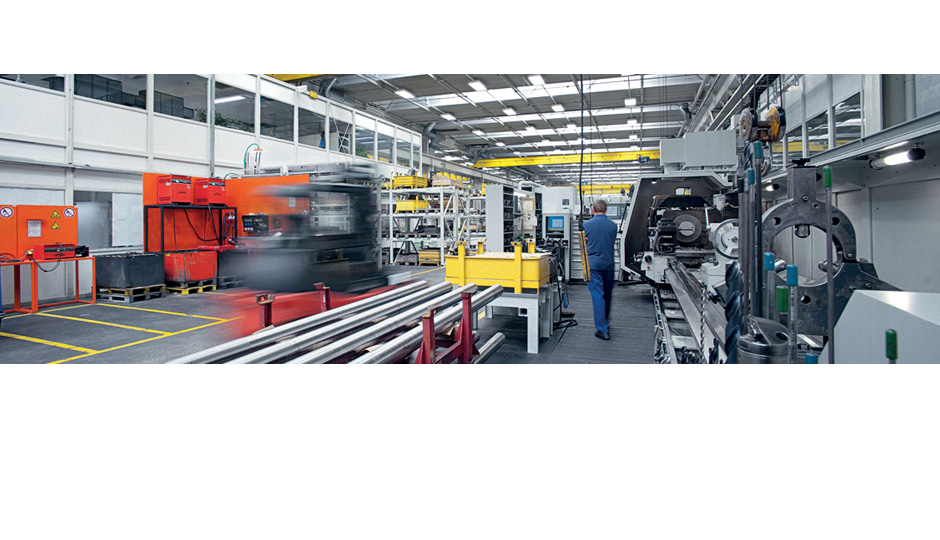

Engel Werke bay refurbishment, St. Valentin, Schwertberg and Dietach | AT

Electrical installations: G. Klampfer Elektroanlagen GmbH, Leonding | AT
Lighting solutions: LUXMATE LITENET lighting management system with automation processor, server, external daylight sensor, gateway and software, VALUEA high-bay luminaire on TECTON trunking

Krmiljenje razsvetljave

Light for façades and architecture

Key data

  • Individually programmable colour set-ups and transitions
  • Desired stage setting can be recalled at the press of a button
  • Can be combined with automatic timers
Gaislachkoglbahn, Sölden | AT

Architect: obermoser arch-omo zt gmbh, Innsbruck | AT
Electrical consultants: Falkner & Riml, Sölden | AT
Lighting solution: HEDERA media luminaire with DMX controller for the façade; PERLUCE moisture-proof diffuser luminaire, KAVA LED wall-mounted luminaire, COPA high-bay luminaire, SLOTLIGHT II light line, BEGA 6876 wall-mounted luminaire

Krmiljenje razsvetljave

Dodatne informacije za Krmiljenje razsvetljave
+

Reference

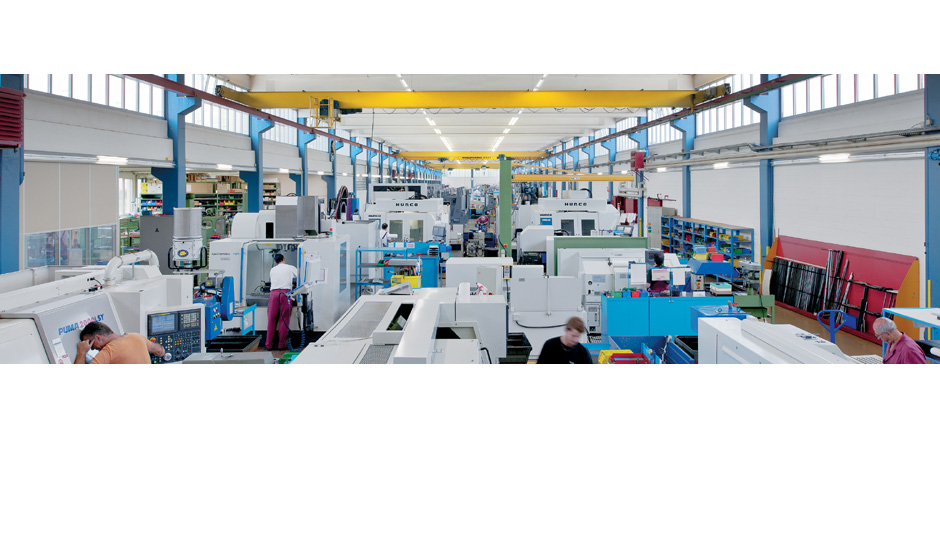

Ferag AG
Hinwil, Švica
Investitor: Ferag AG, transportni in obdelovalni sistemi, Hinwil (CH)
Električne instalacije: Ferag AG, Hinwil (CH)
Povečanje vrednosti stavbe podjetja

V proizvodni dvorani podjetja Ferag AG se izdelujejo, priključujejo in preverjajo transportni in obdelovalni sistemi za industrijo tiskanih medijev. Še pred nekaj meseci se je uporabljala zastarela razsvetljava: Nezadostna osvetlitev, pogosti izpadi svetil ter zamudni postopki vzdrževanja so pogosto motili potek dela in povzročali visoke stroške.

Prednostni argument za prenovo razsvetljave je bila želja po optimalnih svetlobnih razmerah. Pri starih svetilkah niso bili več sprejemljivi tudi stroški nabave in vzdrževanja ter energijska poraba. Nova rešitev zdaj ustreza osnovnemu načelu podjetja za varčno ravnanje z viri in obvezi za trajnostni razvoj.

Izhodišče za načrtovanje razsvetljave so bila različna delovna območja v dvorani in želja po vključitvi dnevne svetlobe. V sprednjem delu so postavljeni CNC-stroji z zasloni, drugje se montirajo mehanski deli naprav. Svetlobni trak TECTON se z različnimi optikami uporablja za različne delovna opravila. Krmilnik osvetljenosti DIMLITE izravnava količino dnevne svetlobe, ki se spreminja čez dan. Senzorji "Look out" z linijo pogleda proti sprednjemu steklu zaznavajo količino naravne svetlobe. Če se z dnevno svetlobo ne doseže svetilnost, ki je bila določena v pripravljalnem obdobju, se svetilke zatemnijo na ustrezen nivo. Na ta način se poveča vidljivost in zagotovi minimalna energijska poraba: Prenova razsvetljave se amortizira v dobrih dveh letih.

Zumtobel. Svetloba.

share it

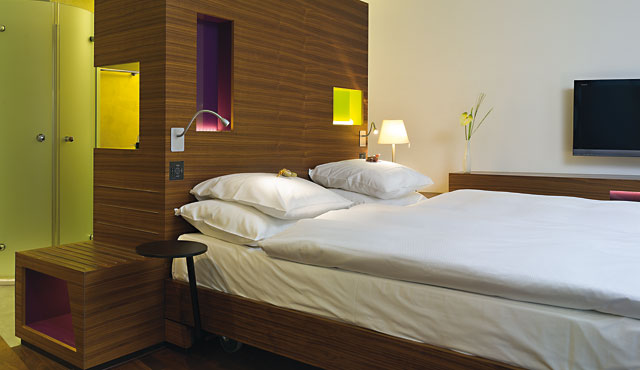

Hotel Belvoir
Rüschlikon, Švica
Investitor: Heinz P. Meier, Hotel Belvoir, Rüschlikon (CH)
Arhitekt: architektur & designbüro, Zürich (CH)
Načrtovanje razsvetljave: Lichtkompetenz, Zürich (CH)
Električni načrti: enerpeak salzmann ag, Dübendorf (CH)
Tehnika mora pomagati, ne oteževati

Če investitor prihaja s področja tehničnih znanosti, oblikovalka notranjih prostorov ima rada vznemirjenje, hotelir pa je izkušen praktik, potem nastane hotel, kot je Belvoir. Hotel, ki sledi obliki bližnjega ledenika, kar združuje z veličastnim pogledom na jezero Zürichsee.

Na tej osnovi je zasnovano tudi krmiljenje razsvetljave. Investitorjem in bodočim gostiteljem vedno znova spodleti v fazi načrtovanja v različnih vlogah: Pri testiranju gostov glede prijaznosti za uporabnike; pri lastnikih, ki jih zanimajo nižji stroški vzdrževanja, prihranek energije in enostavno vzdrževanje.

ZBOX je zaprt sistem, ki omogoča krmiljenje posameznih hotelskih sob in se prilagodljivo odziva na želje po spreminjanju. Večfunkcijska tipkala CIRCLE so tako enostavna, da je gostom takoj jasno, kako poteka upravljanje. S pritiskom na tipko izbere predhodno nastavljene svetlobne scene. Vodoravne zavese se centralno krmilijo z merilno glavo dnevne svetlobe, lahko pa se tudi ročno dvigajo in spuščajo. Ko soba še ni zasedena, se žaluzije samodejno spustijo in tako preprečujejo segrevanje sobe. Z vstavljanjem hotelske kartice se samodejno aktivira svetlobna scena „Welcome“. Za restavracijo je programirana jutranja, opoldanska in večerna svetlobna scena, katere svetlost se lahko povsem enostavno prilagodi z uporabniškim vmesnikom CIRIA, ki spominja na iPod. Z enega mesta se upravljajo sistemi krmiljenja razsvetljave, sistem zasilne razsvetljave in svetilke zasilne razsvetljave. Čim manj vmesnikov je prisotnih, toliko enostavneje in hitreje se lahko zažene sistem.

Zumtobel. Svetloba.

share it


Svetlobna rešitev

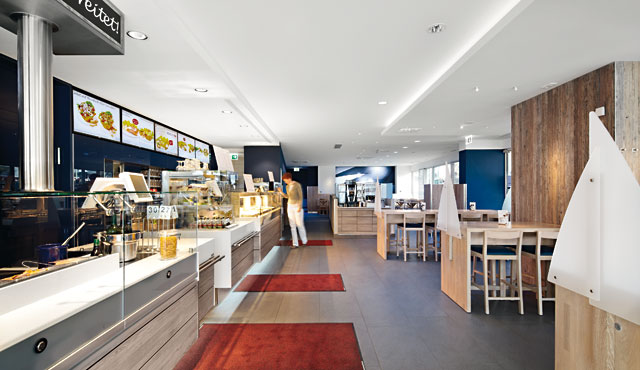

Podružnica Nordsee
Kassel, Nemčija
Investitor: Podružnica Nordsee, Kassel (DE)
Električni načrti: Elektro-Anlagen Hübner GmbH, Nieste (DE)
Razveseljiva učinkovitost

Za dodatno spodbudo geslu „Severno morje. Alternativa.“ je bila restavracija v mestu Kassel temeljito sanirana. Skupaj z notranjo opremo je bila v celoti prenovljena tudi razsvetljava.

Celotna restavracija se je preuredila na sistem LED, barvne temperature v prostoru za goste zdaj sledijo naravnemu vzorcu iz narave. Zagon krmiljenja razsvetljave je izvedlo servisno osebje podjetja Zumtobel, ki je prav tako seznanilo zaposlene z inovativnim konceptom razsvetljave in načinom upravljanja.

Jutro se v svetlobno tehničnem smislu začne z enostavnim zasukom centralnega stikala na ključ. Sistem je takoj na voljo za pripravo prave svetlobe z visoko osvetljenostjo. Za goste se dan začne s toplimi barvnimi temperaturami, ki spominjajo na vzhajanje sonca. Opoldne je restavracija zavita v razpršeno belo barvo dnevne svetlobe. Zvečer krmiljenje razsvetljave EMOTION poskrbi za svetlobo, kakršna nastane pri "pogrezanju" sonca v morje: Rdeči barvni odtenki vabijo goste, da v miru ponovno uživajo. Neodvisno od dnevnega časa skrbijo vgradne svetilke LED in svetlobni LED oboki za osvežujoče akcente. V proizvodnih področjih se ne spreminja barva svetlobe, temveč nivo svetilnosti splošne razsvetljave, ki se prilagaja posameznim dejavnostim. Prednosti LED tehnologije, med katere prištevamo manjše toplotne izgube in s tem povezane nižje stroške hlajenja za živila, krmiljenje razsvetljave LUXMATE EMOTION tako povezuje z najvišjo gostoljubnostjo. Zahvaljujoč sistemu EMOTION je izredna tudi udobnost upravljanja. Pri večernem zaklepanju s stikalom na ključ se restavracija potopi v rdečo svetlobo, ki ustreza celostni grafični podobi podjetja.

Zumtobel. Svetloba.

share it


Svetlobna rešitev
VHV
Hannover, Nemčija
Investitor: Hannoversche Lebensversicherung AG, Hannover (DE)
Arhitekt: Architekten BKSP Grabau Leiber Obermann & Partner, Hannover (DE)
Načrtovanje razsvetljave: Lumen³, München (DE)
Električni načrti: Taube + Goerz GmbH, Hanover (DE)
Fotografije: Andrea Flak
Prihodnost se začenja danes

Delovno mesto prihodnosti je na glavnem sedežu zavarovalnice Hannoverschen Lebensversicherung AG že postalo resničnost. Izredno visoko učinkovite zgradbe s trojno zasteklitvijo in fasadnimi elementi z visoko stopnjo toplotne izolacije pokrivajo svoje močno znižane potrebe po energiji z zemeljskimi sondami, toplotnimi črpalkami in toplovodnim omrežjem.

Stranka si je zaželela visoko učinkovito pisarniško zgradbo z maksimalno prilagodljivostjo, da bo v prihodnosti lahko kar najbolje izvajala pričakovano veliko število sprememb v prostorski razporeditvi. Stranka se je oglasila pri podjetju, ki omogoča zunanje krmiljenje razsvetljave, uporablja program Facility Manager ter izvaja vzdrževalna dela.

Vse svetilke in žaluzije v tridelnem kompleksu zgradb se krmilijo s sistemom krmiljenja razsvetljave LITENET, ki je osnovan na protokolu TCP/IP. Vse nastavitve ter spremembe v sistemu se lahko izvajajo iz centralnega mesta. V ta namen je sistem vgrajen v OPC-vizualizacijo za celotno zgradbo. Svetilke DALI s posameznim naslavljanjem se prilagodljivo odzivajo na spremembe.

Razpoložljiva dnevna svetloba se meri s centralno merilno glavo dnevne svetlobe. Lamelne zavese s funkcijo odklanjanja svetlobe, ki sledijo položaju sonca, se premikajo v ustrezen položaj. Nivo zatemnitve vseh posameznih svetilk, ki je potreben za konstanten nivo osvetlitve, se vsako minuto ponovno izračuna in nastavi. Poleg tega javljalniki prisotnosti zmanjšajo čase obratovanja svetilk v skladu s prisotnostjo zaposlenih. Zaposleni imajo možnost, da z brezžičnim daljinskim upravljalnikom prilagodijo svetlobno sceno svojim osebnim potrebam – povsem neodvisno od ožičenja v zgradbi.

Zumtobel. Svetloba.

share it


Svetlobna rešitev

Pustite se navdihniti

Zumtobel Newsletter
Vpišite naslov vaše elektronske pošte in mesečno boste neposredno v vaš poštni predal prejeli informacije o navdihujočih svetlobnih rešitvah in vse ostale informacije v zvezi s podjetjem Zumtobel.

Komentarji / Vprašanja?

Hvala!

DRŽAVA
SOCIAL MEDIA

LLP

Partnerji za svetlobne rešitve

Več uspeha s pomočjo profesionalnih in učinkovitih svetlobnih rešitev: Podjetje Zumtobel izbrane električarje obvešča, podpira in usposablja na področju ravnanja s svetlobo.
na portal LLP

LCP

Lighting Competence Program

Partnerski program podjetja Zumtobel za načrtovalce elektroinštalacij je naravnan tako, da povezuje vaše in naše kompetence, s čimer lahko izčrpate potenciale svetlobe, hkrati pa vam poenostavi načrtovanje v vsakdanu.
na portal LCP

LDP

Lighting Design Program

Ta partnerski program podjetja Zumtobel je bil razvit za arhitekte, ki oblikujejo s svetlobo in v ta namen tukaj dobijo navdih, podporo in informacije.
na portal LDP
Več o programih
